CF8M Stainless Steel 3 way ball valve T type and L Type Flow Control
CF8M Stainless Steel 3 way ball valve T type and L Type Flow Control
CF8M Stainless Steel 3 way ball valve T type and L Type Flow Control
CF8M Stainless Steel 3 way ball valve T type and L Type Flow Control
CF8M Stainless Steel 3 way ball valve T type and L Type Flow Control
CF8M Stainless Steel 3 way ball valve T type and L Type Flow Control
Specifications
Model Number :
YH-3WB
Certification :
CE, ISO9001:2008
MOQ :
20pcs
Price :
USD15 to USD65
Payment Terms :
L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability :
50 tons/month
Delivery Time :
40 days
Packaging Details :
Neutral Carton Box
Structure :
Three Way
Flow Control type :
T Type and L Type
Material :
Stainless Steel 304 and Stainless Steel 316
Thread Type :
BSP, BSPT, NPT, DIN2999, G Thread
Pressure :
PN63
Application Medium :
Water, Oil, Gas
Description

CF8M Stainless Steel 3 way ball valve "T" type and "L" Type Flow Control

Product Description

This side entry 3 way ball valve offers diverting and mixing flow patterns and often eliminates the need for two valves. The full port design is easily automated and is available with various seat materials. The bolt on thread make for easy seat changes as necessary to accommodate your service. Easily automated!

When ports “A” and “B” are the inlets, and port “C” is the out-let, the valve becomes a mixing valve. With minor variations in position 2 the percentage of components at “A” and “B” can be varied to the outlet “C”. This has been successfully applied to hydronic systems.
It may not be possible to isolate the ports from one another in any position. If the valve is in position 1, and the pressure at port “B” is significantly higher than port “A”, the ball may be forced off the seat allowing mixing from all ports. Whether or not this is a problem depends on the application and its sensitivity to unwanted mixing.

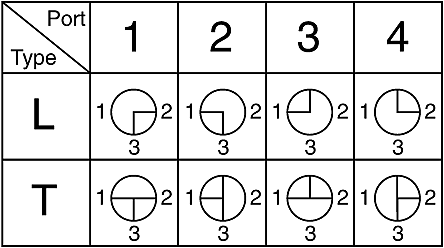

Flow Control Pattern
CF8M Stainless Steel 3 way ball valve
Specification
CF8M Stainless Steel 3 way ball valve
Parameters
SIZE D L C H D1 M φ1 A S U
1/2" 12.7 75 9 68 116 42 6 10 33 37.5
3/4" 16 85 9 73 116 42 6 10 39.5 42.5
1" 20 100 11 83 152 42 7 12 50 52
1 1/4" 25 115 11 89 152 50 7 12 50.5 57.5
1-1/2" 32 124 14 97 187 50 9 16 57 62
2" 38 147 14 106 187 70 9 16 65 75
