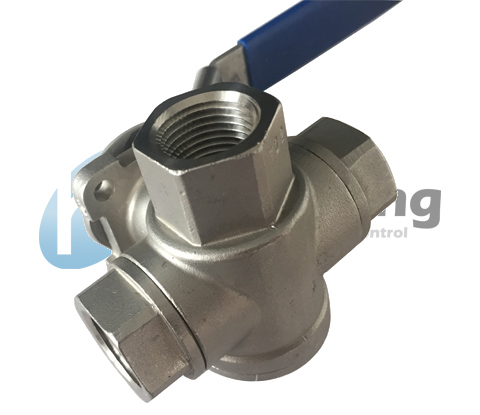

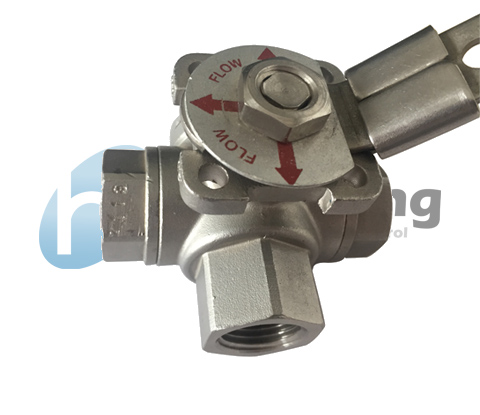

3 Way Low Pressure Ball Valve 316 Stainless Steel Npt / Bsp Threaded
3 Way Low Pressure Ball Valve 316 Stainless Steel Npt / Bsp Threaded
3 Way Low Pressure Ball Valve 316 Stainless Steel Npt / Bsp Threaded
3 Way Low Pressure Ball Valve 316 Stainless Steel Npt / Bsp Threaded
Specifications
Model Number :
3 WBV
Certification :
ISO9001 & CE
MOQ :
10
Price :
USD 26.38-29.33 dollars
Payment Terms :
Western Union, , T/T
Supply Ability :
20 tons per month
Delivery Time :
40 days
Packaging Details :
cartoon or wooden box
Body material :
Stainless Steel 316/304
Thread type :
npt, bspp, bspt
Handle Color :
Blue/Red
Working pressure :
6.9 Mpa
Certificate :
CE&ISO 9001
Connection type :
Threaded
Description

3 Way Low Pressure Ball Valve 316 Stainless Steel Npt / Bsp Threaded

1 Main material SS304/316
2 Working pressure 1000 PSI
3 Working Temperature -20-240℃
4 Connection type Butt welding, Thread, Socket welding
5 Certificate ISO 9001/CE
6 Size 1/4" to 4"
7 Thread type NPT, BSP, BSPT
8 Bore type

Reduced bore

Material and specification

Item ITEM Material
1 BODY CF8M
2 GLAND NUT 304
3 FLOW INDICATION PLATE ALUMINUM
4 STEM NUT 304
5 LOCKING 304
6

HANDLE

 304
7 PLASTIC COVER PLASTIC
8 STEM 304
9 STEM PACKING PTFE
10 STEM SEAL PTFE
11 CAP CF8M
12 BODY SEAL PTFE
13 BALL CF8M
14 BLIND CAP CF8M
15 BLIND CAP PLASTIC


3 Way Low Pressure Ball Valve 316 Stainless Steel Npt / Bsp Threaded


SIZE D L C H D1 M Φ 1 A S U
1/2" 12.7 75 9 68 116 42 6 10 33 37.5
3/4" 16 85 9 73 116 42 6 10 39.5 42.5
1" 20 100 11 83 152 50 7 12 50 52
1-1/4" 25 115 11 89 152 50 7 12 50.5 57.5
1-1/2" 32 124 14 97 187 70 9 16 57 62
2" 38 147 14 106 187 70 9 16 65 75

3 Way Low Pressure Ball Valve 316 Stainless Steel Npt / Bsp Threaded

3 Way Low Pressure Ball Valve 316 Stainless Steel Npt / Bsp Threaded

Features:

1.Investment casting body

2.Adjustable stem packing

3.Blow out proof stem

4.100% leakage tested at 1000psi air under water

5.Handle operated, or butterfly handle operated.

6.Locking device is available

Competitive Advantages:

1.OEM/ODM is applicable

2.Offer free sample for testing

3.100% test before delivery

4.Our products is guaranteed within 18 months after delivery.

5.We are factory manufacturer, not trading company, so our price is very competitive & reasonable to win the market.

6.We pay much attention to technology renovation, process improvement, structure optimization and quality improvement.

7.We have excellent after-sales service system, providing timely and optimal service, which help you to win the market.

8.As a factory, we have the absolutely advantage to control the quality & delivery.
