58mm Stainless Steel Woven Wire Rope Mesh For Zoo Enclosure Slope Protection
58mm Stainless Steel Woven Wire Rope Mesh For Zoo Enclosure Slope Protection
58mm Stainless Steel Woven Wire Rope Mesh For Zoo Enclosure Slope Protection
58mm Stainless Steel Woven Wire Rope Mesh For Zoo Enclosure Slope Protection
Specifications
Brand Name :
Yuhan
Model Number :
Yuhan-B-002
Place of Origin :
China
Certification :
SGS
MOQ :
50 quare meters
Price :
USD5-20/square meter
Packaging Details :
Wooden Pallet
Delivery Time :
10 days
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
1000 square meters per day
Product Name :
Rope Mesh
Usage :
Safety Fence
Color :
Silver or Black
Material :
SS 316
Cable Diameter :
3.2mm
Mesh Size :
58mm
Mesh Shape :
Diamond
Sample :
Free
Description

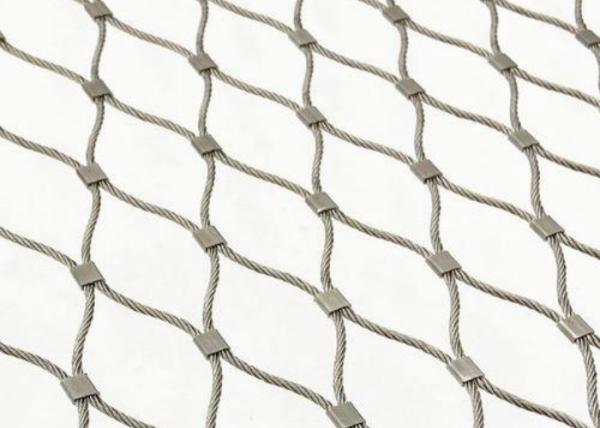

Stainless Steel Woven Wire Rope Mesh For Zoo Enclosure Slope Protection

Stainless steel wire rope mesh is composed of 304, 304L, 316, 316L process is divided into hand-woven, closed mouth, open buckle.Assembled by stainless steel wire rope with 100% seamless rope ferrule. Optimal stretch at 60°angle.easily install by special border design.

Wire diameter:1.0-4.0mm(Customized)1.2mm,1.5mm,2.0mm,2.5mm,3.2mm,4mm

Mesh size:20-300mm

Table 1: Wire Rope Ferrule Mesh Material Composition Table
Type C (%) Si (%) Mn (%) Cr (%) Ni (%) S (%) P (%)
304 ≤ 0.07 ≤ 1.0 ≤ 2.0 17.0–19.0 8.0–11.0 ≤ 0.03 ≤ 0.035
304L ≤ 0.03 ≤ 1.0 ≤ 2.0 17.0–19.0 8.0–12.0 ≤ 0.03 ≤ 0.035
316 ≤ 0.08 ≤ 1.0 ≤ 2.0 16.0–18.5 10.0–14.0 ≤ 0.03 ≤ 0.035
316L ≤ 0.03 ≤ 1.0 ≤ 2.0 16.0–18.0 12.0–15.0 ≤ 0.03 ≤ 0.045

The application of stainless steel rope mesh

1. Steel Mesh Balustrade - bridge, stair, balcony, path

2. Cable Mesh - Excellent Solution to Safety

3. Safety Net - Structural Measure to Prevent Suicide

4. Helipad Safety Net - Modular Heliport Webbing

5. Cable Zoo Mesh - Solution to Enclosing Most Animals

6. Aviary Netting - Lightweight, Durable and Long Lasting

7. Green Facade - Cable System for Most Climbing Plants

Buckle type

Generally, there are two types of buckle: one is closed-type buckle and the other is open-type buckle.

Features of closed type: the mesh has multiple steel wire ropes combined together, and the closed buckle is relatively stronger, but there are multiple joints at one end of the closure.

Open-type features: the whole mesh can be made with a steel wire rope, which is convenient for installation and has a beautiful overall effect.

Woven type

The stainless steel wire rope is woven by hand from the left to the right, which integrates the breaking force and toughness of the wire rope to the mesh surface. The whole mesh is integrated into one, which is durable, strong in corrosion resistance, beautiful and clear, and meets the use requirements of different environments. Generallyfor animal enclosures in zoo applications because it is easier to see through it when viewing the animals
