Anti Aging Aviary Mesh Effectively Reduces Maintenance Pressure For Ecological Parks
Anti Aging Aviary Mesh Effectively Reduces Maintenance Pressure For Ecological Parks
Anti Aging Aviary Mesh Effectively Reduces Maintenance Pressure For Ecological Parks
Anti Aging Aviary Mesh Effectively Reduces Maintenance Pressure For Ecological Parks
Specifications
Brand Name :
Yuhan
Model Number :
Yuhan-R-002
Certification :
SGS,CE
Place of Origin :
Hebei,China
MOQ :
10 quare meters
Price :
USD3-20/square meter
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
1000 square meters per day
Delivery Time :
5-10 days
Packaging Details :
Package film for each piece,Several pieces packed in 1 carton then wooden case
Product Name: :
Zoo Wire Rope Mesh Aviary Mesh
Material: :
Stainless Steel 304,316,316L
Rope Constructions: :
7*7,7*19
Cable Diameter :
1.2mm-4.0mm
Mesh Type: :
Ferruled Or Knotted
Finished: :
PVC coated, Black Oxide
Mesh Orientation: :
Horizontal , Vertical
Color :
Silver or Black
Length :
Customized
Width :
1m To 8m
Application: :
Animal Enclosure , Monkey Enclosure , TIger Enclosure , Etc
Description

Anti Aging Aviary Mesh Effectively Reduces Maintenance Pressure For Ecological Parks

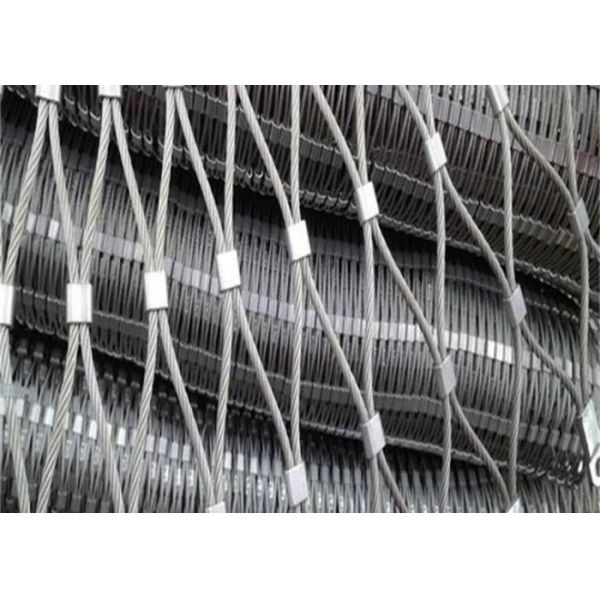

Wire diameStainless steel wire rope mesh is composed of 304, 304L, 316, 316L process is divided into hand-woven, closed mouth, open buckle.Assembled by stainless steel wire rope with 100% seamless rope ferrule. Optimal stretch at 60°angle.easily install by special border design.

Wire diameter:1.0-4.0mm(Customized)1.2mm,1.5mm,2.0mm,2.2mm,2.5mm,3.2mm,4mm

Mesh size:20-300mm

X-TEND stainless steel mesh is manufactured specific to order.
The product always does justice to the individual requirements.
An endless production of X-TEND is possible - hence also the name X-TEND = "to extend".
In cross direction, the individual mesh widths can be joined to each other in unlimited ways, without impairing the stability of the mesh.


Characteristic
Custom-Manufactured
Discrete, elegant and flexible.
Multifunctional, and compatible with creative architecture.
Premium Quality, Rugged , Weather-Resistant , Non-Corroding and Corrosion-resistant, Alkali Resistant

ItemCable diametermesh openingApplication
Yuhan 2.0/30mm2.0mm30*30mmPlayground mesh,stadium protection mesh
Yuhan 2.0/40mm2.0mm40*40mmPlayground mesh,stadium protection mesh
Yuhan 2.0/50mm2.0mm50*50mmPlayground mesh,decorative indoor mesh
Yuhan 2.0/60mm2.0mm60*60mmArchitecture outdoor mesh,Playground mesh
Yuhan 2.0/80mm2.0mm80*80mmdecorative indoor mesh,Aviary mesh
Yuhan 2.0/100mm2.0mm100*100mmairport protection mesh
Yuhan 2.0/120mm2.0mm120*120mmsuspended ceiling mesh
Yuhan 2.0/140mm2.0mm140*140mmoverhead coverage mesh
Yuhan 2.0/200mm2.0mm200*200mmArchitecture outdoor mesh
Yuhan 1.5/100mm1.5mm100*100mmArchitecture outdoor mesh,Pool protective net,Stairs Net
Yuhan 1.5/60mm1.5mm60*60mmPlayground mesh,Stairs Fence
Yuhan 1.5/50mm1.5mm50*50mmStairs Fence
Yuhan 1.5/30mm1.5mm30*30mmshading canopy mesh,Tower Protection Net
Yuhan 1.5/25mm1.5mm25*25mmAviary mesh
Yuhan 1.2/20mm1.2mm20*20mmAviary mesh
Yuhan 1.2/30mm1.2mm30*30mmAviary mesh
Yuhan 1.2/40mm1.2mm40*40mmPlayground mesh,protection mesh
Yuhan 1.2/50mm2.5mm50*50mmAnimal enclosure
Yuhan 3.0/100mm3.0mm100*100mmsafety net,overhead coverage mesh
Yuhan 3.0/40mm3.0mm40*40mmPlayground mesh
Yuhan 3.0/50mm3.0mm50*50mmbarrier mesh,decorative indoor mesh
Yuhan 3.0/80mm3.0mm80*80mmBridge safety net

SS304(%) C:≤0.07, Si :≤1.0, Mn :≤2.0, Cr :17.0-19.0, Ni :8.0-11.0, S :≤0.03, P :≤0.035
SS316(%) C:≤0.08, Si:≤1.00, Mn:≤2.00, P≤:0.035, S:≤0.03, Ni:10.0-14.0, Cr:16.0-18.5
SS316L(%)C:≤0.03, Si:≤1.00, Mn:≤2.00, P:≤0.045, S:≤0.030, Cr:16.0～18.0, Ni:12.0～15.0


The application of stainless steel rope mesh:

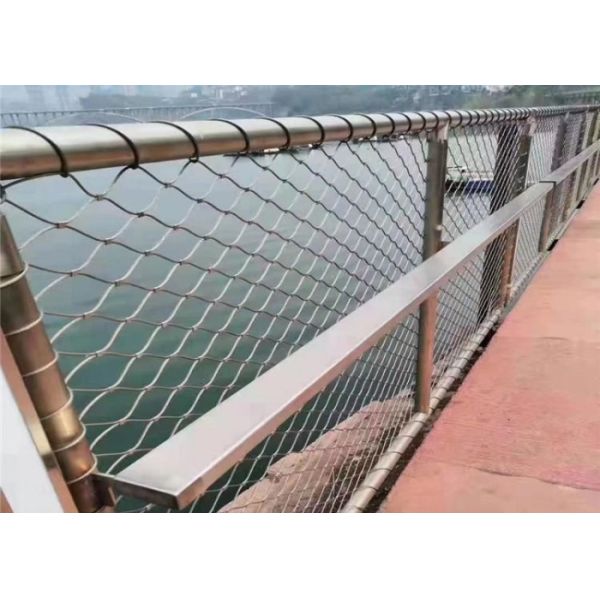

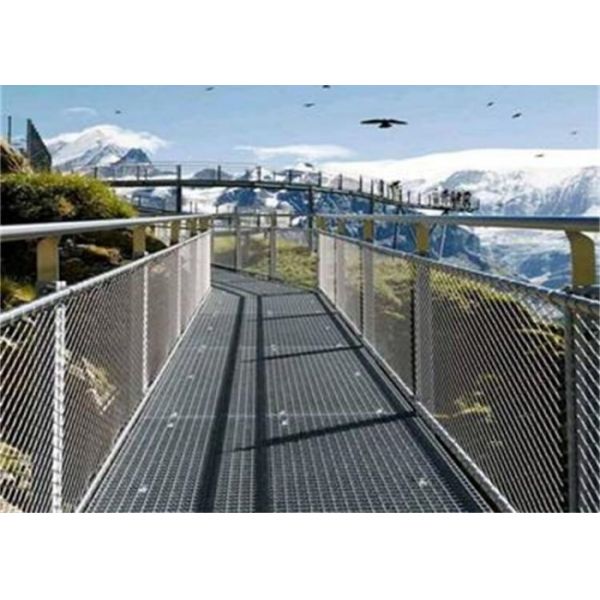

1. Steel Mesh Balustrade - bridge, stair, balcony, path
2. Cable Mesh - Excellent Solution to Safety
3. Safety Net - Structural Measure to Prevent Suicide
4. Helipad Safety Net - Modular Heliport Webbing
5. Cable Zoo Mesh - Solution to Enclosing Most Animals
6. Aviary Netting - Lightweight, Durable and Long Lasting
7. Green Facade - Cable System for Most Climbing Plants


Stainless steel cable mesh is mainly used in the construction for wild zoos, large animal enclosure or aviaries, garden green walls, and also handrail infill or safety mesh. Stainless steel ferrule cable mesh and stainless steel inter-woven cable mesh have different characteristics and applications due to different weaving techniques. Compared with ferrule type rope mesh, the inter-woven type net is lighter in weight, more flexible, and has higher transparency, making it especially suitable for applications such as zoo mesh and fall protection netting. Ferrule type rope mesh is more aesthetically pleasing and decorative, and is often used as an architectural wire mesh for decorative and protective purposes in the construction field.
