1000L 2000L Vertical Type Stainless Steel Fresh Milk Storage Cooling Tank

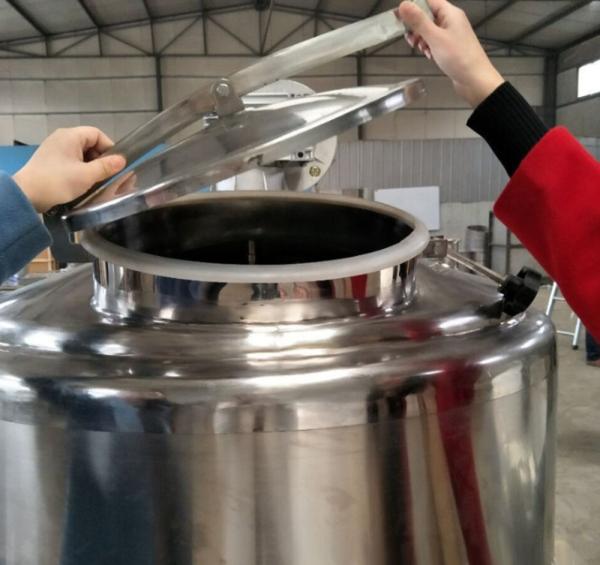

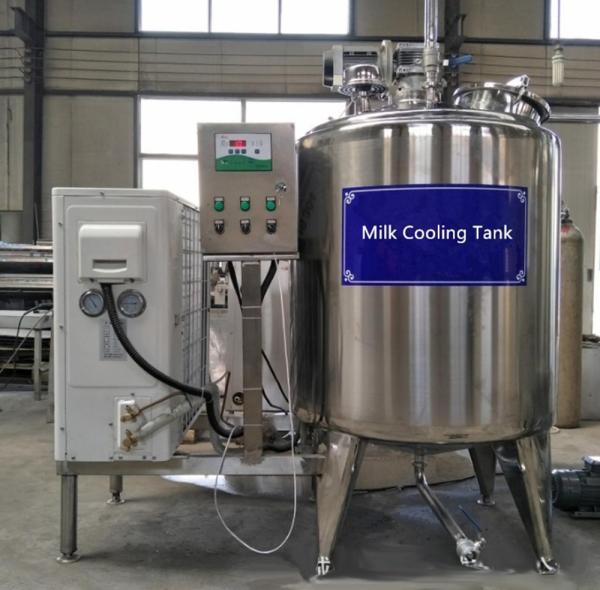

1. Milk Cooling Tank Picture :
1. Introduction:
Milk cooling storage pot is mainly used in preserving and storing fresh milk or other fresh liquid. It fully used the international advanced technology, adopts importing European Maneurop (non-fluorine) refrigerator and safety and protection system, imported advanced technique.
So it's the ideal cooling and storage equipment for pasture, milk station, milk factory, food factory, and beverage factory and pharmacy industry.
2. Tank part
Vol: 500L~20,000L
Material: SUS304
Isolation material: PU foam
2. Cooling system
Compressor: Maneurop
Refrigerant: R404A or R22
4. CHARACTERISTICS OF CONTROL CABINET:
A. Temperature Meter: Temperature show
B. Refrigerator control system set and the milk temperature adjustment.

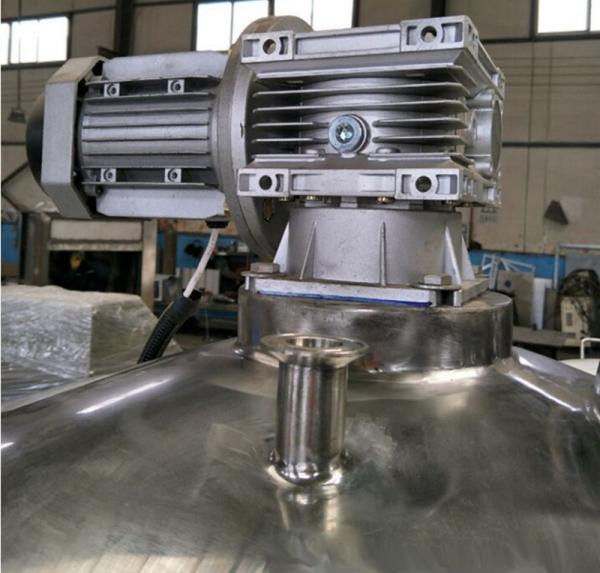

C. Adjusts the Agitator for fully mixing up.
D. Function of the panel: Alarm for warning
This system can cooling large area of the inside pot surface, utilizing the automatic computer control system to observe and operate, which can quickly lower the temperature to 4º Cand keep to this constant temperature, that prevent from the growth of the bacteria.

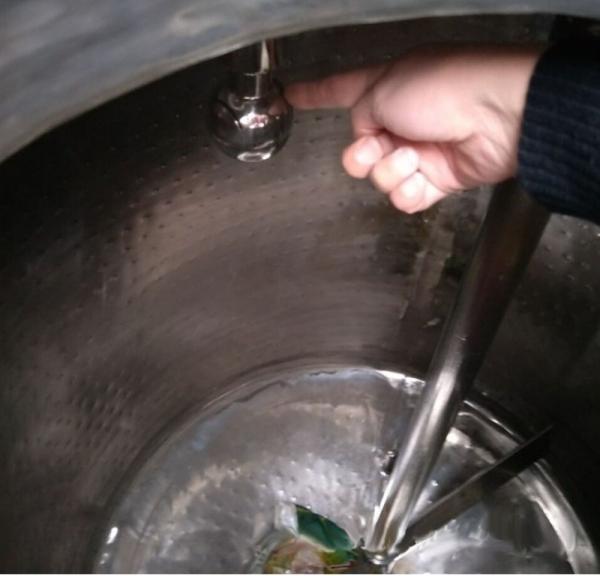

The refrigeration compressor unit are choose the excellent performance and energy-saving European "Maneurop" compressor, equipped with the creditable midpoint protector that will prevent the equipment from burn out caused by over loading or system fault. The heat preservation layer utilized the new technique of the anti-aging polyurethane blister, it owns the brilliant characteristics of heat insulations. The body of the Pot(vessel) make by the high quality stainless steel material 304 equipped with automatic cleaning ball and mixing system. Milk Cooling Tank .


2. Technical Parameter :

The refrigeration system is designed with adequate capacity to chiIl the milk as per basic design parameter with multiple condensing units. Each condensing unit consists of the compressor, condenser, receiver, dryer, expansion valve, high-pressure cut out, low-pressure cut out, solenoid valve, sight glass, oil separator and other controls suitable for smooth operation of the plant. We offer related refrigerant pipes, fittings for interconnection of all refrigeration components. All refrigerant pipes will be properly clamped on fixed support and
sponge insulation for protection. There should have shut off valve both sides of compressor, receiver & dryer.
3. Factory :
