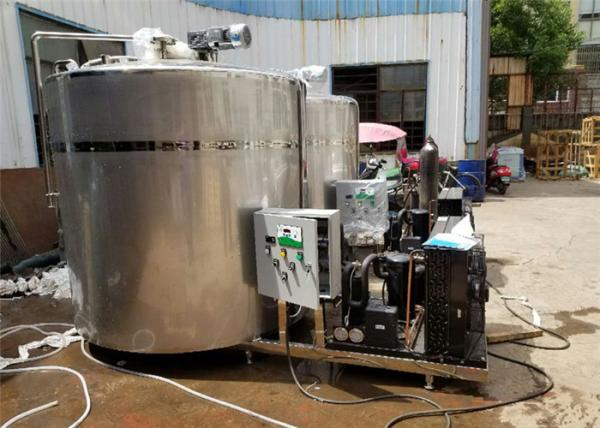

3000L - 5000L Milk Cooling Tank Stainless Steel Material For Industrial
3000L - 5000L Milk Cooling Tank Stainless Steel Material For Industrial
3000L - 5000L Milk Cooling Tank Stainless Steel Material For Industrial
3000L - 5000L Milk Cooling Tank Stainless Steel Material For Industrial
3000L - 5000L Milk Cooling Tank Stainless Steel Material For Industrial
3000L - 5000L Milk Cooling Tank Stainless Steel Material For Industrial
Specifications
Model Number :
3000L ,4000L ,5000L
Certification :
ISO
MOQ :
1 Set
Price :
4000USD
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
100 Set per month
Delivery Time :
15 days after get your advance payment .
Packaging Details :
Standard Export Wooden Box .
Name :
stainless steel milk vat
Material :
Sanitary Stainless Steel 304 / 316
Capacity :
3000L ,4000L ,5000L
Air Compressor :
Copeland (USA Brand )
Motor Brand :
ABB / Siemens /SEW
Speed of mixer :
36RPM
Surface Treatment :
Inside mirror and outside polished
Insulation Thickness :
Polythure Foam :80 mm
Description

3000L 4000L 5000L Industrial Stainless Steel Milk Cooling Tank Milk Cooler

1. Industruction :

The milk cooling tank is used for the cooling, storage and keeping fresh of fresh milk. It is also suitable for the cooling and storage of other beverage. It is composed of four layers: Liner, Jacketed Layer, Insulation Layer and Shroud Layer. It is operated automatically. The fresh milk squeezed out by the milker in 36 degree centigrade can be cooled to 10 degree the time it comes to the tank. The milk then will be cooled to 4-6 degree centigrade after it comes to the tank body, which improves the quality of milk and guarantees the acidity and freshness of milk. There is an insulating layer wrapping the jacketed layer, which keeps it in constant temperature and prevents the milk from producing bacterium. The timed agitator makes the fresh milk keep in A grade.

we can design, manufacture, install milk production line and milk plant for producing all kinds of dairy products, such as pure milk, flavored milk.

You can choose vertical type

Usage:
Cooling tank for milk is mainly used in preserving and storing fresh milk or other fresh liquid (milk, soft drink
and wine etc) cooling, so as to refrigerate and retain freshness, prevent bacterial breed.
The milk collection device and vacuum tank uses stainless steel and is made by advanced foreign technology.
The feature stable vacuum performance and pleasant appearance.
Cooler tank are used at the mobile milking machine to make the client’s product more competitive.
Type: Vertical Milk Cooling & Cooler Tank or Horizontal Cooling & Cooler Tank
Capacity: 500-10000L, other special capacity available upon request.
Material: Double-walled stainless steel, resistance to high temperature and corrosion resistance.
Standard: Designed and manufacture according to ISO9001:200, ISO9001-2008 and GBT10942-2001 ISO 5708:1983
refrigerate standard.
Compressor: The Milk tank adapt high-performance, low noise, stability.
Agitator: Cooling Tanks for Milk built with agitator
Manual or automatic available
Display: With control panel and digital could be display.
Insulating: With thickness 60-80mm polyurethane foam to keep thermal insulation.
Cleaning: Automatic clean and wash milk and other liquid, high efficient and convenient.

2. Technical Parameter :

Type

KQ-3T

Laying type

KQ-5T

Laying type

Capacity(L) 3000 5000
Refrigerating Output(W) 22000 37000
Refrigerating Fluid(R) R22/404A R22/404A
Insulating Property ≤1℃/5h ≤1℃/5h
Agitator Speed 36r/min 36r/min
Power (Kw) 7.5 10.5
Voltage 380V/50Hz,3phases 380V/50Hz,3phases
Dimension(mm) 3600*1700*1900 3900*2050*2150
Weight(Approximately) 0.9T 1.1T

3000L - 5000L Milk Cooling Tank Stainless Steel Material For Industrial

Features:


* Milk cooling fastest from +32ºC To +4ºC
* Space saving, easy to clean
* Adjustable legs giving slope for milk drain
* Paddle type agitator for foamless agitation even for small quantities of milk
* Excellent insulation to avoid temperature loss
* Precise temperature control with efficient refrigeration circuit and
* direct expansion type of evaporation-Gas R-404A
* Stainless steel frame for condensing unit for long life
* Electrical panel with all necessary safety with indication
* Entire cooler made of AISI-304 stainless steel well polished
* Out let dairy valve 38mm or 51mm
