Checked Diamond Building SUS 304L Embossed Stainless Steel Sheet For Decoration
Checked Diamond Building SUS 304L Embossed Stainless Steel Sheet For Decoration
Checked Diamond Building SUS 304L Embossed Stainless Steel Sheet For Decoration
Checked Diamond Building SUS 304L Embossed Stainless Steel Sheet For Decoration
Specifications
Brand Name :
HENGCHENGTAI
Model Number :
304L
Certification :
ISO, SGS, RoHS
Place of Origin :
China
MOQ :
1 Ton
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50000 tons per year
Delivery Time :
7-10 days
Packaging Details :
Standard seaworthy package
Type :
Embossed Sheet
Surface :
Embossed
Length :
2000-3000mm or as required
Width :
1000-1500mm or as required
Application :
Food Buliding Chemical Industry etc.
Tolerance :
±1%
Description

Checked Diamond Building SUS 304L Embossed Stainless Steel Sheet For Decoration

Stainless steel checker plate has excellent corrosion resistance and slip resistance, so it is favored by the public

Product Name Checked Diamond Building SUS 304L Embossed Stainless Steel Sheet For Decoration
Brand name Hengchengtai
Certification SGS, ISO
Delivery time 3~10 days
Application Food Buliding Chemical Industry etc.
Price term CIF CFR FOB EXW
Payment term T/T 30%, L/C
Standard Aisi ASTM
MOQ 1 ton
Type Sheet/Plate/Coil/Pipe
Technique cold rolled / hot rolled
Grade 201 202 304 304J1 304L 321 316 316L 309S 310S 409L 410 420J1 420J2 430 444 etc
Surface finish 2B/No.4 brushed/8K/BA mirror finish/checkered plate etc can be manufactured according to customer needs
Size for one sheet W1000mm*L2000mm(3.2*6.5ft);
W1219mm*L2438mm(4*8ft);
W1500mm*L3000mm(5*10ft)
under cold rolled condition, 0.4/0.5/0.6/0.7/0.8/0.9/1.0/1.2/1.5/2.0/2.5/3.0 thickness, 4-6mm also be available. Other size can be cut according to customer requirements
W1250mm*L3000mm(4.1*10ft);
W1250mm*L6000mm(4.1*19.6ft);
W1500mm*L3000mm(5*10ft);
W1500mm*L6000mm(5*19.6ft);
W1800mm*L6000mm(5.9*19.6ft);
under hot rolled treatment, 3.0 4.0 5.0 6.0 8.0 10.0 12.0 14.0 16.0 thickness. 18-150mm also be available. Other size can be cut according to customer requirements

Chemical Composition

Grade C Si Mn P Ni Cr Mo
201 ≤0.15 ≤0.75 5.5-7.5 ≤0.06 3.5-5.5 16.0-18.0 -
202 ≤0.15 ≤1.0 7.5-10.0 ≤0.06 4.-6.0 17.0-19.0 -
301 ≤0.15 ≤1.0 ≤2.0 ≤0.045 6.0-8.0 16.0-18.0 -
302 ≤0.15 ≤1.0 ≤2.0 ≤0.035 8.0-10.0 17.0-19.0 -
304 ≤0.08 ≤1.0 ≤2.0 ≤0.045 8.0-10.5 18.0-20.0 -
304L ≤0.03 ≤1.0 ≤2.0 ≤0.035 9.0-13.0 18.0-20.0 -
309S ≤0.08 ≤1.0 ≤2.0 ≤0.045 12.0-15.0 22.0-24.0 -
310S ≤0.08 ≤1.5 ≤2.0 ≤0.035 19.0-22.0 24.0-26.0 -
316 ≤0.08 ≤1.0 ≤2.0 ≤0.045 10.0-14.0 16.0-18.0 2.0-3.0
316L ≤0.03 ≤1.0 ≤2.0 ≤0.045 12.0-15.0 16.0-18.0 2.0-3.0
321 ≤0.08 ≤1.0 ≤2.0 ≤0.035 9.0-13.0 17.0-19.0 -
630 ≤0.07 ≤1.0 ≤1.0 ≤0.035 3.0-5.0 15.5-17.5 -
631 ≤0.09 ≤1.0 ≤1.0 ≤0.030 6.50-7.75 16.0-18.0 -
904L ≤2.0 ≤0.045 ≤1.0 ≤0.035 23.0-28.0 19.0-23.0 4.0-5.0
2205 ≤0.03 ≤1.0 ≤2.0 ≤0.030 4.5-6.5 22.0-23.0 3.0-3.5
2507 ≤0.03 ≤0.80 ≤1.2 ≤0.035 6.0-8.0 24.0-26.0 3.0-5.0
2520 ≤0.08 ≤1.5 ≤2.0 ≤0.045 0.19-0.22 0.24-0.26 -
410 ≤0.15 ≤1.0 ≤1.0 ≤0.035 - 11.5-13.5 -
430 ≤0.12 ≤0.75 ≤1.0 ≤0.040 ≤0.60 16.0-18.0 -

Physical Properties

Grade Tensile Strength (Mpa) Yield Strength (Mpa) Elogation(%) Hardness (HRB)
201 ≥655 ≥310 ≥40 ≤100
202 ≥620 ≥260 ≥40 ≤100
304 ≥515 ≥205 ≥40 ≤92
304L ≥485 ≥170 ≥40 ≤88
316 ≥515 ≥205 ≥40 ≤95
316L ≥485 ≥170 ≥40 ≤95
321 ≥515 ≥205 ≥40 ≤95
409 ≥380 ≥205 ≥20 ≤80
409L ≥350 ≥185 ≥22 ≤80
430 ≥450 ≥205 ≥22 ≤80

Standard Size

Thickness Width * Length Thickness Width * Length
0.3mm 1000mm*2000mm 1220mm*2440mm 1220mm*3048mm 1500mm*3000mm 4mm 1500mm*6000mm 1800mm*6000mm 2000mm*6000mm 2200mm*6000mm
0.4mm 5mm
0.5mm 6mm
0.6mm 8mm
0.7mm 9mm
0.8mm 10mm
0.9mm 15mm
1mm 20mm
1.2mm 25mm
1.5mm 30mm
2mm 35mm
2.5mm 40mm
3mm 45mm
We Can Customize Any Size, Please Contact US.

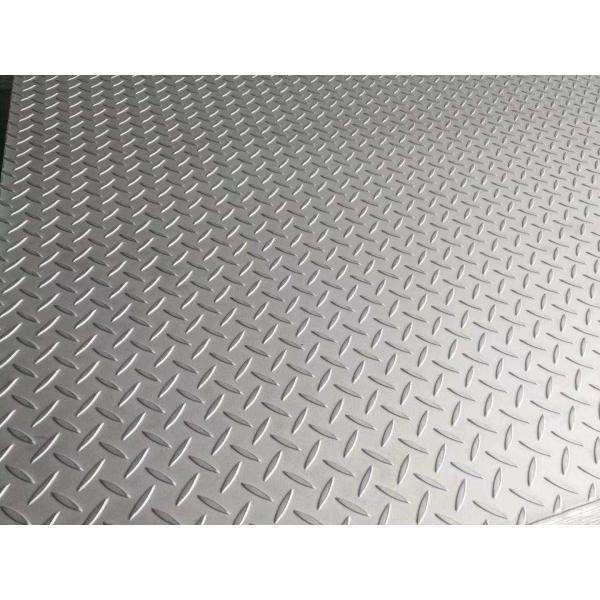

Product Photo

Checked Diamond Building SUS 304L Embossed Stainless Steel Sheet For Decoration

Surface Finish

Checked Diamond Building SUS 304L Embossed Stainless Steel Sheet For Decoration

Certification

Checked Diamond Building SUS 304L Embossed Stainless Steel Sheet For Decoration

Packing & Shipping

Checked Diamond Building SUS 304L Embossed Stainless Steel Sheet For Decoration

Our Factory

Checked Diamond Building SUS 304L Embossed Stainless Steel Sheet For Decoration

FAQ

Q1: ARE YOU FACTORY OR TRADER?
A1: Hengchengtai Special Steel is a cold rolling manufacturer of magnetic stainless steel coil since 2009. We've gained our Export Right and become an integrated company of industry and trade in order to satisfy buyer's multi-request on different material and products.

Q2: WHICH MATERIAL/PRODUCTS YOU CAN PROVIDE?
A2: Stainless Steel Coils / Strips, Stainless Steel Sheets / Plates, Stainless Steel Circles / Discs, Decorative Stainless Steel Sheets.

Q3: HOW TO GET A SAMPLE?
A3: FREE samples are available for your checking and testing. And to get free samples, you need to send us you detailed receiving address (including post code) and your DHL/FedEx/UPS account for collecting samples, courier cost will be paid in your side.

Q4: HOW TO VISIT YOUR FACTORY?
A4: Most of the main cities have flights to Shanghai; you can take flight to Shanghai Putong/Hongqiao International Airport.
If you come from Hongkong, it will take 2 hours by flight (every day 5 flight around noon time).
