Embossed Finish 316L Stainless Steel Sheet W1219mm x L2438mm
Embossed Finish 316L Stainless Steel Sheet W1219mm x L2438mm
Embossed Finish 316L Stainless Steel Sheet W1219mm x L2438mm
Embossed Finish 316L Stainless Steel Sheet W1219mm x L2438mm
Specifications
Brand Name :
HENGCHENGTAI
Model Number :
316L
Certification :
ISO,SGS
Place of Origin :
China
MOQ :
1 Ton
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50000 tons per year
Delivery Time :
7-10 days
Packaging Details :
Standard seaworthy package
Grade :
316L
Surface :
Embossed/Checked
Length :
1000-6000mm
Width :
500-1500mm or customize
Thickness :
0.3-3.0mm
Description

Embossed Finish 316L Stainless Steel Sheet/ Checkered Stainless Steel Plate, W1219mm*L2438mm(4*8ft)

The stainless steel checkered sheet/ plate is embossed on the stainless steel plate by mechanical equipment, so that the surface of the plate has a concave and convex pattern.

Send us inquiry to get competitive price with details within 1 hour
Brand name Hengchengtai
Supply ability 50000 tons per year
Certification factory is vertifed by SGS. ISO or other product certification can be provided accordingly
Delivery time 3~10 days
Manufacturing products mainly supply customer with stainless steel series products such as stainless steel sheet, stainless steel pipe, stainless steel profiles etc, also provide galvanized steel series products and carbon steel products etc for customers
Price term CIF CFR FOB EXW
Payment term T/T terms, 30% pre-payment, 70% balance see B/L copy;
Stock available stock goods with standard size, can be delivered to customer area with fast speed
Standard JIS Aisi ASTM DIN EN bs
MOQ 1 ton
Steel outlook stainless steel sheet or plate. (coil or pipe etc can also be provided for customer)
Steel technique cold rolled and hot rolled is also available
Grade 201 202 304 304J1 304L 321 316 316L 309S 310S 409L 410 420J1 420J2 430 444 etc
Surface finish 2B/No.4 brushed/8K/BA mirror finish/checkered plate etc can be manufactured according to customer needs
Size for one sheet W1000mm*L2000mm(3.2*6.5ft);
W1219mm*L2438mm(4*8ft);
W1500mm*L3000mm(5*10ft)
under cold rolled condition, 0.4/0.5/0.6/0.7/0.8/0.9/1.0/1.2/1.5/2.0/2.5/3.0 thickness, 4-6mm also be available. Other size can be cut according to customer requirements
W1250mm*L3000mm(4.1*10ft);
W1250mm*L6000mm(4.1*19.6ft);
W1500mm*L3000mm(5*10ft);
W1500mm*L6000mm(5*19.6ft);
W1800mm*L6000mm(5.9*19.6ft);
under hot rolled treatment, 3.0 4.0 5.0 6.0 8.0 10.0 12.0 14.0 16.0 thickness. 18-150mm also be available. Other size can be cut according to customer requirements

Chemical Composition

Grade C Si Mn P S Ni Cr Mo N
SUS201 ≤0.15 ≤0.75 5.5-7.5 ≤0.06 ≤0.030 0.8-1.2 16-18 -- ≤0.25
SUS301 ≤0.15 ≤1.00 ≤2.00 ≤0.045 ≤0.030 6.0-8.0 16-18 -- ≤0.25
SUS304 ≤0.08 ≤1.00 ≤2.00 ≤0.045 ≤0.030 8.0-10.0 18-20 -- --
SUS310S ≤0.1 ≤1.50 ≤2.00 ≤0.045 ≤0.03 19-22 24-26 -- ≤0.10
SUS316L ≤0.07 ≤1.00 ≤2.00 ≤0.045 ≤0.30 10-14 16-18.5 2.0-3.0 ≤0.11
SUS430 ≤0.12 ≤0.750 ≤1.00 ≤0.040 ≤0.030 ≤0.60 16-18 -- --

Physical Properties

Grade Temper Vickers Hardness Yield Strength Tensile Strength Elongation(%)
SUS201 ANN <200 >205 >515 >40
1/4H 200-250 >250 >550 >35
1/2H 250-310 >470 >780 >6
3/4H 310-370 >665 >930 >3
H 370-430 >880 >1130 --
SUS301 ANN <250 >205 >520 >40
1/4H 250-310 >470 >780 >35
1/2H 310-370 >510 >930 >10
3/4H 370-430 >745 >1130 >5
H 430-490 >1030 >1320 >3
EH 490-550 >1275 >1570 --
SH >550 >1500 >1850 --
SUS304 ANN <200 >205 >520 >40
1/4H 200-250 >255 >550 >35
1/2H 250-310 >470 >780 >6
3/4H 310-370 >665 >930 >3
H 370-430 >880 >1130 --
SUS310S ≤200 <200 >205 >520 >40
SUS316L ≤200 <200 >310 >620 >40
SUS430 ANN <200 >205 >450 >22
1/2H 200-250 >330 >505 >10
H 250-310 >420 >750 >6

Standard Size

Thickness Width * Length Thickness Width * Length
0.3mm 1000mm*2000mm 1220mm*2440mm 1220mm*3048mm 1500mm*3000mm 4mm 1500mm*6000mm 1800mm*6000mm 2000mm*6000mm 2200mm*6000mm
0.4mm 5mm
0.5mm 6mm
0.6mm 8mm
0.7mm 9mm
0.8mm 10mm
0.9mm 15mm
1mm 20mm
1.2mm 25mm
1.5mm 30mm
2mm 35mm
2.5mm 40mm
3mm 45mm
We Can Customize Any Size, Please Contact US.

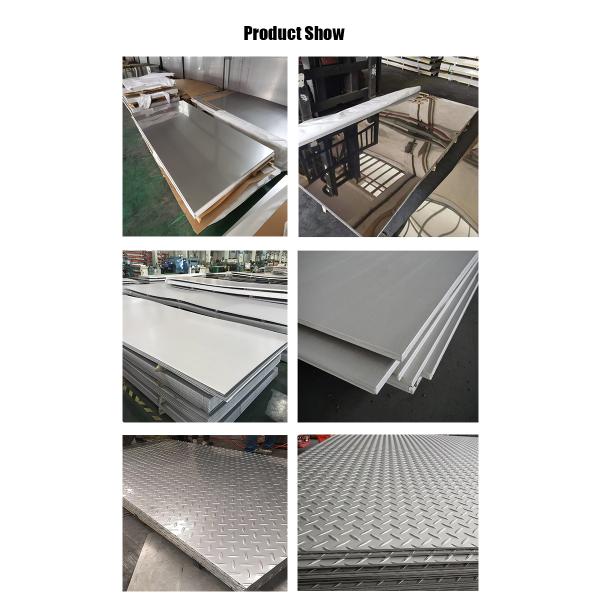

Product Photo

Embossed Finish 316L Stainless Steel Sheet W1219mm x L2438mm

Surface Finish

Embossed Finish 316L Stainless Steel Sheet W1219mm x L2438mm

Certification

Embossed Finish 316L Stainless Steel Sheet W1219mm x L2438mm

Packing & Shipping

Embossed Finish 316L Stainless Steel Sheet W1219mm x L2438mm

Our Factory

Embossed Finish 316L Stainless Steel Sheet W1219mm x L2438mm

FAQ

Q1: ARE YOU FACTORY OR TRADER?
A1: Hengchengtai Special Steel is a cold rolling manufacturer of magnetic stainless steel coil since 2009. We've gained our Export Right and become an integrated company of industry and trade in order to satisfy buyer's multi-request on different material and products.

Q2: WHICH MATERIAL/PRODUCTS YOU CAN PROVIDE?
A2: Stainless Steel Coils / Strips, Stainless Steel Sheets / Plates, Stainless Steel Circles / Discs, Decorative Stainless Steel Sheets.

Q3: HOW TO GET A SAMPLE?
A3: FREE samples are available for your checking and testing. And to get free samples, you need to send us you detailed receiving address (including post code) and your DHL/FedEx/UPS account for collecting samples, courier cost will be paid in your side.

Q4: HOW TO VISIT YOUR FACTORY?
A4: Most of the main cities have flights to Shanghai; you can take flight to Shanghai Putong/Hongqiao International Airport.
If you come from Hongkong, it will take 2 hours by flight (every day 5 flight around noon time).
