Heat Resistant SS304 Stainless Steel Wire Mesh with 40*40mm 50*50mm Hole Size for Boiler Applications
Heat Resistant SS304 Stainless Steel Wire Mesh with 40*40mm 50*50mm Hole Size for Boiler Applications
Specifications
MOQ :
10 Square Meters
Price :
US $20 / Square Met
Model NO. :
304
Material Type :
Stainless Steel Plate
Weave Technique :
Twill Weave
Wire Mesh Width :
1m
Technique :
Punching
Nickels :
8%
Height :
8-40mm
Thickness :
1.2-2.0mm
Hole Size :
40*40mm, 50*50mm
Area :
0.6-2m2/PCS
Length :
1070-1550mm
Width :
562-1300mm
Grade :
Carbon Steel, 0Cr13, 304, S32205, 0Cr25Ni20
Whole Size :
8-1.2-40*40 to 40-1.75-50*50
Other Grades :
304L, 321, 309S, 316L, 420, 430
Description

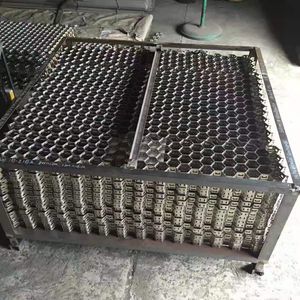

Heat Resistant SS304 Tortoise Shell Net
Available in 40×40mm and 50×50mm mesh sizes for industrial lining applications
Product Specifications
Grade Height (mm) Thickness (mm) Hole Size (mm) Whole Size Area (m²/PCS) Length×Width (mm)
Carbon Steel81.240×408-1.2-40×400.61070×562
Carbon Steel101.240×4010-1.2-40×400.61070×562
Carbon Steel151.550×5015-1.5-50×5011550×650
Carbon Steel151.7550×5015-1.75-50×5011550×650
Carbon Steel201.7550×5020-1.75-50×5021550×1300
0Cr13101.240×4010-1.2-40×400.61070×562
0Cr13201.7550×5020-1.75-50×501.91550×1230
0Cr13251.7550×5025-1.75-50×501.91550×1230
0Cr13401.7550×5040-1.75-50×501.91550×1230
30481.240×408-1.2-40×400.61070×562
304101.250×5010-1.2-50×5011550×650
304201.7550×5020-1.75-50×501.881540×1225
304251.7550×5025-1.75-50×501.91550×1230
304401.7550×5040-1.75-50×501.91550×1230
S32205101.240×4010-1.2-40×400.731340×590
0Cr25Ni20101.240×4010-1.2-40×400.61070×562
0Cr25Ni20202.050×5020-2.0-50×50Custom1550×width
Other available grades: 304L, 321, 309S, 316L, 420, 430, etc.
Product Advantages
  • Hexagonal design increases fixing power with lining material
  • Effectively strengthens self-connecting property of lining material
  • Prevents heat insulation layer from peeling off
  • Enhances fastness and durability of lining material
Industrial Applications
Used for pouring shapeless lining material and lining material fixing applications. We have supplied essential metal components to major framework factories and various lining metal components for petrochemical manufacturers.
Our products are widely used in petrochemical large-scale devices, particularly as key lining parts that support catalyst systems and ensure operational reliability.
Product Images
Heat Resistant SS304 Stainless Steel Wire Mesh with 40*40mm 50*50mm Hole Size for Boiler Applications Heat Resistant SS304 Stainless Steel Wire Mesh with 40*40mm 50*50mm Hole Size for Boiler Applications Heat Resistant SS304 Stainless Steel Wire Mesh with 40*40mm 50*50mm Hole Size for Boiler Applications Heat Resistant SS304 Stainless Steel Wire Mesh with 40*40mm 50*50mm Hole Size for Boiler Applications
