Stainless Steel Hexagonal Wire Mesh Tortoise Shell Net with Grade 304 Twill Weave for Boiler Application
Stainless Steel Hexagonal Wire Mesh Tortoise Shell Net with Grade 304 Twill Weave for Boiler Application
Specifications
MOQ :
10 Square Meters
Price :
US $25.5 / Square M
Material Type :
Stainless Steel Plate
Weave Technique :
Twill Weave
Wire Mesh Width :
1m
Technique :
Punching
Nickel Content :
8%
Height :
8-40mm
Thickness :
1.2-2.0mm
Hole Size :
40*40-50*50mm
Area per Piece :
0.6-2m²
Length :
1070-1550mm
Width :
562-1300mm
Grades Available :
304, 410S, 310S, 304L, 321, 309S, 316L, 420, 430
Whole Size :
8-1.2-40*40 to 40-1.75-50*50
Hexagonal Shape :
Yes
Lining Material Fixing :
Enhanced
Description
Stainless Steel Hexagonal Tortoise Shell Net
High-quality hexagonal steel mesh available in various grades including 304, 410S, 310S, and other stainless steel variants for industrial applications.
Product Specifications
Grade Height (mm) Thickness (mm) Hole Size (mm) Whole Size Area (m²/PCS) Length × Width (mm)
Carbon Steel81.240×408-1.2-40×400.61070×562
Carbon Steel101.240×4010-1.2-40×400.61070×562
Carbon Steel151.550×5015-1.5-50×5011550×650
Carbon Steel151.7550×5015-1.75-50×5011550×650
Carbon Steel201.7550×5020-1.75-50×5021550×1300
0Cr13101.240×4010-1.2-40×400.61070×562
0Cr13201.7550×5020-1.75-50×501.91550×1230
0Cr13251.7550×5025-1.75-50×501.91550×1230
0Cr13401.7550×5040-1.75-50×501.91550×1230
30481.240×408-1.2-40×400.61070×562
304101.250×5010-1.2-50×5011550×650
304201.7550×5020-1.75-50×501.881540×1225
304251.7550×5025-1.75-50×501.91550×1230
304401.7550×5040-1.75-50×501.91550×1230
S32205101.240×4010-1.2-40×400.731340×590
0Cr25Ni20101.240×4010-1.2-40×400.61070×562
0Cr25Ni20202.050×5020-2.0-50×50Custom as request: length1550×width
Other available grades: 304L, 321, 309S, 316L, 420, 430, etc.
Product Advantages
  • Enhanced fixing power with lining material for superior connection properties
  • Effectively strengthens self-connecting property of lining materials
  • Prevents heat insulation layer from peeling off
  • Increases fastness and durability of lining materials
Applications
Used for pouring shapeless lining material and lining material fixing applications. We supply essential metal components to major industrial manufacturers, including various lining metal components for petrochemical producers. Our products are widely utilized in petrochemical large-scale devices, particularly as key lining parts that support catalyst systems.

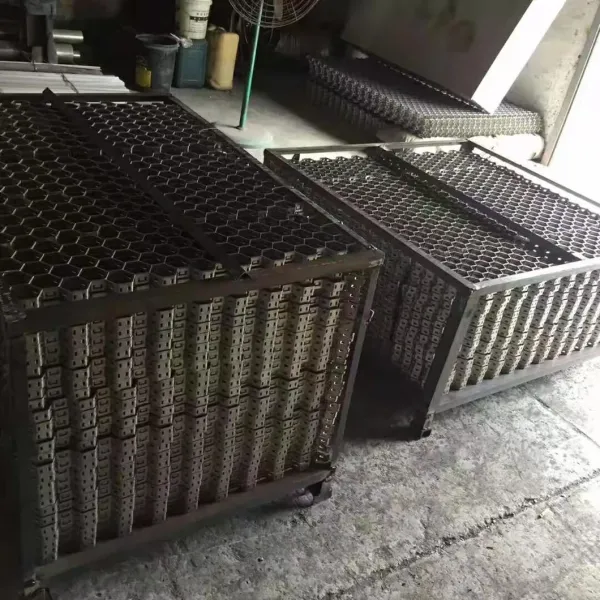

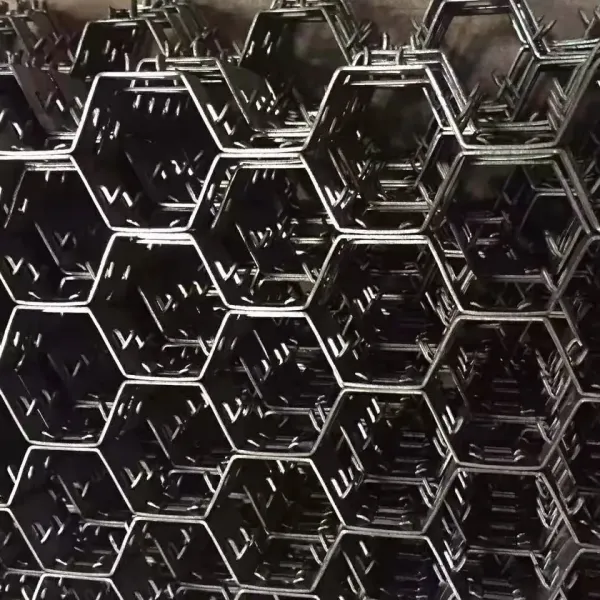

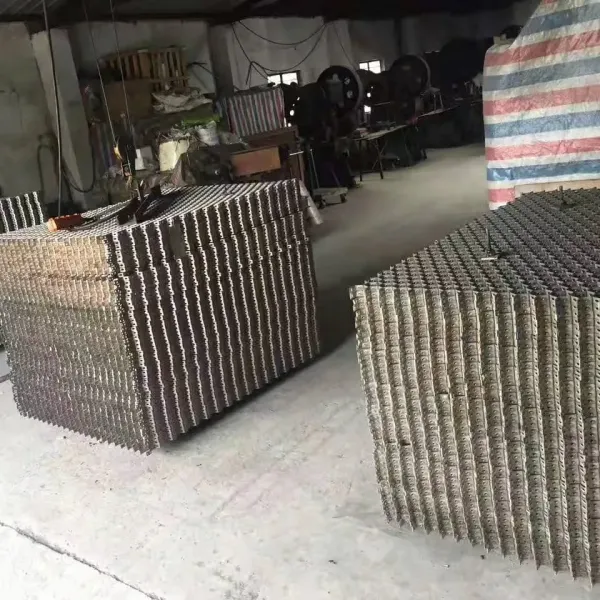

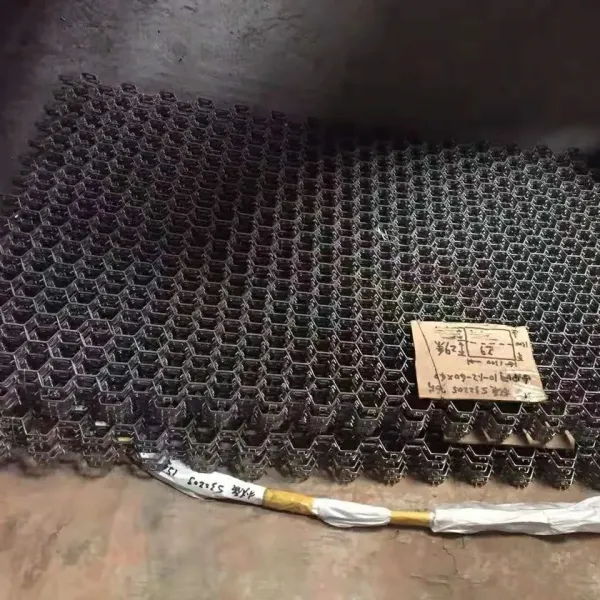

Product Images
Stainless Steel Hexagonal Wire Mesh Tortoise Shell Net with Grade 304 Twill Weave for Boiler Application Stainless Steel Hexagonal Wire Mesh Tortoise Shell Net with Grade 304 Twill Weave for Boiler Application Stainless Steel Hexagonal Wire Mesh Tortoise Shell Net with Grade 304 Twill Weave for Boiler Application Stainless Steel Hexagonal Wire Mesh Tortoise Shell Net with Grade 304 Twill Weave for Boiler Application
