Specifications
MOQ :
1 Ton
Price :
US $680-1,650 / Ton
Material Grade :
34CrNiMo6 DIN1.6582
Carbon Content :
0.30-0.38%
Silicon Content :
Max 0.40%
Manganese Content :
0.50-0.80%
Chromium Content :
1.30-1.70%
Molybdenum Content :
0.15-0.30%
Nickel Content :
1.30-1.70%
Round Bar Diameter :
10-1000mm
Square Bar Size :
150×150-500×500mm
Length :
3000-10000mm
Tensile Strength :
≥980 MPa
Yield Strength :
≥785 MPa
Elongation :
≥9%
Reduction of Area :
≥40%
Impact Test :
≥47 J
Description

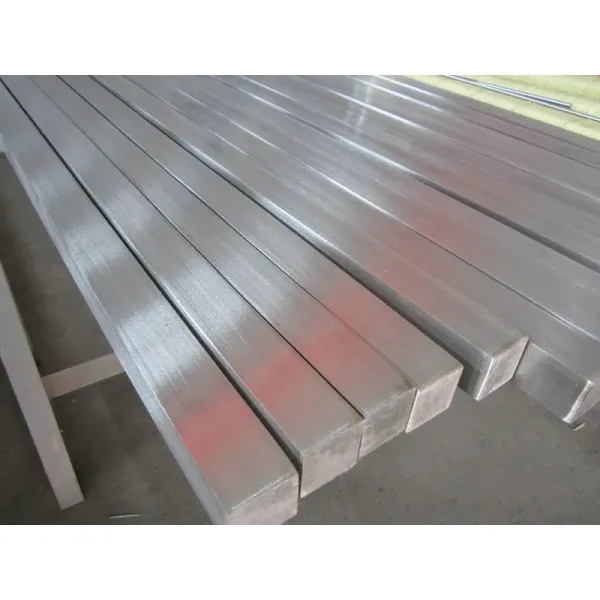

34CrNiMo6 200mm Bright Square Bar - AISI 4340 Alloy Steel
High-quality 34CrNiMo6 (DIN 1.6582) alloy steel square bars manufactured according to EN 10083-3 standards. This nickel-molybdenum alloy steel offers exceptional strength and comprehensive mechanical properties for demanding industrial applications.
Material Specifications
Chemical Composition
Element Content (%)
Carbon 0.30-0.38
Silicon Max 0.40
Manganese 0.50-0.80
Chromium 1.30-1.70
Molybdenum 0.15-0.30
Nickel 1.30-1.70
Mechanical Properties
Property Value
Tensile Strength ≥980 MPa (100 kgf/mm²)
Yield Strength ≥785 MPa (80 kgf/mm²)
Elongation ≥9%
Reduction of Area ≥40%
Impact Energy (Akv) ≥47 J
Available Forms & Sizes
Forged Steel Products
  • Round Bars: Diameter 80-1,000mm, Length 3,000-10,000mm
  • Square Bars: 150×150-500×500mm, Length 3,000-8,000mm
  • Custom forged flat bars, blocks, shafts, and forging pieces available
Rolled Steel Products
  • Round Bars: Diameter 10-300mm, Length 3,000-10,000mm
  • Custom lengths available upon request
Dimensional Tolerances
  • Black surface: -0/+8mm
  • Machined surface: -0/+3mm
  • Straightness deviation: Maximum 2mm/meter with 360° rotary device
Heat Treatment Processes
Hardening & Tempering
  • Heat uniformly to 850°C
  • Quench in oil
  • Reheat to 550°C and soak for minimum 2 hours
  • Cool in furnace
Annealing
  • Heat thoroughly to 800-850°C
  • Cool slowly to 550°C
  • Complete annealing in air
Normalizing
  • Heat to 850°C
  • Cool to room temperature in air
Quality Certification
  • Chemical composition per DIN 7527-6, EN 10250-3
  • Complete mechanical properties testing
  • Non-metallic inclusions analysis
  • Grain size: Minimum 5, preferred 8 (DIN 50601)
  • 360° ultrasonic testing per EN 10228-3
  • Impact testing on three ISO-V samples at +20°C
Industrial Applications
34CrNiMo6 steel is ideal for high-stress components including transmission systems, tractor motors, automotive parts, and mining equipment. Common applications include:
  • High-load shafts and connecting rods
  • Carburized gears and pinions
  • Engine camshafts and crankshafts
  • Bearings and piston rings
  • Surface-hardened wear-resistant components
  • Oil drilling equipment and mining tools
Forging Guidelines
  • Carefully preheat material
  • Raise forging temperature to 1150-1200°C
  • Maintain temperature above 850°C during forging
Why Choose Our 34CrNiMo6 Alloy Steel?
  • Quality Assurance: Materials sourced directly from certified steel manufacturers
  • Competitive Pricing: High-quality products at affordable prices
  • Fast Delivery: Priority treatment for all orders with shortest lead times
  • ISO 9001 Certified: Continuous quality management system improvements
  • Comprehensive Services: Cutting, sizing, machining, and heat treatment available
  • Flexible Orders: Any size, any length with fast shipping
