Cold Rolled 316 Stainless Steel Sheet with Polished Surface and Corrosion Resistance for Construction
Cold Rolled 316 Stainless Steel Sheet with Polished Surface and Corrosion Resistance for Construction
Specifications
Certification :
AISI
MOQ :
30 kg
Price :
US $2.85-3.85 / kg
Model NO. :
316
Shape :
Flat
Technique :
Cold Rolled
Surface Treatment :
Polished
Specification :
1220*2440, 1500*3000, 1500*6000, 2000*6000mm
Thickness :
0.3mm-25mm
Width :
1000,1219,1250,1500mm
Carbon Content :
≤0.03
Manganese Content :
≤2.0
Nickel Content :
10.0-14.0
Chromium Content :
16.0-18.0
Molybdenum Content :
2.0-3.0
Yield Strength :
≥170 N/MM2
Tensile Strength :
≥485 N/MM2
Elongation :
≥40%
Description
316 Stainless Steel Sheet
High-quality 316 stainless steel sheets designed for construction applications, available in thicknesses from 0.25mm to 3mm.
Product Features
  • 316L: Low carbon version offering excellent resistance to inter-granular corrosion in corrosive environments
  • 316Ti: Titanium-stabilized grade with excellent formability and good impact properties at extremely low temperatures
Product Specifications
Commodity: 300 Series 316L Stainless Steel Plate
Grades Available: 301, 302, 304, 304L, 316, 316L, 310S, 309S, 321, 310
Brands: TISCO, BAOSTEEL, POSCO, JISCO, LISCO
Certifications: SGS, BV, IQI, TUV, ISO
Thickness: 0.3mm - 25mm
Width: 1000mm, 1219mm, 1250mm, 1500mm (custom widths available)
Standards: ASTM, AISI, SUS, JIS, EN, DIN, GB, ASME
Chemical Composition & Properties
Chemical Composition (wt%)
Specification Grade C Mn Ni Cr Mo Ti
ASTM/JIS 316L/022Cr17Ni12Mo2 ≤0.03 ≤2.0 10.0-14.0 16.0-18.0 2.0-3.0 -
JIS SUS310S ≤0.03 ≤2.0 12.0-15.0 16.0-18.0 2.0-3.0 -
ASTM/JIS 316Ti/SUS 316Ti ≤0.08 ≤2.0 10.0-14.0 16.0-18.0 2.0-3.0 5*(C+N)-0.7
Mechanical & Physical Properties
Spec Grade Y.S (N/mm²) T.S (N/mm²) EL (%) HRB Specific Heat (J/gºC) Modulus of Elasticity (KN/mm²)
ASTM/GB 316L/022Cr17Ni12Mo2 ≥170 ≥485 ≥40 ≤95 0.5 193
JIS SUS316L ≥175 ≥480 ≥40 ≤90 193
ASTM 316Ti ≥205 ≥515 ≥40 ≤95 0.5 200
Applications
316L: Widely used in corrosion-susceptible environments and mechanical components requiring corrosion resistance without post-forming heat treatment
316Ti: Primarily used for industrial components requiring enhanced performance characteristics
Packaging & Delivery
MOQ: 1 Ton
Price Terms: FOB, CIF, CNF
Payment: L/C at sight or 30% TT deposit
Delivery Time: 5-10 days after deposit receipt
Samples: Free samples available (express charges borne by customer)
Container Specifications
Standard export packaging with Kraft paper and wooden trays
20ft GP: 5.8m × 2.13m × 2.18m (24-26 CBM, 23 MTS)
40ft GP: 11.8m × 2.13m × 2.18m (54 CBM, 27 MTS)
40ft HG: 11.8m × 2.13m × 2.72m (68 CBM, 27 MTS)
Stainless Steel Grade Comparison
Grade C Si Mn P S Ni Cr Mo Hardness
201 ≤0.15 ≤1.00 5.5-7.5 ≤0.060 ≤0.030 3.5-5.5 16.0-18.0 - HB≤241, HRB≤100, HV≤240
304 ≤0.08 ≤1.00 ≤2.00 ≤0.045 ≤0.03 8.0-11.0 18.00-20.00 - HB≤187, HRB≤90, HV≤200
316 ≤0.08 ≤1.00 ≤2.00 ≤0.045 ≤0.03 10.00-14.00 16.0-18.0 2.00-3.00 HB≤187, HRB≤90, HV≤200
316L ≤0.03 ≤1.00 ≤2.00 ≤0.045 ≤0.03 10.00-14.00 16.0-18.0 2.00-3.00 HB≤187, HRB≤90, HV≤200
410 ≤0.15 ≤1.00 ≤1.25 ≤0.060 ≤0.030 ≤0.060 11.5-13.5 - HB≤183, HRB≤88, HV≤200
430 ≤0.12 ≤1.00 ≤1.25 ≤0.040 ≤0.03 - 16.00-18.00 - HB≤183, HRB≤88, HV≤200

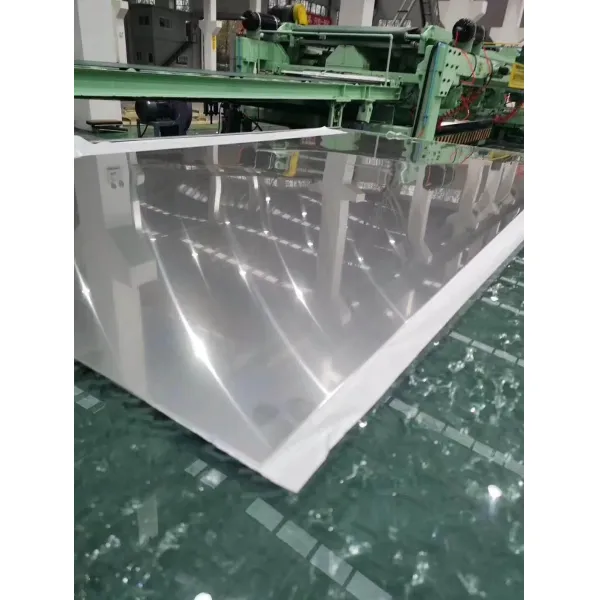

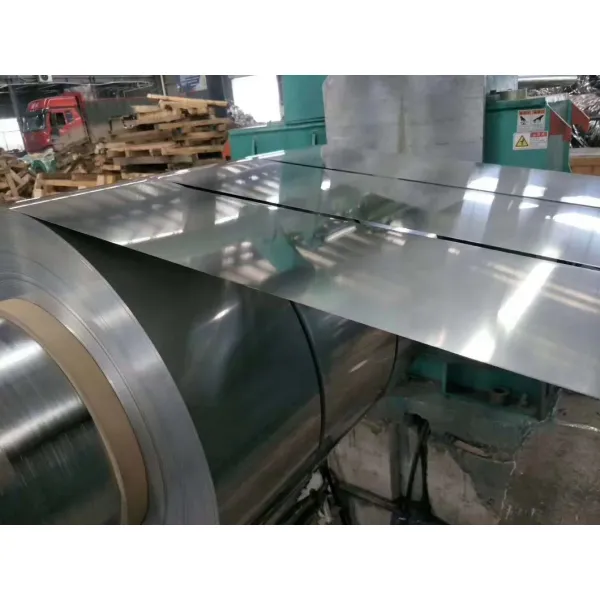

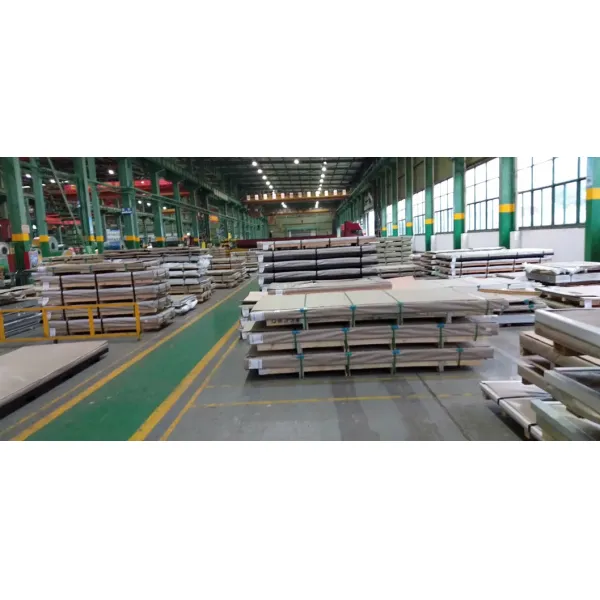

Product Images
Cold Rolled 316 Stainless Steel Sheet with Polished Surface and Corrosion Resistance for Construction Cold Rolled 316 Stainless Steel Sheet with Polished Surface and Corrosion Resistance for Construction Cold Rolled 316 Stainless Steel Sheet with Polished Surface and Corrosion Resistance for Construction
