Cold Rolled SUS444 Stainless Steel Sheet with Bright Surface and Corrosion Resistance
Cold Rolled SUS444 Stainless Steel Sheet with Bright Surface and Corrosion Resistance
Cold Rolled SUS444 Stainless Steel Sheet with Bright Surface and Corrosion Resistance
Cold Rolled SUS444 Stainless Steel Sheet with Bright Surface and Corrosion Resistance
Cold Rolled SUS444 Stainless Steel Sheet with Bright Surface and Corrosion Resistance
Cold Rolled SUS444 Stainless Steel Sheet with Bright Surface and Corrosion Resistance
Cold Rolled SUS444 Stainless Steel Sheet with Bright Surface and Corrosion Resistance
Cold Rolled SUS444 Stainless Steel Sheet with Bright Surface and Corrosion Resistance
Cold Rolled SUS444 Stainless Steel Sheet with Bright Surface and Corrosion Resistance
Cold Rolled SUS444 Stainless Steel Sheet with Bright Surface and Corrosion Resistance
Cold Rolled SUS444 Stainless Steel Sheet with Bright Surface and Corrosion Resistance
Cold Rolled SUS444 Stainless Steel Sheet with Bright Surface and Corrosion Resistance
Cold Rolled SUS444 Stainless Steel Sheet with Bright Surface and Corrosion Resistance
Cold Rolled SUS444 Stainless Steel Sheet with Bright Surface and Corrosion Resistance
Specifications
Certification :
AISI, ASTM
MOQ :
100 kg
Price :
US $2.55-3.5 / kg
Model NO. :
444
Shape :
Flat
Technique :
Cold Rolled
Surface Treatment :
Bright
Specification :
1220*2440, 1500*3000, 1500*6000, 2000*6000mm
Production Capacity :
500000kgs
Carbon Content :
0.025 max
Chromium Content :
17.50-19.50
Molybdenum Content :
1.75-2.50
Density :
7.75 g/cm3
Electrical Resistivity :
22.50 (57) microhm-in
Thermal Conductivity :
15.5 (26.8) BTU/hr/ft2/ft/°F
Tensile Strength :
60 KSI min (414 MPa min)
Yield Strength :
40 KSI min (276 MPa min)
Elongation :
22% min
Description
SUS444 Inox Sheet 444 Stainless Steel Sheet
SUS444 stainless steel sheet, also known as AISI 444 Inox Sheet, is specifically designed for stainless steel water tank applications. This material conforms to EN 1.4521 / AISI 444 standards and represents a dual stabilized ferritic stainless steel containing 2% molybdenum.
Material Overview
Grade 4521 is equivalent to European code 1.4521 and American standard marking ASTM 444. With molybdenum alloying and 18% chromium content, this grade offers excellent corrosion properties comparable to austenitic grade 4401/4404 in various applications. The stabilization using both titanium and niobium ensures a fully stabilized microstructure with improved surface properties and elongation to fracture values up to 30% (A80).
Key Applications
  • Food processing equipment
  • Brewery and wine making equipment
  • Hot-water tanks and heat-exchanger tubing
  • Automotive components
  • Solar water heaters
  • Drinking-water environment pipes
Technical Properties
Chemical Composition (Typical)
Element Content
Carbon 0.025 max
Manganese 1.00 max
Silicon 0.60
Chromium 17.50-19.50
Nickel 01.00 max
Molybdenum 1.75-2.50
Titanium + Columbium 0.20 + 4x (Carbon+ Nitrogen) min-0.80 max
Phosphorus 0.040 max
Sulfur 0.030 max
Iron Balance
Physical Properties
Property Value
Density 0.28 lbs/in³ (7.75 g/cm³)
Electrical Resistivity 22.50 microhm-in (57 microhm-cm) at 68°F (20°C)
Specific Heat 0.102 BTU/lb·°F (0.427 kJ/kg·K) at 32-212°F (0-100°C)
Thermal Conductivity 15.5 BTU/hr/ft²/ft/°F (26.8 W/m·K) at 212°F (100°C)
Mean Coefficient of Thermal Expansion 6.1 x 10⁻⁶ in/in/°F (11.0 µm/m·K) at 32-212°F (0-100°C)
Modulus of Elasticity 29 x 10³ ksi (200 x 10³ MPa) in tension
Magnetic Permeability Magnetic
Melting Range 2700-2790°F (1482-1532°C)
Mechanical Properties at Room Temperature (Annealed)
Property Value
Ultimate Tensile Strength 60 KSI min (414 MPa min)
Yield Strength (0.2% offset) 40 KSI min (276 MPa min)
Elongation 22% min
Hardness Rb 90 max
Available Forms
Coil - Strip, Foil, Ribbon Wire - Profile, Round, Flat, Square
Surface Finishes
  • #1 - Hot rolled annealed and descaled for applications where smooth decorative finish is not required
  • #2D - Dull finish for deep drawn parts requiring lubricant retention
  • #2B - Smooth finish with brighter appearance than 2D
  • #BA - Bright annealed cold rolled
  • #CBA - Course bright annealed cold rolled matte finish
  • #2 - Cold Rolled
  • #2BA - Smooth glossy finish for lightly formed applications
  • Polished - Various grit finishes for specific requirements
Not all finishes are available for all alloys
Manufacturing Characteristics
Type 444 provides excellent formability and can be readily deep drawn and spin formed. It features excellent cold-forming capabilities with lower work hardening rate than standard austenitic grades, making it more easily cold formed and machined. The material is non-heat treatable and offers superior resistance to chloride stress corrosion cracking.

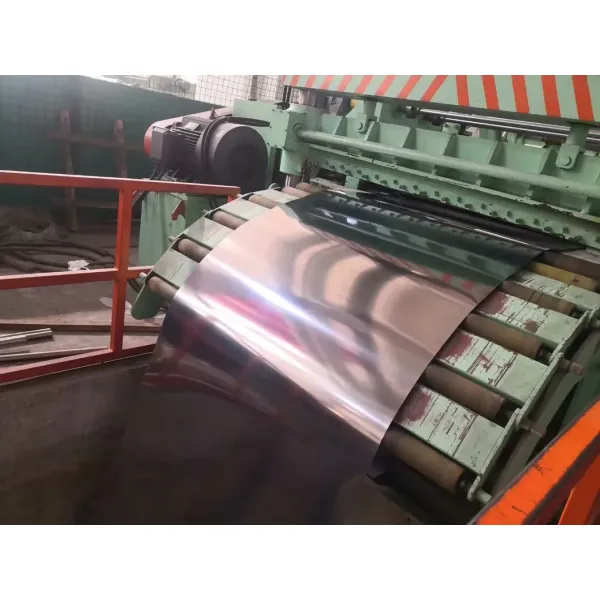

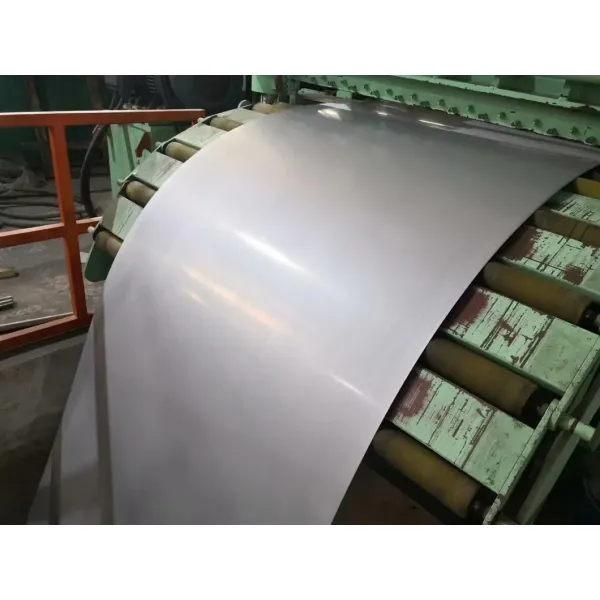

Product Images
Cold Rolled SUS444 Stainless Steel Sheet with Bright Surface and Corrosion Resistance Cold Rolled SUS444 Stainless Steel Sheet with Bright Surface and Corrosion Resistance Cold Rolled SUS444 Stainless Steel Sheet with Bright Surface and Corrosion Resistance Cold Rolled SUS444 Stainless Steel Sheet with Bright Surface and Corrosion Resistance
