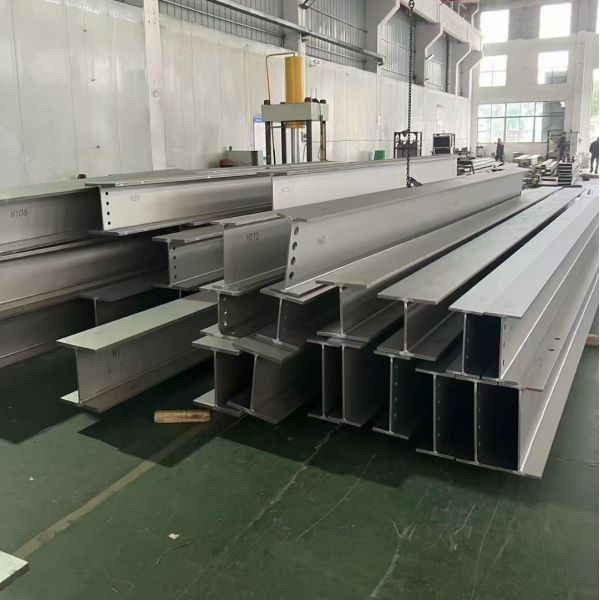

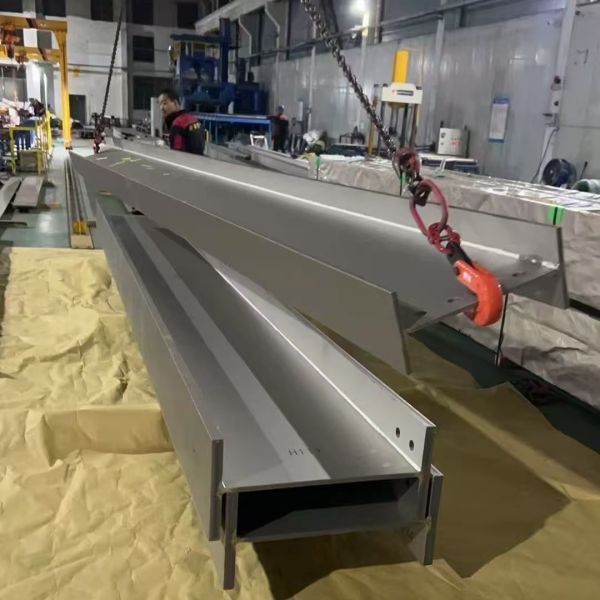

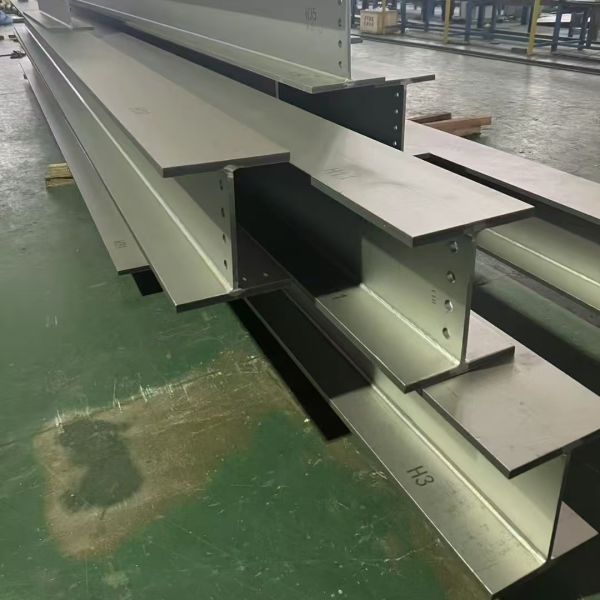

Precision-Welded Stainless Steel H-Section Beams for Industrial Construction

Engineered for strength, durability, and reliability in the most demanding environments, precision-welded stainless steel H-section beams are a cornerstone of modern industrial construction. Combining advanced fabrication techniques with high-performance stainless steel alloys—such as Grade 304, 316L, and 310S—these structural members deliver exceptional load-bearing capacity, corrosion resistance, and dimensional accuracy tailored to heavy-duty applications.

Why Precision Welding Matters

Unlike traditional hot-rolled H-beams, precision-welded H-sections are fabricated from high-quality stainless steel plates using automated welding processes such as submerged arc welding (SAW) or laser hybrid welding. This method ensures:

• Tighter dimensional tolerances (±1–2 mm on height/flange width)
• Uniform weld penetration with minimal distortion
• Custom cross-sections not limited by mill rolling capabilities
• Optimized weight-to-strength ratios, reducing material waste
• Smooth surface finishes, ideal for hygienic or aesthetic applications

These advantages make precision-welded H-beams the preferred choice for projects where performance, longevity, and exact specifications are non-negotiable.

Material Grades: Performance at a Glance

Pro Tip: Choose 316L for coastal or chemical exposure; select 310S when operating above 900°C.

Technical Specifications

• Standards Compliance:

  • ASTM A276 / A484 (USA)
  • EN 10088-3 (Europe)
  • GB/T 33814-2017 (China)
  • ISO 15510

• Available Dimensions:

  • Height (H): 100 mm – 1000 mm
  • Flange Width (B): 50 mm – 500 mm
  • Web Thickness (tw): 4 mm – 30 mm
  • Flange Thickness (tf): 5 mm – 35 mm
  • Standard Lengths: 6 m, 9 m, 12 m (custom cut-to-length available)

• Tolerances (per GB/T 33814):

  • Height & Flange Width: ±2.0 mm
  • Thickness: ±0.5 mm
  • Straightness: ≤1.5 mm per meter

• Surface Finishes:

  • Pickled & Passivated (standard)
  • 2B, BA, No.4 (brushed), or mirror polish (optional)

Industrial Applications

1. Chemical & Petrochemical Plants
   H-beams made from 316L resist pitting and crevice corrosion from acids, solvents, and salt-laden atmospheres—critical for pipe racks, support structures, and reactor frames.

2. Marine & Offshore Infrastructure
   Withstands constant salt spray and humidity. Used in dock cranes, platform walkways, and subsea support systems.

3. High-Temperature Processing
   310S H-sections maintain structural integrity in kilns, incinerators, and heat-treatment furnaces—even under cyclic thermal stress.

4. Pharmaceutical & Food Manufacturing
   Smooth, non-porous surfaces prevent bacterial growth. Easily cleaned and compliant with FDA and GMP standards.

5. Heavy-Duty Industrial Buildings
   Factory roofs, crane runways, and seismic-resistant frames benefit from the high strength and low maintenance of stainless H-beams.

Quality Assurance & Testing Protocols

Every beam undergoes multi-stage verification:

• Spectrometric analysis for precise alloy composition
• Tensile, bend, and impact testing per ASTM/EN standards
• Non-destructive testing (NDT): Ultrasonic (UT) or radiographic (RT) inspection of critical welds
• Salt spray testing (ASTM B117) for corrosion validation
• Dimensional laser scanning for geometric accuracy

Full documentation includes Mill Test Reports (MTR), EN 10204 3.1 certificates, and weld procedure specifications (WPS/PQR).

Sustainability & Lifecycle Value

Stainless steel H-beams are 100% recyclable and require zero painting or coating, eliminating VOC emissions and maintenance downtime. Their service life often exceeds 50+ years—even in aggressive environments—delivering unmatched ROI compared to carbon steel alternatives.

Ordering Guide

To request a quote or technical consultation, provide:

• Desired grade (304 / 316L / 310S)
• Cross-section dimensions (H × B × tw × tf)
• Required length and quantity
• Surface finish and certification needs

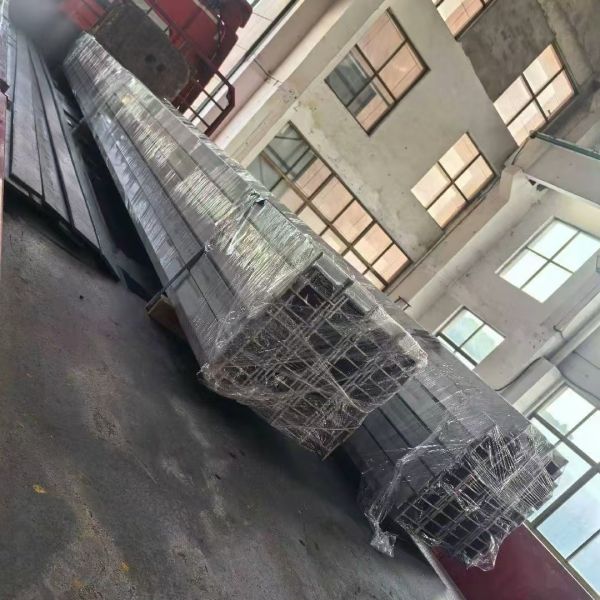

• Special requirements (e.g., NDT level, packaging for export)

We support global logistics, just-in-time delivery, and BIM-compatible CAD models for seamless integration into your design workflow.

Conclusion

In industrial construction, failure is not an option. Precision-welded stainless steel H-section beams offer the perfect fusion of engineering excellence and material science—ensuring safety, sustainability, and structural integrity for generations. Whether battling corrosive chemicals, extreme heat, or relentless ocean air, these beams stand firm where others degrade.
