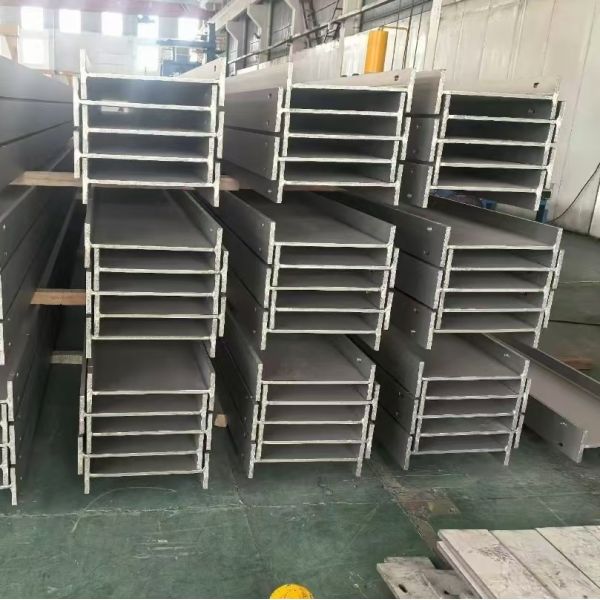

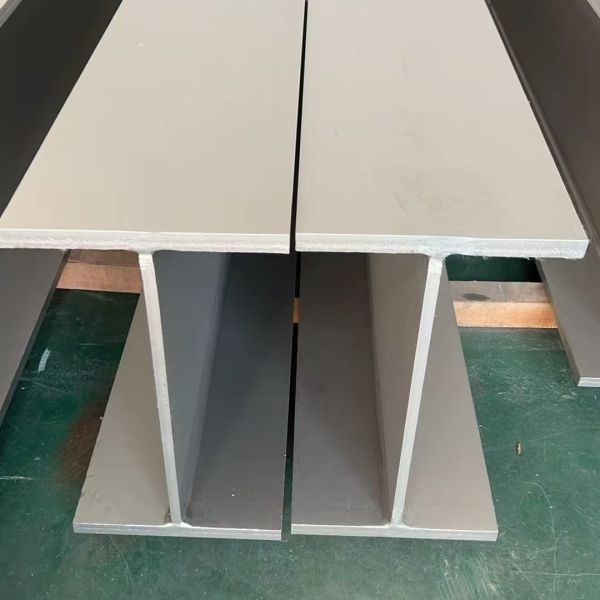

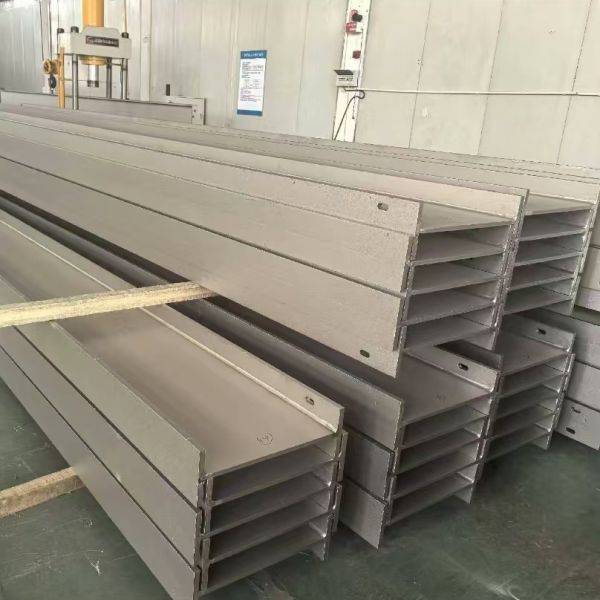

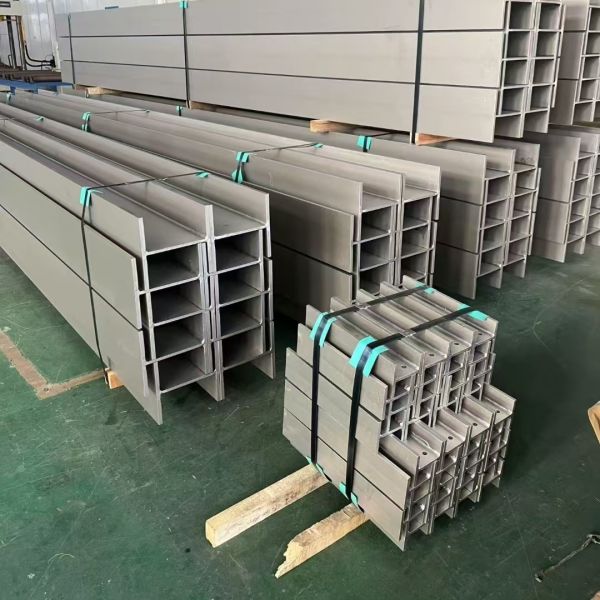

Custom Size Welded Stainless Steel H-Beams Grade 304 316L 321 with Excellent Load-Bearing Capacity

Products Specification

Custom Size Welded Stainless Steel H-Beams – Grade 304 / 316L / 321 with Excellent Load-Bearing Capacity

Engineered for performance, precision, and longevity, custom-size welded stainless steel H-beams in Grades 304, 316L, and 321 offer superior structural integrity for demanding architectural, industrial, and infrastructure projects. Unlike standard hot-rolled sections limited by mill availability, our fully customizable H-beams are fabricated to your exact dimensional requirements—ensuring optimal load distribution, material efficiency, and design flexibility without compromising corrosion resistance or mechanical strength.

Why Choose Custom-Welded H-Beams?

Standard structural sections often force engineers into design compromises. With custom-welded stainless H-beams, you gain:

• Tailored geometry: Match beam dimensions precisely to load, span, and space constraints.
• Weight optimization: Reduce material usage while maintaining or enhancing strength.
• Seamless integration: Perfect fit for complex joints, curved structures, or retrofit projects.
• High surface quality: No mill scale; ideal for exposed architectural applications.
• Short lead times: Fabricated on-demand—no waiting for mill production cycles.

All beams are manufactured using automated submerged arc welding (SAW) or TIG/MIG processes under strict quality protocols, ensuring full penetration, minimal distortion, and consistent mechanical properties.

Grade Comparison: 304 vs. 316L vs. 321

Technical Specifications

• Manufacturing Standards:

  • ASTM A276 / A484 (USA)
  • EN 10088-3 (Europe)
  • GB/T 33814-2017 (China)
  • ISO 15510

• Custom Dimensions Available:

  • Height (H): 80 mm – 1200 mm
  • Flange Width (B): 50 mm – 600 mm
  • Web Thickness (tw): 4 mm – 35 mm
  • Flange Thickness (tf): 5 mm – 40 mm
  • Length: 1 m to 15 m (cut-to-length with ±2 mm tolerance)

• Dimensional Tolerances:

  • Height & Flange Width: ±2.0 mm
  • Thickness: ±0.5 mm
  • Straightness: ≤1.5 mm per meter
  • Twist: ≤1.0° per 6 meters

• Surface Finishes:

  • Standard: Pickled & passivated
  • Optional: 2B, BA, No.4 brushed, mirror polish, or abrasive blast

Mechanical Properties (Typical Values)

Properties may be enhanced through cold working if required.

Applications by Industry

• Architecture & Urban Design:
  Custom facades, pedestrian bridges, and seismic frames where aesthetics meet durability (Grade 304/321).

• Chemical & Pharmaceutical:
  Cleanroom support structures, reactor platforms, and piping racks requiring hygienic, non-contaminating surfaces (Grade 316L).

• Aerospace & Power Generation:
  Exhaust manifolds, turbine housings, and boiler supports operating at elevated temperatures (Grade 321).

• Marine & Coastal Infrastructure:
  Piers, boardwalks, and offshore access platforms exposed to salt spray (Grade 316L preferred).

• Industrial Retrofit Projects:
  Replacement beams in confined spaces where off-the-shelf sizes won’t fit—custom H-beams ensure seamless integration.

Quality Assurance & Certification

Every custom order includes:

• Material traceability (heat number tracking)
• Spectrometric chemical analysis
• Tensile & bend testing per ASTM E8/E290
• Weld inspection: Visual + ultrasonic testing (UT) as standard; RT/PT available
• Documentation: Mill Test Report (MTR), EN 10204 3.1/3.2, RoHS/REACH compliance

Optional: Third-party inspection (e.g., SGS, Bureau Veritas), BIM modeling, finite element analysis (FEA) validation.

Ordering Guide

To request a quote or technical consultation, please provide:

1. Alloy Grade: 304, 316L, or 321
2. Cross-Section: H × B × tw × tf (e.g., 400×200×10×16 mm)
3. Length & Quantity
4. Surface Finish Preference
5. Certification Requirements
6. Special Notes: e.g., “for high-temp service,” “marine exposure,” “architectural finish”

We offer rapid prototyping, small-batch production, and large-scale project fulfillment with global logistics support.

Conclusion

When standard structural sections fall short, custom-size welded stainless steel H-beams in Grades 304, 316L, and 321 empower engineers to build smarter, lighter, and longer-lasting structures. Backed by precision fabrication, material science expertise, and rigorous quality control, these beams deliver excellent load-bearing capacity without sacrificing corrosion resistance or design freedom.

Your vision. Your dimensions. Our precision.
Specify custom stainless H-beams for projects that demand more than off-the-shelf solutions.
