Specifications
Brand Name :
TISCO,Baosteel,WISCO,CHINA STEEL UNION
Model Number :
0.08mm-10mm or customized thickness
Certification :
ISO9001,SGS, ASTM, ASME
Place of Origin :
CHINA
MOQ :
1000Kilogram
Price :
799-1699USD
Payment Terms :
T/T,L/C,Western Union,MoneyGram
Supply Ability :
800000KG/15Days
Delivery Time :
2-3Days
Packaging Details :
Steel strip + kraft paper + fumigated wooden box export exquisite packaging
Special Use :
High-strength Steel Plate
Dimension :
Accept custom
Price Terms :
Fob CFR CIF
Product Keywords :
metal hose clamps
Origin :
Shandong, China
Technical Standard :
JIS,AISI, ASTM,GB,DIN,EN
Description

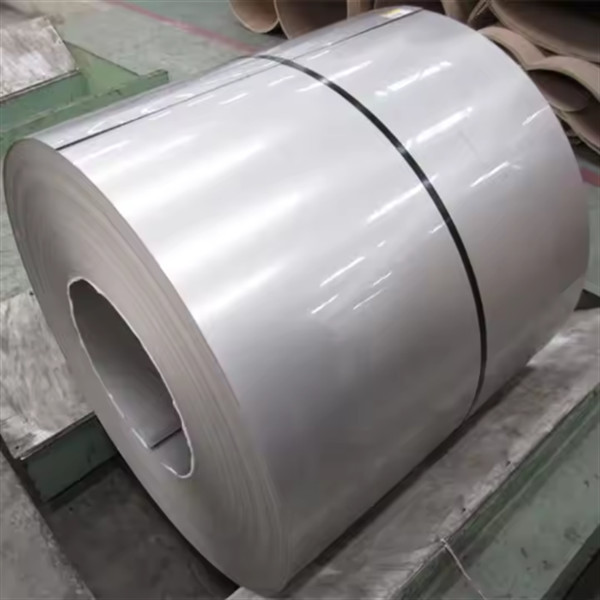

Stainless Steel Coil Ultra-Thin 0.1mm Medical Grade 316L ​ISO 13485 Certified


Our ​Ultra-Thin 0.1mm Medical Grade 316L Stainless Steel Coil is precision-engineered for the healthcare and electronics industries, where micron-level thickness, biocompatibility, and absolute material purity are non-negotiable. Certified under ​ISO 13485 (Medical Devices Quality Management), this coil meets the stringent requirements for surgical instruments, implantable devices, and diagnostic equipment.


The ​316L alloy (low carbon variant) ensures exceptional resistance to bodily fluids, sterilization processes, and corrosive cleaning agents. With a flawless surface finish (Ra ≤0.05μm), it eliminates bacterial adhesion risks while enabling high-precision stamping, laser cutting, and micro-forming for cutting-edge medical technologies.


Stainless Steel Coil Ultra-Thin 0.1mm Medical Grade 316L ​ISO 13485 Certified


2. Detailed Specifications

Parameter Details
Material AISI 316L (UNS S31603)
Element Composition Cr: 16-18%, Ni: 10-14%, Mo: 2-3%, C: ≤0.03%, Mn: ≤2%, Si: ≤1%, Fe: Balance
Thickness 0.1mm (±0.002mm tolerance)
Width 10mm – 500mm (customizable)
Surface Finish Mirror Polish (Ra ≤0.05μm) or Electropolished
Tensile Strength 485 MPa (min)
Yield Strength 170 MPa (min)
Elongation 40% (min)
Certifications ISO 13485, ASTM A240, ISO 9001, REACH, FDA 21 CFR 177.1520 (food/medical)
Applications Micro-surgical tools, implantable sensors, flexible electronics, lab-on-a-chip devices

3. Advantages of Importing Our Ultra-Thin 316L Coil

Core Benefits

  • Medical-Grade Precision: Cold-rolled to ±0.002mm tolerance using nano-level rolling mills for flawless consistency.
  • Biocompatibility: Passes ISO 10993-5 cytotoxicity testing, ensuring safety for long-term human contact.
  • Fast Turnaround: 7-10 day lead time for custom widths, backed by 24/7 emergency order support.
  • Cost Savings: ​25% lower cost than U.S./EU suppliers with identical ISO 13485 certification.

Unique Selling Points

  • Zero Contamination Guarantee: Produced in ISO Class 7 cleanrooms with full material traceability.
  • Advanced Surface Treatments: Electropolishing or PVD coatings available for enhanced corrosion resistance.
  • Custom Packaging: Individually wrapped in antistatic, nitrogen-filled pouches to prevent oxidation.
  • Global Compliance: Meets FDA (food/medical contact) and EU MDR (Medical Device Regulation) standards.
