Stainless Steel Coil 0.4mm-1.2mm RAL Color Codes AISI 304 ​Material
Stainless Steel Coil 0.4mm-1.2mm RAL Color Codes AISI 304 ​Material
Specifications
Brand Name :
TISCO，Baosteel，WISCO，CHINA STEEL UNION
Model Number :
0.08mm-10mm or customized thickness
Certification :
ISO9001,SGS, ASTM, ASME
Place of Origin :
CHINA
MOQ :
1000Kilogram
Price :
799-1699USD
Payment Terms :
T/T,L/C,Western Union,MoneyGram
Supply Ability :
800000KG/15Days
Delivery Time :
2-3Days
Packaging Details :
Steel strip + kraft paper + fumigated wooden box export exquisite packaging
Specification :
width: 1219mm or as required
Custom Cycle :
7-15 Days
Wdith :
100-1500mm
Shape :
Coil and Strip
Processing Service :
Welding, Punching, Cutting, Bending
Tickness :
0.3-1.0mm
Description

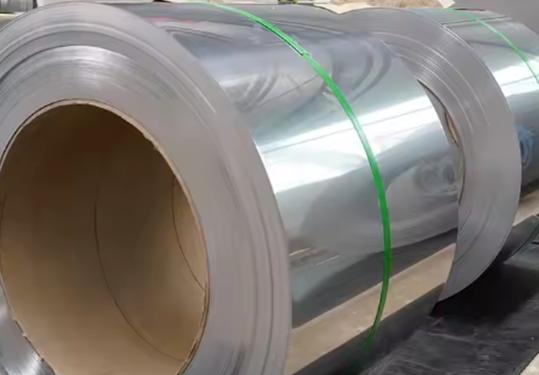

Stainless Steel Coil 0.4mm-1.2mm RAL Color Codes AISI 304 ​Material



Pre-Painted RAL Colors Stainless Steel Coil combines aesthetic versatility with industrial-grade durability, designed for architectural, signage, and outdoor applications demanding vibrant colors and long-term weather resistance. Available in ​0.4mm to 1.2mm thicknesses, this coil is pre-coated with high-quality PVDF (polyvinylidene fluoride) or polyester paints in ​RAL color codes, ensuring UV resistance, color retention, and protection against corrosion, salt spray, and pollution.

Stainless Steel Coil 0.4mm-1.2mm RAL Color Codes AISI 304 ​Material

The stainless steel substrate (Grade 304 or 316L) provides structural integrity, while the advanced coating technology guarantees a flawless finish for façades, roofing, and decorative structures. Compliant with ​ISO 12944 and ​AAMA 2604 standards, it is ideal for projects where aesthetics and outdoor performance are paramount.

​2. Detailed Specifications

​Parameter ​Details
​Material AISI 304 / 316L (optional)
​Element Composition ​304: Cr: 18-20%, Ni: 8-10.5%, Mn: ≤2%, C: ≤0.08%
316L: Cr: 16-18%, Ni: 10-14%, Mo: 2-3%, C: ≤0.03%
​Thickness 0.4mm – 1.2mm (±0.02mm tolerance)
​Width 1000mm – 1500mm (standard), customizable
​Coating Type PVDF (25-30μm) or Polyester (15-20μm) with primer
​Color Options Full RAL color palette (e.g., RAL 1018, RAL 7021) + custom Pantone匹配
​Surface Hardness 2H-3H (pencil hardness)
​Certifications ISO 12944, AAMA 2604, QUALICOAT Class 2, EN 1396 (coating adhesion)
​Applications Building façades, solar shading systems, signage, outdoor furniture

​

FAQ:


Q: Are you a manufacturer or trading company?


A: We are a factory with 12 years of sales experience.


Q: Where is your factory located?


A: Our factory is located in Wuxi City, Jiangsu Province, China.


Q: How can I get samples?


A: There are always pre-production samples before mass production; there is always final inspection before shipment;


Q: What payment methods do you offer?


A: Accepted delivery terms: FOB, CFR, CIF, EXW, Express; Accepted payment currencies: USD, RMB; Accepted payment methods: T/T, L/C,


Credit Card, Western Union, Cash;


Q: What are your after-sales service details?


A: 1) We provide necessary technical support to all customers, such as material properties and heat treatment data suggestions.


2) We provide suitable steel technical parameters for customers in Germany, the United States, Japan, the United Kingdom and other countries.
