Specifications
Brand Name :
JISCO、BAO STEEL、DELONG
Model Number :
304
Certification :
ISO9001
Place of Origin :
China
MOQ :
1MT
Payment Terms :
T/T, L/C
Supply Ability :
2000 Ton/Tons per Month
Delivery Time :
5-20 days
Packaging Details :
Water-proof paper+Wooden Pallets or Clients' requirement
Application :
Construction, Scaffolding, Engineering
Technique :
Cold Rolled/Hot Rolled
Standard :
GB,AISI,JIS,DIN,ASTM
Grade :
201/304/321/316/316L/310S
Thickness :
2.0mm-20mm
Edge :
Mill Edge,Slit Edge
Tolerance :
±0.05mm
Type :
Equal
Surface finish :
No.1/No.3/No.4/HL/1D/8K
Technology: :
Hot rolling/welding/bending
Packing :
Nylon bag, wooden frame, steel wire rope
Roll weight :
According to customer requirements
Description

Stainless steel H-steel is an H-shaped steel product produced from stainless steel material. It is structurally stronger and more stable than traditional steel, with excellent corrosion resistance and high temperature strength, and can be widely used in marine engineering, construction, manufacturing and other fields. In addition, due to its beautiful appearance and long life, stainless steel H-steel is also commonly used in high-grade decoration, home design and other occasions.

H beams are also long strip steels, which are mainly used in industries like architectural structures, bridge buildings, vehicles, brackets, machinery and so on.

Product Name Thickness(mm) Width(mm)
Stainless Steel Flat Bar 1.5 12
1.5~3.0 10~200
4.0~5.0 16~200
6 19~200
8.0~9.0 25~200
10.0~12 30~200
14 35~200
15.0~16.0 40~200
Stainless Steel Angle Bar 2 15
3.0~4.5 25
5.0~6.0 30
8 53
9.0~10.0 62
12 75
14.0~16.0 94

Product Name Size(mm) Web Thickness(mm) Flange Thickeness (mm) Length
Stainless Channels 50*25 3 6 5 -12m
75*40 3.8~5 7
100*50 3.8~5 6.0~7.5
120*65 5.2~6 6.8~8
150*75 5.5~6.5 7.3~10
200*80 7.5 11
250*90 9 13
300*90 9 13

H Beams
Size range 100x100 to 350x350
Standard length 12m
Flange thickness range 6mm to 12mm
Web thickness range 8mm to 19mm

Product Name Product varieties Thickness(mm)
Wire Rod Round Bar Stainless steel wire rods Dia5.5 – 38
Stainless steel round bars Dia 60 – 350

Chemical Composition

The typical chemical composition is shown in the table below.


Grade		 C Si Mn P S Ni Cr Mo
201 ≤0.15 ≤0.75 5.5-7.5 ≤0.06 ≤0.03 3.5-5.5 16.0-18.0 -
202 ≤0.15 ≤1.0 7.5-10.0 ≤0.06 ≤0.03 4.0-6.0 17.0-19.0 -
301 ≤0.15 ≤1.0 ≤2.0 ≤0.045 ≤0.03 6.0-8.0 16.0-18.0 -
302 ≤0.15 ≤1.0 ≤2.0 ≤0.035 ≤0.03 8.0-10.0 17.0-19.0 -
304 ≤0.08 ≤1.0 ≤2.0 ≤0.045 ≤0.03 8.0-10.5 18.0-20.0 -
304L ≤0.03 ≤1.0 ≤2.0 ≤0.035 ≤0.03 9.0-13.0 18.0-20.0 -
309S ≤0.08 ≤1.0 ≤2.0 ≤0.045 ≤0.03 12.0-15.0 22.0-24.0 -
310S ≤0.08 ≤1.5 ≤2.0 ≤0.035 ≤0.03 19.0-22.0 24.0-26.0 -
316 ≤0.08 ≤1.0 ≤2.0 ≤0.045 ≤0.03 10.0-14.0 16.0-18.0 2.0-3.0
316L ≤0.03 ≤1.0 ≤2.0 ≤0.045 ≤0.03 12.0-15.0 16.0-18.0 2.0-3.0
321 ≤0.08 ≤1.0 ≤2.0 ≤0.035 ≤0.03 9.0-13.0 17.0-19.0 -
904L ≤2.0 ≤0.045 ≤1.0 ≤0.035 - 23.0-28.0 19.0-23.0 4.0-5.0
2205 ≤0.03 ≤1.0 ≤2.0 ≤0.030 ≤0.02 4.5-6.5 22.0-23.0 3.0-3.5
2507 ≤0.03 ≤0.80 ≤1.2 ≤0.035 ≤0.02 6.0-8.0 24.0-26.0 3.0-5.0
2520 ≤0.08 ≤1.5 ≤2.0 ≤0.045 ≤0.03 0.19-0.22 24.0-26.0 -
410 ≤0.15 ≤1.0 ≤1.0 ≤0.035 ≤0.03 - 11.5-13.5 -
430 0.12 ≤0.75 ≤1.0 ≤0.040 ≤0.03 ≤0.60 16.0-18.0 -

Surface Finish

Finish Thickness Size Characteristics Applications
NO.2B 0.3-6.0mm Width: 1000/1219/1500mm;
Length: any length		 Finished by heat treatment, pickling after cold rolling, followed by skin pass line to be more brighter and smooth surface General Application Medical Instruments,Tableware
No. BA
(Bright Annealed)		 0.3-6.0mm Width: 1000/1219/1500mm;
Length: any length		 Bright heat treatment after cold rolling Kitchen utensil, kitchen ware,architectural purpose
NO.4 satin #4 0.3-3.0mm Width: 1000/1219/1500mm;
Length: any length		 Polishing with No. 150 to No.180 mesh abrasivesThe most popular finishes Milk & Food processing acilities, Hospital Equipment, Bath-tub
NO.8 (8K mirror) 0.3-6.0mm Width: 1000/1219/1500mm;
Length: any length		 A mirror-like reflective surface by polishing with finer abrasives over 800 mesh Reflector, Mirror, Interior-Exterior decoration forbuilding
HL (Hairline) 0.3-6.0mm Width: 1000/1219/1500mm;
Length: any length		 Finished by continuous linear polishing Architectural purposes, escalators, kitchen ware vehicles

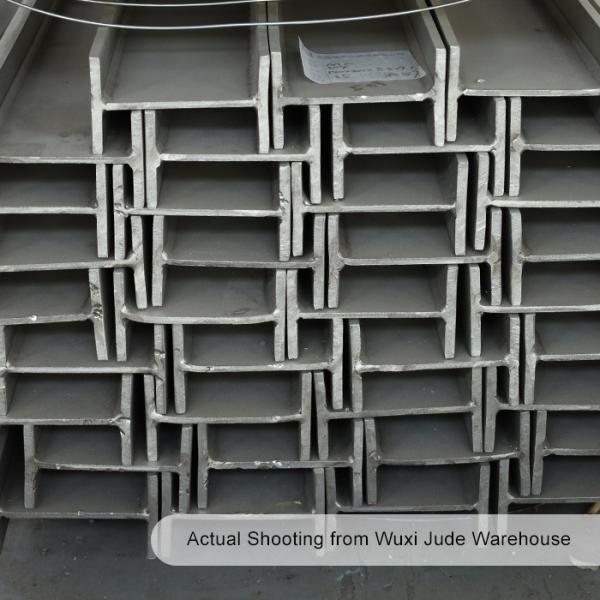

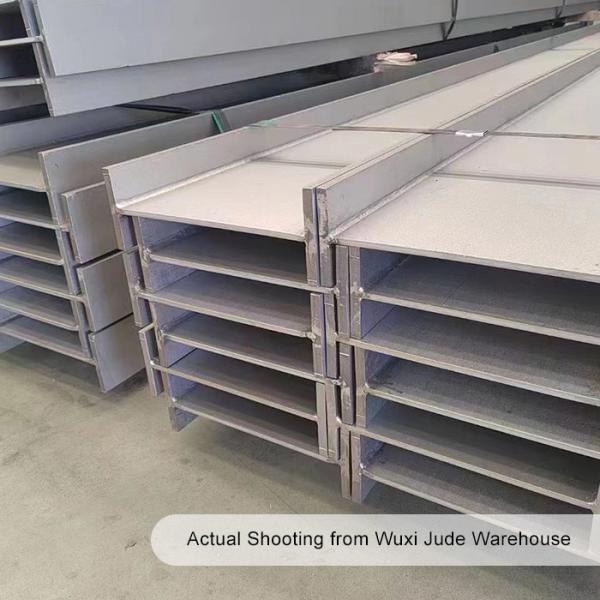

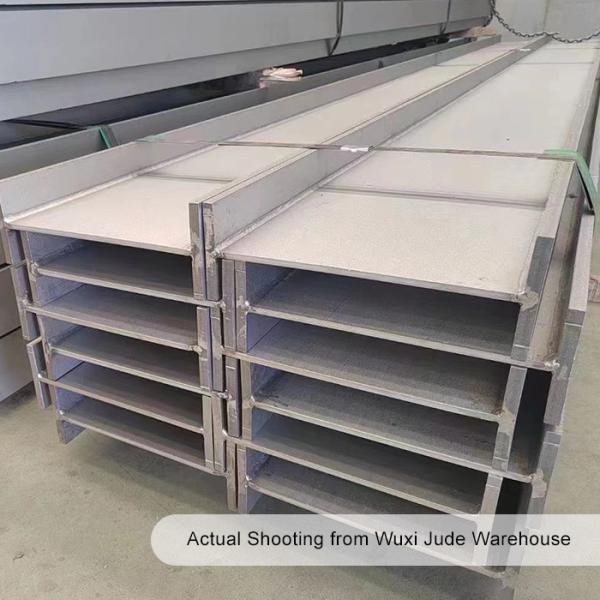

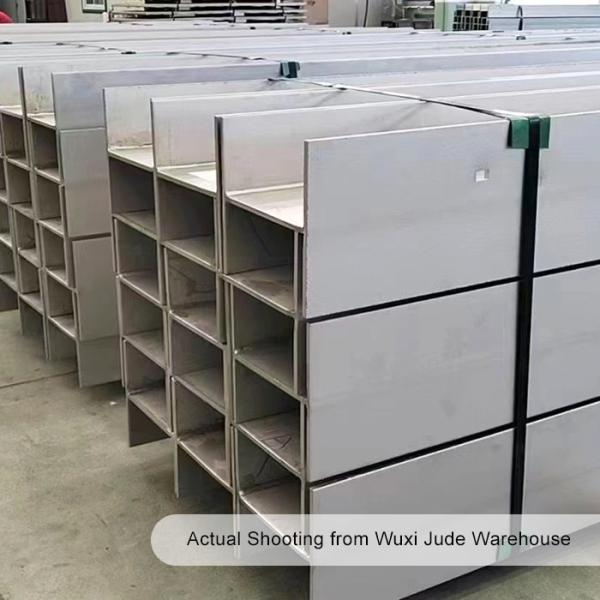

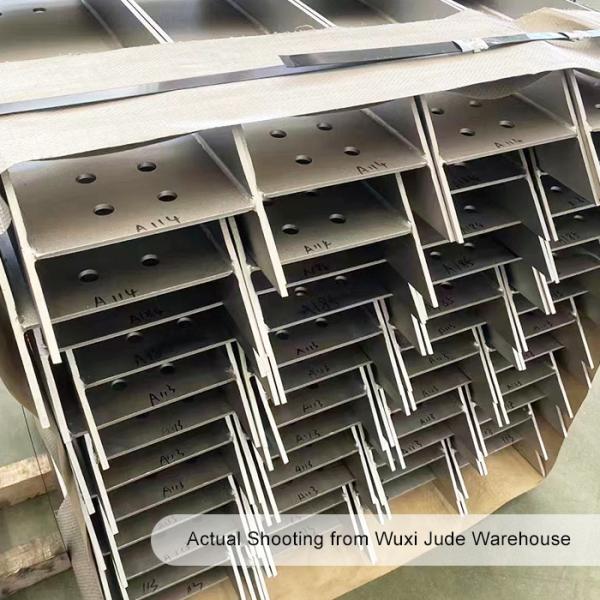

Our Warehouse

Customized Stainless Steel Corner Profile AISI ASTM 201 304 321 316 316L 310S Iron H Shape Beam

JUDE is a comprehensive service provider of full-process solutions for stainless steel products. Fast delivery and competitive prices have earned us market recognition.

JUDE keeps 50,000 tons of regular-size stainless steel corner profile in stock all year round. For the sizes which have stock, we can even do same-day shipments.
