8k Stainless Steel Corner Profile Flat Bar 201 304 316 321 410 AISI ASTM Standard
8k Stainless Steel Corner Profile Flat Bar 201 304 316 321 410 AISI ASTM Standard
8k Stainless Steel Corner Profile Flat Bar 201 304 316 321 410 AISI ASTM Standard
8k Stainless Steel Corner Profile Flat Bar 201 304 316 321 410 AISI ASTM Standard
8k Stainless Steel Corner Profile Flat Bar 201 304 316 321 410 AISI ASTM Standard
8k Stainless Steel Corner Profile Flat Bar 201 304 316 321 410 AISI ASTM Standard
8k Stainless Steel Corner Profile Flat Bar 201 304 316 321 410 AISI ASTM Standard
8k Stainless Steel Corner Profile Flat Bar 201 304 316 321 410 AISI ASTM Standard
8k Stainless Steel Corner Profile Flat Bar 201 304 316 321 410 AISI ASTM Standard
8k Stainless Steel Corner Profile Flat Bar 201 304 316 321 410 AISI ASTM Standard
Specifications
Brand Name :
JISCO、BAO STEEL、DELONG
Model Number :
304
Certification :
ISO9001
Place of Origin :
China
MOQ :
1MT
Payment Terms :
T/T, L/C
Supply Ability :
2000 Ton/Tons per Month
Delivery Time :
5-20 days
Packaging Details :
Water-proof paper+Wooden Pallets or Clients' requirement
Application :
industrial
Technique :
Cold Rolled/Hot Rolled
Standard :
GB,AISI,JIS,DIN,ASTM
Grade :
201/304/321/316/316L/310S/410
Thickness :
2.0mm-20mm
Edge :
Mill Edge,Slit Edge
Tolerance :
±0.05mm
Type :
Equal
Surface finish :
No.1/No.3/No.4/HL/1D/8K
Technology: :
Hot rolling/welding/bending
Packing :
Nylon bag, wooden frame, steel wire rope
Roll weight :
According to customer requirements
Description

Stainless Steel Flat Bar For Sale Stainless Steel 201 304 316 321 410 Flat Bar AISI ASTM Standard

201 stainless steel flat bar is a flat shaped steel product made of stainless steel 201 material through processing and manufacturing. This product has high corrosion resistance and processing performance, and is widely used in furniture, architectural decoration, machinery manufacturing and other fields, such as making door and window fittings, cabinet handrails, bearing parts, etc.

Product Name Thickness(mm) Width(mm)
Stainless Steel Flat Bar 1.5 12
1.5~3.0 10~200
4.0~5.0 16~200
6 19~200
8.0~9.0 25~200
10.0~12 30~200
14 35~200
15.0~16.0 40~200
Stainless Steel Angle Bar 2 15
3.0~4.5 25
5.0~6.0 30
8 53
9.0~10.0 62
12 75
14.0~16.0 94

Product Name Size(mm) Web Thickness(mm) Flange Thickeness (mm) Length
Stainless Channels 50*25 3 6 5 -12m
75*40 3.8~5 7
100*50 3.8~5 6.0~7.5
120*65 5.2~6 6.8~8
150*75 5.5~6.5 7.3~10
200*80 7.5 11
250*90 9 13
300*90 9 13

H Beams
Size range 100x100 to 350x350
Standard length 12m
Flange thickness range 6mm to 12mm
Web thickness range 8mm to 19mm

Product Name Product varieties Thickness(mm)
Wire Rod Round Bar Stainless steel wire rods Dia5.5 – 38
Stainless steel round bars Dia 60 – 350

Chemical Composition

The typical chemical composition is shown in the table below.


Grade		 C Si Mn P S Ni Cr Mo
201 ≤0.15 ≤0.75 5.5-7.5 ≤0.06 ≤0.03 3.5-5.5 16.0-18.0 -
202 ≤0.15 ≤1.0 7.5-10.0 ≤0.06 ≤0.03 4.0-6.0 17.0-19.0 -
301 ≤0.15 ≤1.0 ≤2.0 ≤0.045 ≤0.03 6.0-8.0 16.0-18.0 -
302 ≤0.15 ≤1.0 ≤2.0 ≤0.035 ≤0.03 8.0-10.0 17.0-19.0 -
304 ≤0.08 ≤1.0 ≤2.0 ≤0.045 ≤0.03 8.0-10.5 18.0-20.0 -
304L ≤0.03 ≤1.0 ≤2.0 ≤0.035 ≤0.03 9.0-13.0 18.0-20.0 -
309S ≤0.08 ≤1.0 ≤2.0 ≤0.045 ≤0.03 12.0-15.0 22.0-24.0 -
310S ≤0.08 ≤1.5 ≤2.0 ≤0.035 ≤0.03 19.0-22.0 24.0-26.0 -
316 ≤0.08 ≤1.0 ≤2.0 ≤0.045 ≤0.03 10.0-14.0 16.0-18.0 2.0-3.0
316L ≤0.03 ≤1.0 ≤2.0 ≤0.045 ≤0.03 12.0-15.0 16.0-18.0 2.0-3.0
321 ≤0.08 ≤1.0 ≤2.0 ≤0.035 ≤0.03 9.0-13.0 17.0-19.0 -
904L ≤2.0 ≤0.045 ≤1.0 ≤0.035 - 23.0-28.0 19.0-23.0 4.0-5.0
2205 ≤0.03 ≤1.0 ≤2.0 ≤0.030 ≤0.02 4.5-6.5 22.0-23.0 3.0-3.5
2507 ≤0.03 ≤0.80 ≤1.2 ≤0.035 ≤0.02 6.0-8.0 24.0-26.0 3.0-5.0
2520 ≤0.08 ≤1.5 ≤2.0 ≤0.045 ≤0.03 0.19-0.22 24.0-26.0 -
410 ≤0.15 ≤1.0 ≤1.0 ≤0.035 ≤0.03 - 11.5-13.5 -
430 0.12 ≤0.75 ≤1.0 ≤0.040 ≤0.03 ≤0.60 16.0-18.0 -

Surface Finish

Finish Thickness Size Characteristics Applications
NO.2B 0.3-6.0mm Width: 1000/1219/1500mm;
Length: any length		 Finished by heat treatment, pickling after cold rolling, followed by skin pass line to be more brighter and smooth surface General Application Medical Instruments,Tableware
No. BA
(Bright Annealed)		 0.3-6.0mm Width: 1000/1219/1500mm;
Length: any length		 Bright heat treatment after cold rolling Kitchen utensil, kitchen ware,architectural purpose
NO.4 satin #4 0.3-3.0mm Width: 1000/1219/1500mm;
Length: any length		 Polishing with No. 150 to No.180 mesh abrasivesThe most popular finishes Milk & Food processing acilities, Hospital Equipment, Bath-tub
NO.8 (8K mirror) 0.3-6.0mm Width: 1000/1219/1500mm;
Length: any length		 A mirror-like reflective surface by polishing with finer abrasives over 800 mesh Reflector, Mirror, Interior-Exterior decoration forbuilding
HL (Hairline) 0.3-6.0mm Width: 1000/1219/1500mm;
Length: any length		 Finished by continuous linear polishing Architectural purposes, escalators, kitchen ware vehicles

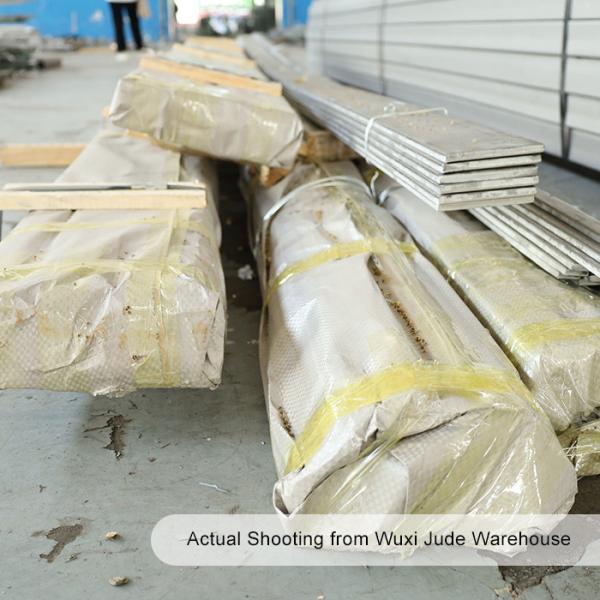

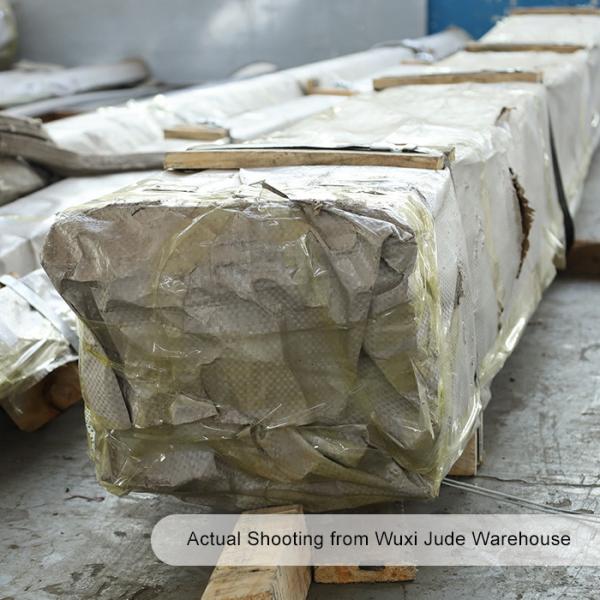

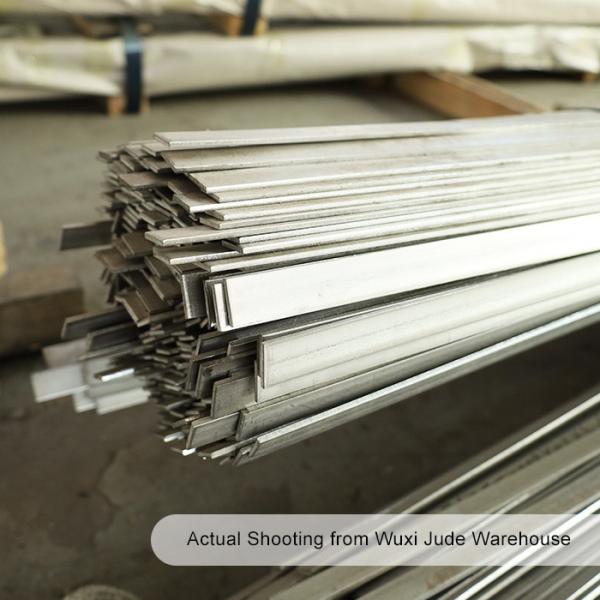

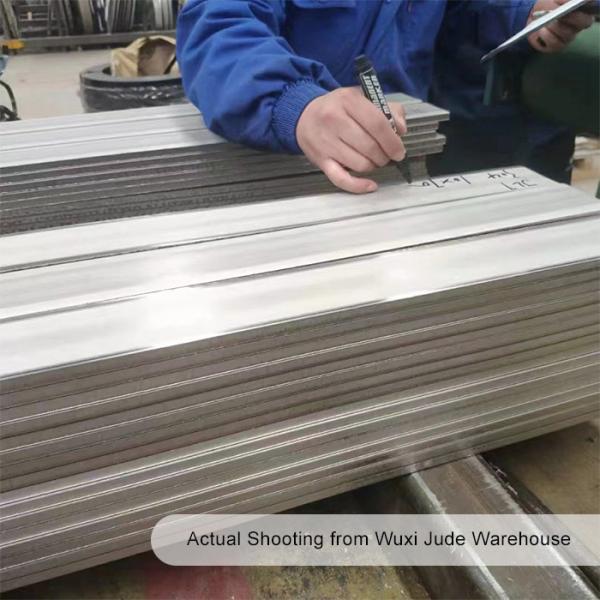

Our Warehouse

8k Stainless Steel Corner Profile Flat Bar 201 304 316 321 410 AISI ASTM Standard

JUDE is a comprehensive service provider of full-process solutions for stainless steel products. Fast delivery and competitive prices have earned us market recognition.

JUDE keeps 50,000 tons of regular-size stainless steel corner profile in stock all year round. For the sizes which have stock, we can even do same-day shipments.
