P50 Compact M.2 PCIe NVMe SSD NVMe Gen3 X4 Storage For Harsh Environments
P50 Compact M.2 PCIe NVMe SSD NVMe Gen3 X4 Storage For Harsh Environments
Specifications
Brand Name :
NUW
Model Number :
P50
Place of Origin :
China
Payment Terms :
T/T
Certification :
AEC-Q100、RoHS、REACH、UL/CE
MOQ :
10
Price :
$70-450/pcs
Supply Ability :
100k/month
Delivery Time :
10-15days
Packaging Details :
Customizable Packaging Available
Form Factor :
M.2 2280
Sequential Read/Write :
3000MB/s; 1000MB/s
Interface :
PCle 3.0x4 NVMe 1.2
Operating Temperature :
-40℃ ~ 85℃
Dimension(mm) :
80.0×22.0×3.6
Shock Reliability :
1500g/0.5ms
Description

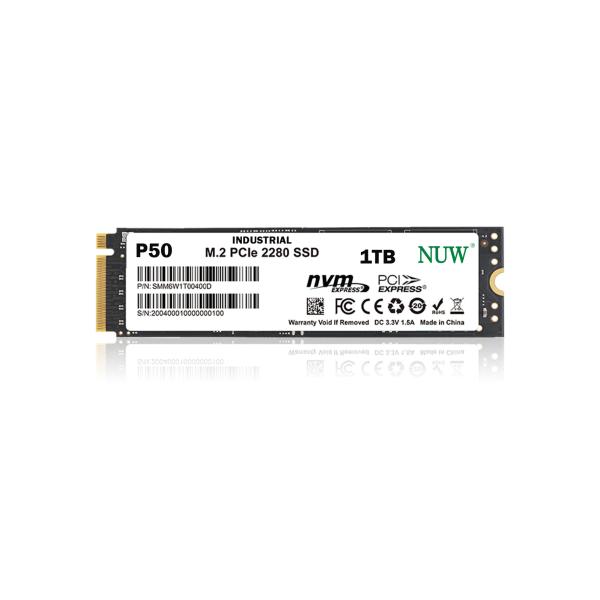

P50 Industrial M.2 SSD | Compact, Stable NVMe Storage for Harsh Environments

Product Description

NUW P50 series industrial SSD PCIe 3.0 M.2 Module delivers ​high-speed performance (up to 3,000/1,000 MB/s read/write) with ​PCIe Gen3x4NVMe protocol and ​compact M.2 2280/2242 form factor, optimized for space-constrained industrial systems. Engineered for harsh environments, it features ​​-40°C to 85°C wide-temperature tolerance, ​3D TLC NAND flash, and ​LDPC ECC for enhanced data integrity and endurance in mission-critical tasks. Ideal for ​industrial automation, ​edge computing, ​transportation systems, and ​rugged embedded devices, it balances ​low power consumption with ​shock/vibration resistance, ensuring stable operation in demanding IoT and AIoT applications

Product Parameters

Basic Information

Form Factor

M.2 2280

Interface

PCle 3.0x4 NVMe 1.2

Dimension(mm)

80.0×22.0×3.6

Cache

DRAM

Flash

TLC

Capacity

1TB, 2TB

Temperature

Operating Temperature

-40℃ ~ 85℃

Storage Temperature

-55℃ ~ 95℃

Performance

Sequential Read/Write

3000MB/s; 1000MB/s

Random Read/Write(4K) IOPS

220K IOPS; 200K IOPS

Reliability

MTBF

2,000,000hrs

Vibration

15g(10~2000Hz)

Shock

1500g/0.5ms

Humidity

5% ~ 95%(No condensing)

Electrical

Power Supply

3.3V±5%

Power Consumption

Active≤13W

Idle≤3.6W

Optional Functions

Secure Erase

Y

Quick Erase

Y

Physical Destruction

N/M
