P150 2000MB/S M.2 PCIe NVMe SSD Mission Critical Gen3 M.2 SSD
P150 2000MB/S M.2 PCIe NVMe SSD Mission Critical Gen3 M.2 SSD
Specifications
Brand Name :
NUW
Model Number :
P150
Place of Origin :
China
Payment Terms :
T/T
Certification :
AEC-Q100、RoHS、REACH、UL/CE
MOQ :
10
Price :
$70-450/pcs
Supply Ability :
100k/month
Delivery Time :
10-15days
Packaging Details :
Customizable Packaging Available
Form Factor :
M.2 2280/2242
Sequential Read/Write :
3200MB/s; 2000MB/s
Interface :
PCle 3.0x4 NVMe 1.3
Operating Temperature :
-40℃ ~ 85℃
Dimension(mm) :
2280:22×80×2.15/2242:22×42×3.8
Shock Reliability :
1500g/0.5ms
Description

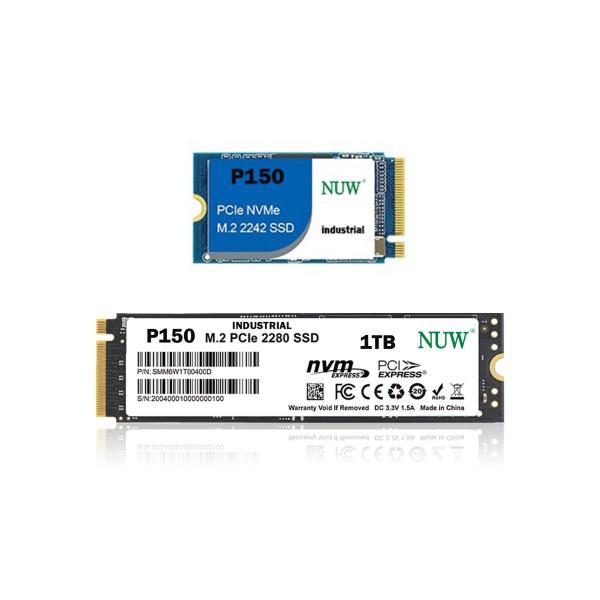

P150 Industrial PCIe Gen3 M.2 SSD | Reliable Storage for Industrial & Mission-Critical Use

Product Description

NUW P150 series industrial SSD PCIe 3.0 M.2 Module delivers ​high-speed performance (up to 3,200/2,000 MB/s read/write) with ​PCIe Gen3x4 NVMe protocol, engineered for rugged environments with ​​-40°C to 85°C wide-temperature tolerance and ​industrial-grade 3D TLC NAND flash. Built for ​AI edge computing, ​industrial automation, and ​medical imaging systems, it ensures ​data integrity through ​LDPC ECC, ​power-loss protection (PLP), and ​thermal throttling. Available in ​64GB–2TB capacities, its ​M. 2 2280 form factor and ​enhanced endurance (3000 P/E cycles) make it ideal for ​5G infrastructure, ​autonomous vehicles, and ​high-resolution data processing in mission-critical scenarios.

Product Parameters

Basic Information

Form Factor

M.2 2280/2242

Interface

PCle 3.0x4 NVMe 1.3

Dimension(mm)

M.2 2280:22×80×2.15

M.2 2242:22×42×3.8

Cache

DRAM-Less

Flash

TLC

Capacity

pSLC:64GB, 128GB, 256GB, 512GB

TLC:256GB, 512GB, 1TB, 2TB

Temperature

Operating Temperature

-40℃ ~ 85℃

Storage Temperature

-55℃ ~ 95℃

Performance

Sequential Read/Write

3200MB/s; 2000MB/s

Random Read/Write(4K) IOPS

137K IOPS; 36K IOPS

Reliability

MTBF

2,000,000hrs

Vibration

15g(10~2000Hz)

Shock

1500g/0.5ms

Humidity

5% ~ 95%(No condensing)

Electrical

Power Supply

3.3V±5%

Power Consumption

Active≤3.8W

Idle≤0.65W

Optional Functions

Secure Erase

Y

Quick Erase

Y

Physical Destruction

N/M
