EN545 ISO2531 Cement Lined Ductile Iron Pipe 10Inch 12Inch 16Inch 18Inch C25 K7 K8 K9 Water Supply Pipe
EN545 ISO2531 Cement Lined Ductile Iron Pipe 10Inch 12Inch 16Inch 18Inch C25 K7 K8 K9 Water Supply Pipe
Specifications
Brand Name :
JIGANG
Model Number :
K7 K8 K9 C25
Certification :
ISO
Place of Origin :
China
MOQ :
1 Ton
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
5000 TONS PER MONTH
Delivery Time :
7-10 DAYS
Packaging Details :
Standard Shipping Packaging
Type :
Seamless Steel Pipe
Pull Strength :
>420MPa
Application :
Water Supply Pipe
Product Name :
Cement Lined Ductile Iron Pipe
Standard :
ISO2531/EN545
Advantage :
Factory Sales ,Huge stock
Description

EN545 ISO2531 Cement Lined Ductile Iron Pipe 10Inch 12Inch 16Inch 18Inch C25 K7 K8 K9 Water Supply Pipe

Product Description

The essence of cast iron steel pipe is ductile iron pipe, which is called ductile iron pipe because ductile iron pipe has the essence of iron and the properties of steel. Graphite in ductile iron pipes exists in a spherical form, typically ranging in size from 6-7. In terms of quality, it is required that the spheroidization grade of cast iron pipes be controlled at 1-3 levels, with a spheroidization rate of ≥ 80%. Therefore, the mechanical properties of the material itself have been well improved, possessing the essence of iron and the properties of steel.

Product Name Cement Lined Ductile Iron Pipe
Type
T-type joint pipe (push-on), K-type joint pipe, self-restrained joint pipe
Standard
SO2531, EN545 etc.
Size
DN80~2600mm
Material
Ductile Cast Iron
Pressure
PN10, PN16, PN25, PN40
Class
K7,K8,K9,C25
Length
6m, or customized
Internal Coating
a). Portland cement mortar lining
b). Sulphate Resistant cement mortar lining
c). High-Aluminum cement mortar lining
d). Fusion bonded epoxy coating
e). Liquid epoxy painting
f). Black bitumen painting
External Coating
a). zinc+ bitumen(70microns) painting
b). Fusion bonded epoxy coating
c). Zinc-aluminum alloy+ liquid epoxy painting
Packing
Bundles, in bulk, Package according to customer requirements
Application
Water supply project, drainage, sewage, irrigation, water pipeline

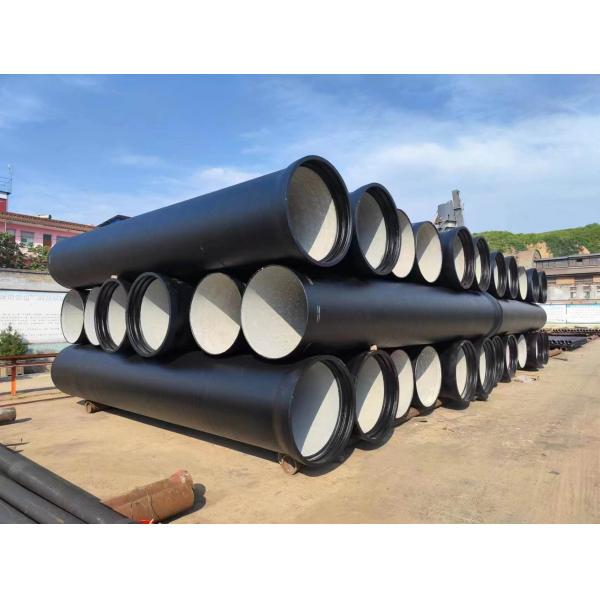

Detailed Photos

EN545 ISO2531 Cement Lined Ductile Iron Pipe 10Inch 12Inch 16Inch 18Inch C25 K7 K8 K9 Water Supply Pipe

EN545 ISO2531 Cement Lined Ductile Iron Pipe 10Inch 12Inch 16Inch 18Inch C25 K7 K8 K9 Water Supply Pipe

Technical parament

DN(mm) DE(mm) THICKNESS OF WALL(mm) WEIGHT OF SOCKET(kg) TOTAL WEIGHT(kg)
K8 K9 K10 3.4 K8 K9 K10
80 98 6.0 6.0 6.0 4.3 77.0 77.0 77.0
100 118 6.0 6.0 6.0 5.7 93.7 95.0 95.0
125 144 6.0 6.0 6.0 7.1 119.0 119.0 121.0
150 170 6.0 6.O 6.0 10.3 138.0 144.0 144.0
200 222 6.0 6.3 6.4 18.9 183.0 194.0 194.0
300 326 6.4 7.2 8.0 23.7 290.0 323.0 357.0
350 378 6.8 7.7 8.5 29.5 359.0 403.0 441.0
400 429 7,2 8.1 9.0 38.3 433.0 482.0 532.0
450 480 7.6 8.6 9.5 42.8 515.0 577.0 632.0
500 532 8.0 9.0 10.0 59.3 600.0 669.0 736.0
600 635 8.8 9.9 11.0 79.1 791.0 882.0 971.0
700 738 9.6 10.8 12.0 102.6 1009.0 1123.0 1237.0
800 842 10.4 11.7 13.0 129 1255.0 1394.0 1537.0
900 945 11.2 12.6 14.0 161.3 1521.0 1690.0 1863.0
1000 1048 12.0 13.5 15.0 237.7 1811.0 2017.0 2221.0

Production Flow

EN545 ISO2531 Cement Lined Ductile Iron Pipe 10Inch 12Inch 16Inch 18Inch C25 K7 K8 K9 Water Supply Pipe

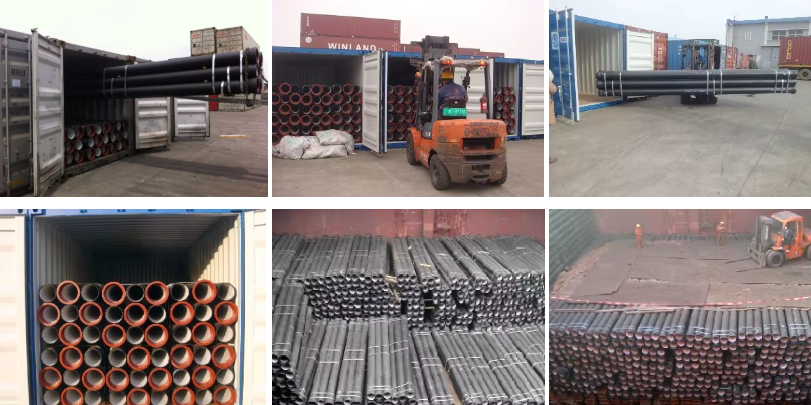

Packaging & Shipping

EN545 ISO2531 Cement Lined Ductile Iron Pipe 10Inch 12Inch 16Inch 18Inch C25 K7 K8 K9 Water Supply Pipe

EN545 ISO2531 Cement Lined Ductile Iron Pipe 10Inch 12Inch 16Inch 18Inch C25 K7 K8 K9 Water Supply Pipe

Certificate

EN545 ISO2531 Cement Lined Ductile Iron Pipe 10Inch 12Inch 16Inch 18Inch C25 K7 K8 K9 Water Supply Pipe

FAQ

1.Q:Can you give warranty of your products?
A: Yes, we extend a 100% satisfaction guarantee on all items. Please feel free to feedback immediately if you are not pleased with our quality or service.


2.Q:How can we get the offer?
A:Please offer the specification of the product,such as material,size,shape,etc.So we can give the best offer.

Q:Do you provide custom made Products service?
A:Yes,if you have your own design , we can produce according to your specification and drawing.
