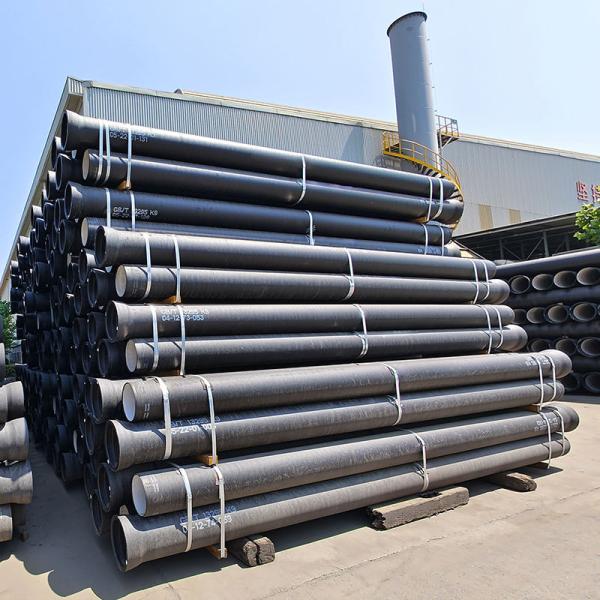

ISO2531 DN600 Cement Lined Ductile Iron Pipe Class K9 For Industrial Water System
ISO2531 DN600 Cement Lined Ductile Iron Pipe Class K9 For Industrial Water System
Specifications
Model Number :
K9
Certification :
ISO
Place of Origin :
Jiangsu,China
MOQ :
1 Ton
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
5000 TONS PER MONTH
Delivery Time :
7-10 DAYS
Packaging Details :
Standard Shipping Packaging
Brand Name :
JIGANG
Product Name :
Cement Lined Ductile Iron Pipe
Section Shape :
Round
Tensile Strength :
≥420MPa
Yield Strength :
≥ 300 MPa
Hardness :
≤ 230 HBW
Application :
Industrial Water System
Description

ISO2531 DN600 Cement Lined Ductile Iron Pipe Class K9 For Industrial Water System

Product Description

DN600 cement lined ductile iron pipe is a high-performance pressure pipeline system widely used in municipal, water conservancy and other fields. The name resolution is as follows:
DN600: The nominal diameter is 600 millimeters.
Cement lining: The inner wall of the pipeline is lined with cement mortar.
Ductile iron: The material of the pipe body is ductile iron (also known as ductile iron).
Item
DN600 Cement Lined Ductile Iron Pipe
Class
K9
Pipe Joint
push-on joint(Tyton joint), K type joint, self-restrained joint
Size
Outside Diameter: 98mm-1255mm
Inside Diameter: 80mm-1200mm
Wall Thickness: 6mm-153mm
Length: 6m, cut to 5.7m, or as required.
Standard ISO2531
Tensile Strength ≥420MPa
Yield Strength ≥ 300 MPa
Type Casting
Surface
External bitumen coating, or as required.
Application
Industrial Water System,Water supply project, drainage, sewage, irrigation, water pipeline, etc.
Package
Standard export package, or as required.
Price term
FOB, EXW,CIF, CFR, etc.
Payment
T/T, L/C, Western Union, etc.
Certificates
ISO or as required

Product Detailed

ISO2531 DN600 Cement Lined Ductile Iron Pipe Class K9 For Industrial Water System

ISO2531 DN600 Cement Lined Ductile Iron Pipe Class K9 For Industrial Water System

Technical parament

DN(mm) DE(mm) THICKNESS OF WALL(mm) WEIGHT OF SOCKET(kg) TOTAL WEIGHT(kg)
K8 K9 K10 3.4 K8 K9 K10
80 98 6.0 6.0 6.0 4.3 77.0 77.0 77.0
100 118 6.0 6.0 6.0 5.7 93.7 95.0 95.0
125 144 6.0 6.0 6.0 7.1 119.0 119.0 121.0
150 170 6.0 6.O 6.0 10.3 138.0 144.0 144.0
200 222 6.0 6.3 6.4 18.9 183.0 194.0 194.0
300 326 6.4 7.2 8.0 23.7 290.0 323.0 357.0
350 378 6.8 7.7 8.5 29.5 359.0 403.0 441.0
400 429 7,2 8.1 9.0 38.3 433.0 482.0 532.0
450 480 7.6 8.6 9.5 42.8 515.0 577.0 632.0
500 532 8.0 9.0 10.0 59.3 600.0 669.0 736.0
600 635 8.8 9.9 11.0 79.1 791.0 882.0 971.0
700 738 9.6 10.8 12.0 102.6 1009.0 1123.0 1237.0
800 842 10.4 11.7 13.0 129 1255.0 1394.0 1537.0
900 945 11.2 12.6 14.0 161.3 1521.0 1690.0 1863.0
1000 1048 12.0 13.5 15.0 237.7 1811.0 2017.0 2221.0

Production Workshop

ISO2531 DN600 Cement Lined Ductile Iron Pipe Class K9 For Industrial Water System

Packaging & Shipping

ISO2531 DN600 Cement Lined Ductile Iron Pipe Class K9 For Industrial Water System

ISO2531 DN600 Cement Lined Ductile Iron Pipe Class K9 For Industrial Water System

Application

ISO2531 DN600 Cement Lined Ductile Iron Pipe Class K9 For Industrial Water System

Certificate

ISO2531 DN600 Cement Lined Ductile Iron Pipe Class K9 For Industrial Water System

FAQ

1.Q:Can you give warranty of your products?
A: Yes, we extend a 100% satisfaction guarantee on all items. Please feel free to feedback immediately if you are not pleased with our quality or service.


2.Q:How can we get the offer?
A:Please offer the specification of the product,such as material,size,shape,etc.So we can give the best offer.

Q:Do you provide custom made Products service?
A:Yes,if you have your own design , we can produce according to your specification and drawing.
