25*25mm Stainless Steel Cable Mesh 60 Degree Green Wall Wire Trellis System
25*25mm Stainless Steel Cable Mesh 60 Degree Green Wall Wire Trellis System
25*25mm Stainless Steel Cable Mesh 60 Degree Green Wall Wire Trellis System
25*25mm Stainless Steel Cable Mesh 60 Degree Green Wall Wire Trellis System
25*25mm Stainless Steel Cable Mesh 60 Degree Green Wall Wire Trellis System
25*25mm Stainless Steel Cable Mesh 60 Degree Green Wall Wire Trellis System
25*25mm Stainless Steel Cable Mesh 60 Degree Green Wall Wire Trellis System
25*25mm Stainless Steel Cable Mesh 60 Degree Green Wall Wire Trellis System
Specifications
Brand Name :
Jianping
Model Number :
JP-2460
Certification :
CE , SGS
Place of Origin :
China
MOQ :
10 Sqm
Price :
USD 5-30/m2
Payment Terms :
T/T, Western Union,PayPal
Supply Ability :
9000m2/week
Delivery Time :
5-8 Work Days
Packaging Details :
Package film for each piece,Several pieces packed in 1 carton
Product Name :
Stainless Steel Cable Mesh,Factory sale 304 stainless steel wire rope mesh for suspension bridge
Material :
Stainless Steel Wire, 304, 316, AISI 304/316/304L/316L
Rope Constructions :
7 X 7,7X 19
Wire Diameter :
1.2 Mm 1.5mm 2.0mm 2.5mm 3.0mm 4.0mm
Size Of Hole :
25*25mm-300*300mm
Panel Size :
Customized In Width And Length
Finished :
Ultrasonic Bath , Black Oxide
Mesh Angle :
60 Degree
Mesh Shape :
Rhombus , Diamond
Mesh Type :
Ferruled Or Knotted
High Light: :
Stainless Steel Rope Mesh, Deck Railing
Application :
Zoological Enclosures , Blustrade Infill , Facade Cladding
Description

Factory sale 304 stainless steel wire rope mesh for suspension bridge Stainless Steel Cable Mesh​

25*25mm Stainless Steel Cable Mesh 60 Degree Green Wall Wire Trellis System

Factory sale 304 stainless steel wire rope mesh for suspension bridge Stainless Steel Cable Mesh

304 stainless steel wire rope mesh for suspension bridge Stainless Steel Cable Mesh
Product Name
304 stainless steel wire rope mesh for suspension bridge Stainless Steel Cable Mesh
Material
SS304 SS316/316L
Color
Silver,Black
Wire diameter
1.2mm,1.5mm or as your order
Hole size
30x30mm,40x40mm or as your order
Length
Customers' Requirement
Sample
Avaliable
Feature
Simple and convenient. The shape is special and elegant.
Usage

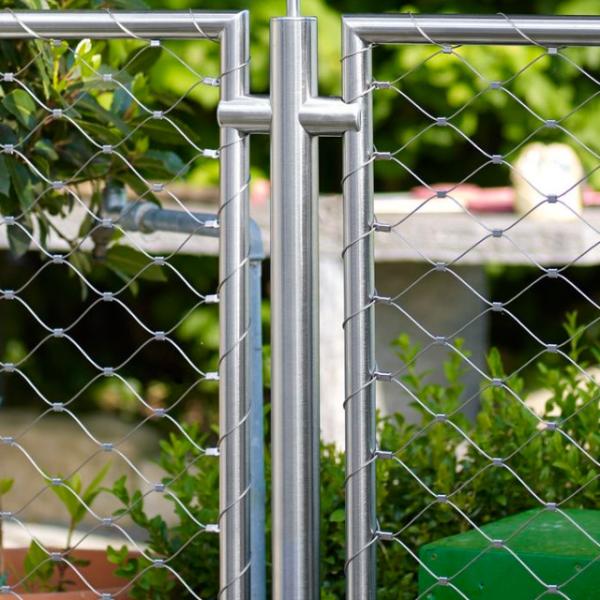

1. Steel Mesh Balustrade - bridge, stair, balcony, path
2. Cable Mesh - Excellent Solution to Safety
3. Safety Net - Structural Measure to Prevent Suicide
4. Helipad Safety Net - Modular Heliport Webbing
5. Cable Zoo Mesh - Solution to Enclosing Most Animals
6. Aviary Netting - Lightweight, Durable and Long Lasting
7. Green Facade - Cable System for Most Climbing Plants
Delivery time
7-12 days

Stainless Steel Rope Mesh,stainless steel rope net

Stainless steel rope mesh is made from high tensile stainless steel 304, 316, 304L and 316L.

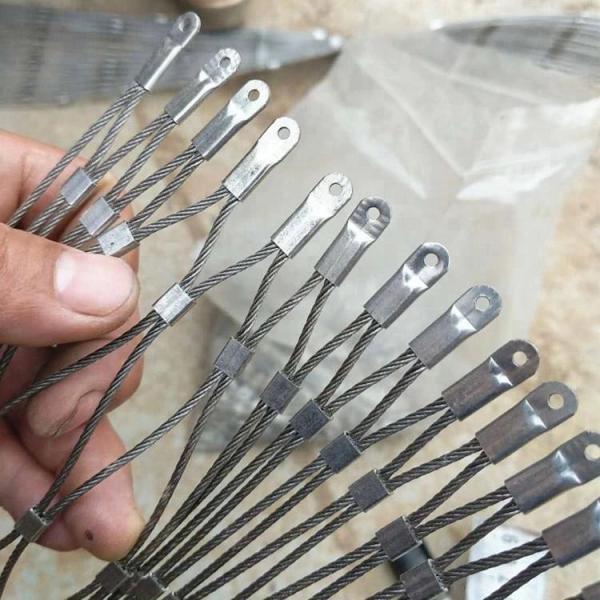

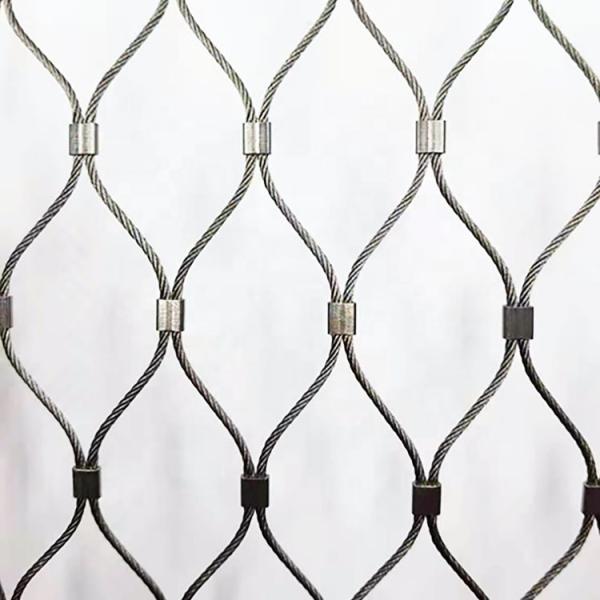

There are two types:Ferrule rope mesh and knotted rope mesh.The difference between them is the two neighboring ropes of stainless steel ferrule rope mesh are combined by ferrules to form diamond openings.
And ferrules are made of the same material as the rope wire. The standard angle is 60°, but other angles are also available, such as 10° and 90°. Stainless steel ferrule rope mesh is very flexible, and its width and length can be modified

Because of its flexibility, it can be applied to almost all complex terrain and irregular space.

Stainless steel rope net products are used in animal cages, bird nets, animal fences and garden decorations in zoos, marine parks and other similar environments, parks, community protection, doors and windows, etc., and can also be applied to building reinforcement, lifting goods, car sealing and capping, high-grade decoration, sports, acrobatics, home decoration, architectural decoration, fence fence, also used in mine support, slope protection, security burglar, etc

Stainless Steel Cable Mesh Specification

Stainless Steel Cable Mesh Specification
Rope Construction
Rope Diameter
Aperture
Breaking Force
inch
mm
mm
kn
7 × 19
1/8
3.2
120 × 208
7.38
7 × 19
1/8
3.2
100 × 173
7.38
7 × 19
1/8
3.2
90 × 156
7.38
7 × 7
3/32
2.4
100 × 173
4.18
7 × 7
3/32
2.4
90 × 156
4.18
7 × 7
3/32
2.4
80 × 139
4.18
7 × 7
3/32
2.4
70 × 121
4.18
7 × 7
5/64
2.0
100 × 173
3.17
7 × 7
5/64
2.0
90 × 156
3.17
7 × 7
5/64
2.0
80 × 139
3.17
7 × 7
5/64
2.0
70 × 121
3.17
7 × 7
1/16
1.6
80 × 139
2.17
7 × 7
1/16
1.6
70 × 121
2.17
7 × 7
1/16
1.6
60 × 104
2.17
7 × 7
1/16
1.6
51 × 87
2.17
7 × 7
3/64
1.2
80 × 139
1.22
7 × 7
3/64
1.2
60 × 104
1.22
7 × 7
3/64
1.2
50 × 87
1.22
7 × 7
3/64
1.2
40 × 69
1.22

25*25mm Stainless Steel Cable Mesh 60 Degree Green Wall Wire Trellis System

25*25mm Stainless Steel Cable Mesh 60 Degree Green Wall Wire Trellis System

Packing & Delivery

In poly bag or plastic cage ,and then in box or cartons as customer required.

25*25mm Stainless Steel Cable Mesh 60 Degree Green Wall Wire Trellis System

1. The set of paper tube.
2. Outside waterproof paper (kraft paper) + bubble pad.
3. Finally in a wooden case or pallet.
4. Also we can as per your requirements.

25*25mm Stainless Steel Cable Mesh 60 Degree Green Wall Wire Trellis System
