AISI316 Stainless Steel Cable Mesh Safety Mesh Anti Falling 1.5mm Opened Ferrule
AISI316 Stainless Steel Cable Mesh Safety Mesh Anti Falling 1.5mm Opened Ferrule
AISI316 Stainless Steel Cable Mesh Safety Mesh Anti Falling 1.5mm Opened Ferrule
AISI316 Stainless Steel Cable Mesh Safety Mesh Anti Falling 1.5mm Opened Ferrule
AISI316 Stainless Steel Cable Mesh Safety Mesh Anti Falling 1.5mm Opened Ferrule
AISI316 Stainless Steel Cable Mesh Safety Mesh Anti Falling 1.5mm Opened Ferrule
Specifications
Brand Name :
Jianping
Model Number :
JP-2080
Certification :
CE , SGS
Place of Origin :
China
MOQ :
10 Sqm
Price :
USD 5-30/m2
Payment Terms :
T/T, Western Union,PayPal
Supply Ability :
9000m2/week
Delivery Time :
5-8 Work Days
Packaging Details :
Package film for each piece,Several pieces packed in 1 carton
Product Name :
Stainless Steel Cable Mesh
Material :
304, 316, 316L
Mesh Type :
Ferruled Or Knotted
Wire Diameter :
1.2 Mm 1.5mm 2.0mm 2.5mm 3.0mm 4.0mm
Size Of Hole :
25*25mm-300*300mm
Panel Size :
Customized In Width And Length
Rope Constructions :
7 X 7,7×19
Finished :
Ultrasonic Bath , Black Oxide
Mesh Angle :
60 Degree
Mesh Shape :
Rhombus , Diamond
High Light: :
Stainless Steel Rope Mesh, Deck Railing
Application :
Zoological Enclosures , Blustrade Infill , Facade Cladding
Description

AISI316 Grade Flexible Anti-Falling Safety Net Of Stainless Steel Cable Opened Ferrule Mesh


1.Product Parameters:
Stainless steel cable ferrule type mesh is also called SS ferrule mesh or X-TEND mesh. The mainly material is stainless steel cable and stainless steel ferrule. It is produced by putting the ferrules tough the cable first, and then press the ferrule using special molds. This kind of mesh has very beautiful appreance, it also has very good strength and flexibility. We can product various types of ferrule mesh in different cable diameter and mesh opening to meet our clients' requirement.

Flexible Anti-Falling Safety Net Of Stainless Steel Cable Opened Ferrule Mesh
Material Stainless steel wire 304/316/316L
Wire diameter 1.0MM-6.0MM
Hole size Can be customized.depend on your requirment
Wire structure 7*7,7*19
Feature

1. Easy to install, has good flexibility, adapt to complex terrain and installation angle.
2. Stainless steel cable net of all the parameters can be modified according to customer requirements.
3. Made of high-quality stainless steel wire, strong corrosion resistance, light weight, high tension, the extreme situation can also maintain stability.
4. The service life of up to several decades, maintenance costs are very low.
5. Stainless steel decorative cable network with diamond-shaped openings, simple and beautiful, easy to clean.
Usages Stainless steel wire rope mesh is widely used as the safety fence in the zoo,animal cage,
aviary mesh, bird cage, bird netting.Balustrade mesh,railing mesh,plant climbing wall,architectural mesh,falling prevention mesh,staircase protective mesh, The courtyard security fence.

AISI316 Stainless Steel Cable Mesh Safety Mesh Anti Falling 1.5mm Opened Ferrule

Flexible Stainless Steel Cable Mesh(Ferrule Type)
Item No.s Cable Diameter Mesh Opening Size(W×H)
inch mm inch mm
JP-32120F 1/8 3.2 4.75 x 8.23 120 x 207.8
JP-32102F 1/8 3.2 4 x 6.9 102 x 176.7
JP-3290F 1/8 3.2 3.55 x 6.15 90 x 156
JP-3276F 1/8 3.2 3 x5.2 76 x 131.6
JP-3251F 1/8 3.2 2 x3.46 51 x88.3
JP-24102F 3/32 2.4 4x6.9 102x176.7
JP-2490F 3/32 2.4 3.55x6.15 90x 156
JP-2476F 3/32 2.4 3 x 5.2 76x 131.6
JP-2460F 3/32 2.4 2.4x 4.16 60x 104
JP-2451F 3/32 2.4 2x3.46 51 x 88.3
JP-2076F 5/64 2.0 3 x 5.2 76 x 131.6
JP-2060F 5/64 2.0 2.4x 4.16 60 x 104
JP-2051F 5/64 2.0 2 x 3.46 51 x 88.3
JP-2038F 5/64 2.0 1-1/2 x 2.6 38 x 65.8
JP-1676F 1/16 1.6 1.2 x2.08 76 x 131.6
JP-1651F 1/16 1.6 2x 3.46 51 x 88.3
JP-1638F 1/16 1.6 1-1/2 x 2.6 38 x 65.8
JP-1630F 1/16 1.6 1.2x2.08 30 x 52
JP-1625F 1/16 1.6 1 x 1.73 25.4 x 44
JP-1238F 3/64 1.2 1-1/2x2.6 38 x 65.8
JP-1230F 3/64 1.2 1.2 x 2.08 30 x 52
JP-1225F 3/64 1.2 1 x 1.73 25.4 x 44
JP-1220F 3/64 1.2 4/5 x 1.39 20 x 34.6

AISI316 Stainless Steel Cable Mesh Safety Mesh Anti Falling 1.5mm Opened Ferrule

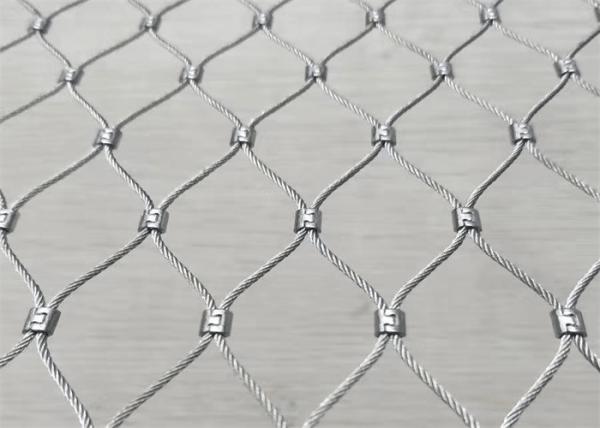

Stainless steel cable opened ferrule mesh


2. Applications:
The stainless steel cable mesh, especially the ferrule type mesh, are more used in fields like balustrades on bridges and staircases, large barrier fences, and building facade trellis systems. As an emerging product on architectural decoration and protection, stainless steel rope mesh has provided the mordern architectural decoration and horticulture engineering with a new and stylish element, which are getting more and more appreciated by designeers and clients all over the world.

AISI316 Stainless Steel Cable Mesh Safety Mesh Anti Falling 1.5mm Opened Ferrule

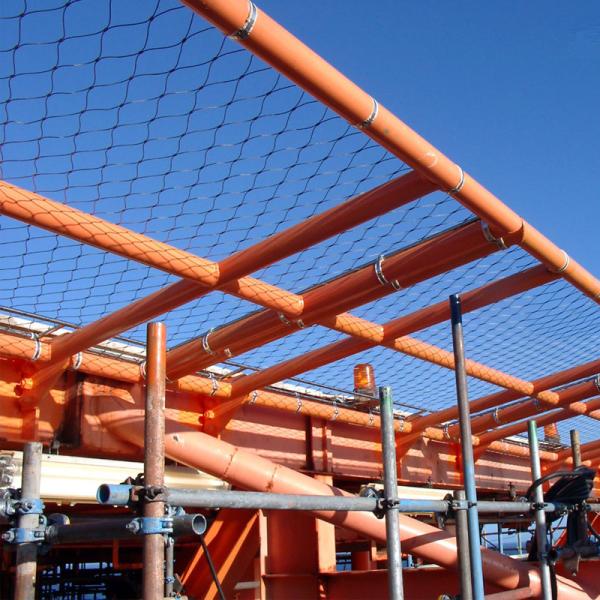

Stainless steel cable mesh green wall safety mesh opened ferrule type safety mesh

AISI316 Stainless Steel Cable Mesh Safety Mesh Anti Falling 1.5mm Opened Ferrule
