Specifications
Brand Name :
Jianping
Model Number :
JP-2070
Certification :
CE , SGS
Place of Origin :
China
MOQ :
10 Sqm
Price :
USD 5-30/m2
Payment Terms :
T/T, Western Union,PayPal
Supply Ability :
9000m2/week
Delivery Time :
5-8 Work Days
Packaging Details :
Package film for each piece,Several pieces packed in 1 carton
Product Name :
Stainless Steel Cable Knotted Mesh
Rope Constructions :
7 X 7,7×19
Material :
304, 316, 316L
Mesh Type :
Ferruled Or Knotted
Wire Diameter :
1.2 Mm 1.5mm 2.0mm 2.5mm 3.0mm 4.0mm
Size Of Hole :
25*25mm-300*300mm
Panel Size :
Customized In Width And Length
Finished :
Ultrasonic Bath , Black Oxide
Mesh Angle :
60 Degree
Mesh Shape :
Rhombus , Diamond
High Light: :
Stainless Steel Rope Mesh, Deck Railing,Stainless Steel Cable Hand Woven Mesh
Application :
Zoological Enclosures , Blustrade Infill , Facade Cladding
Description

316 Marine Grade Bridge Stairway Netting With Stainless Steel Cable Knotted Mesh Netting

1.Stainless Steel Cable Knotted Mesh Product Description:

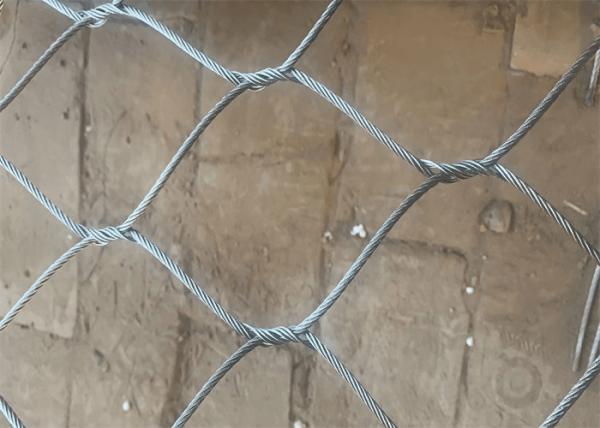

Stainless steel rope net is a net-like product processed by stainless steel rope according to certain methods and procedures. The common ones are mainly stainless steel buckle rope net and stainless steel braided rope net. The stainless steel buckle rope net is extruded and woven by stainless steel wire rope and stainless steel buckle.The steel buckle is mainly made of stainless steel buckle, and there are also aluminum buckles and copper buckles for customers to choose from.The stainless steel rope mesh woven net is formed by cross-weaving with a plurality of steel wire ropes, and the net is durable and unbreakable, and the bearing capacity is large.

Diamond Decorative Metal Architectural Wire Mesh Panels Marine Grade Bridge Stairway

Flexible stainless steel wire rope mesh(knotted Type)
tem No.s Cable Diameter Mesh Opening Size
inch mm inch mm
JP-3212W 1/8 3.2 4.75 x 4.75 120 x 120
JP-3210W 1/8 3.2 4 x 4 102 x 102
JP-3290W 1/8 3.2 3.55 x 3.55 90 x 90
JP-3276W 1/8 3.2 3 x 3 76 x 76
JP-3250W 1/8 3.2 2 x 2 51 x 51
JP-2410W 3/32 2.4 4 x 4 102 x 102
JP-2490W 3/32 2.4 3.55 x 3.55 90 x 90
JP-2476W 3/32 2.4 3 x 3 76 x 76
JP-2460W 3/32 2.4 2.4 x 2.4 60 x 60
JP-2450W 3/32 2.4 2 x 2 51 x 51
JP-2076W 5/64 2.0 3 x 3 76 x 76
JP-2060W 5/64 2.0 2.4 x 2.4 60 x 60
JP-2050W 5/64 2.0 2 x 2 51 x 51
JP-2038W 5/64 2.0 1-1/2 x 1-1/2 38 x 38
JP-1676W 1/16 1.6 3 x 3 76 x 76
JP-1650W 1/16 1.6 2 x 2 51 x 51
JP-1638W 1/16 1.6 1-1/2 x 1-1/2 38 x 38
JP-1630W 1/16 1.6 1.2 x 1.2 30 x 30
JP-1625W 1/16 1.6 1 x 1 25.4 x 25.4
JP-1238W 3/64 1.2 1-1/2 x 1-1/2 38 x 38
JP-1230W 3/64 1.2 1.2 x 1.2 30 x 30
JP-1225W 3/64 1.2 1 x 1 25.4 x 25.4
JP-1220W 3/64 1.2 4/5 X 4/5 20 x 20

product information

Diamond Decorative Metal Architectural Wire Mesh Panels Marine Grade Bridge Stairway

ferrulde Stainless Steel Cable Mesh woven Stainless Steel Cable Mesh

2. Applications:

Flexible stainless steel cable mesh, hand woven type in particular, is usually used in animal or bird cages, which is also called zoo mesh.The

mesh has strong tensile strength and high flexibility,high transparence and wide span. The flexible s.s. cable mesh has unreplacable advantages

compared with other mesh products in many aspects like practicability, security, aesthetic property and durability etc.

Diamond Decorative Metal Architectural Wire Mesh Panels Marine Grade Bridge Stairway

Green wall mesh animal enclosure mesh animal enclosure mesh

Diamond Decorative Metal Architectural Wire Mesh Panels Marine Grade Bridge Stairway

zoo mesh bird aviary cable mesh animal enclosure mesh
