1.2mm 1.5mm Rope Mesh Fencing Stair Railing SUS316L Safety Rope Mesh
1.2mm 1.5mm Rope Mesh Fencing Stair Railing SUS316L Safety Rope Mesh
1.2mm 1.5mm Rope Mesh Fencing Stair Railing SUS316L Safety Rope Mesh
1.2mm 1.5mm Rope Mesh Fencing Stair Railing SUS316L Safety Rope Mesh
Specifications
Brand Name :
Jianping
Model Number :
JP-2060F
Certification :
CE , SGS
Place of Origin :
China
MOQ :
10 Sqm
Price :
USD 5-30/m2
Payment Terms :
T/T, Western Union,PayPal
Supply Ability :
9000m2/week
Delivery Time :
5-8 Work Days
Packaging Details :
Package film for each piece,Several pieces packed in 1 carton
Product Name :
Stainless Steel Rope Mesh Fencing
Material :
SUS304,SUS316,SUS316L
Wire Diameter :
1.2Mm 1.5mm 2.0mm 2.5mm 3.0mm 4.0mm
Size Of Hole :
20*20mm-300*300mm
Panel Size :
Customized In Width And Length
Rope Constructions :
7 X 7,7×19
Finished :
Ultrasonic Bath , Black Oxide
Mesh Angle :
60 Degree
Mesh Shape :
Rhombus , Diamond
Mesh Type :
Ferruled Or Knotted
High Light: :
Stainless Steel Rope Mesh, Deck Railing,Stainless Steel X Tend Cable Mesh
Application :
Zoological Enclosures , Blustrade Infill , Facade Cladding
Description

Stair Railing Stainless Steel Rope Mesh Cable Netting Stairs Safety Rope Mesh Fencing


1.Product Parameters:

The stainless steel wire woven wire mesh is made of 304, 340L, 316L steel wire rope by hand weaving.

1. Good flexibility, Anti-corrosion,Excellent visibility

2. Long service life, close to nature, green and environmental protection

Stair Railing Stainless Steel Rope Mesh Cable Netting Stairs Safety Rope Mesh Fencing
Product Name Stainless Steel wire rope mesh
Material AISI or SUS 304, 304L 316, 316L or as your requirements,
Color stainless steel natural colors or black oxide
OW*OH 0.8"X0.8" 1"X1" 2"X2" 3"X3" 4"X4" 5"X5", 6"X6" 7"X7", etc.
Wire Rope Diameter 1.2mm, 1.5mm,2.0mm,3.0mm,4.0mm, etc.
Width & Length can be customized
Applications safari parks,garden decoration,animal cage,playground protection,steel stair fences,fall protection mesh,
Packing Details Plastic bag and then wooden case

Cable diameter
Mesh opening size
Nominal break
inch
mm
inch
mm
lbs.
1/8
3.2
4x4
102x102
1600
1/8
3.2
3x3
76x76
1600
1/8
3.2
2x2
51x51
1600
3/32
2.4
4x4
102x102
920
3/32
2.4
3x3
76x76
920
3/32
2.4
2x2
51x51
920
5/64
2.0
3x3
76x76
676
5/64
2.0
2x2
51x51
676
5/64
2.0
1-1/2x 1-1/2
38x38
676
1/16
1.6
3x3
76x76
480
1/16
1.6
2x2
51x51
480
1/16
1.6
1-1/2x 1-1/2
38x38
480
1/16
1.6
1x1
25.4x25.4
480
3/64
1.2
1-1/2x 1-1/2
38x38
270
3/64
1.2
1x1
25.4x25.4
270
3/64
1.2
4/5x4/5
20x20
270

2. Advantages

DecorRope flexible X Tend Stainless Steel Cable Mesh For Handrail Balcony Infill has characteristic property and capacity to replace other steel wire mesh in certain application.Sometimes better.

  • Unique design idea.3D-structure,Flexible,elegant,discreet,filigreed,multifuncational.
  • Light weight,High open area % .
  • Corrosion resistant,allows strongh airflow.
  • Total pro-environment,recyclable,no toxic,non flammable
  • Maintenaance free,don't ask any special cleaning & coating.
  • At least 10 years guaranteed.


3.Panel Shape

Customized Rectangular panel shape.Trapezoid panel shape,Triangular panel shape,circle panel shape,and other special shape.Customized net height and length.

4.Easily Install

DecorRope flexible X Tend Stainless Steel Cable Mesh For Handrail Balcony Infill is main installed on tube frame, perimeter cables or wire rod with special border design Available 30 types different border plans to meet different install required.

5.Application

Building Facade screens,
Green wall systems
Balustrade & Railing
Bird protection netting,
Security platform fence. Isolate fence,Garden fence,
Animal enclosures in zoo
And so on...

Stainless steel cable ferrule type mesh is also called SS ferrule mesh or X-TEND mesh. The mainly material is stainless steel cable and stainless steel ferrule. It is produced by putting the ferrules tough the cable first, and then press the ferrule using special molds. This kind of mesh has very beautiful appreance, it also has very good strength and flexibility. We can product various types of ferrule mesh in different cable diameter and mesh opening to meet our clients' requirement.

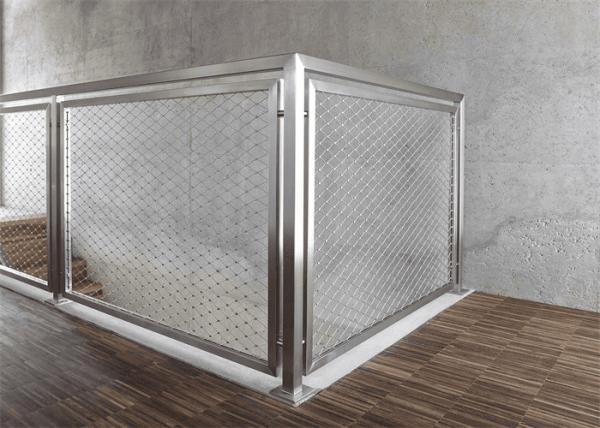

1.2mm 1.5mm Rope Mesh Fencing Stair Railing SUS316L Safety Rope Mesh

stainless steel X-tend cable mesh

ferruled type, knotted type, black oxide type

The stainless steel cable mesh, especially the ferrule type mesh, are more used in fields like balustrades on bridges and staircases, large barrier fences, and building facade trellis systems. As an emerging product on architectural decoration and protection, stainless steel rope mesh has provided the mordern architectural decoration and horticulture engineering with a new and stylish element, which are getting more and more appreciated by designeers and clients all over the world.

1.2mm 1.5mm Rope Mesh Fencing Stair Railing SUS316L Safety Rope Mesh

green wall safety mesh opened ferrule type safety mesh
