AISI 316 X Tend Wire Rope Mesh Fencing Lin Railing Safety Inox Anti Climb Fencing Panels
AISI 316 X Tend Wire Rope Mesh Fencing Lin Railing Safety Inox Anti Climb Fencing Panels
AISI 316 X Tend Wire Rope Mesh Fencing Lin Railing Safety Inox Anti Climb Fencing Panels
AISI 316 X Tend Wire Rope Mesh Fencing Lin Railing Safety Inox Anti Climb Fencing Panels
AISI 316 X Tend Wire Rope Mesh Fencing Lin Railing Safety Inox Anti Climb Fencing Panels
AISI 316 X Tend Wire Rope Mesh Fencing Lin Railing Safety Inox Anti Climb Fencing Panels
Specifications
Brand Name :
Jianping
Model Number :
JP-2070K
Certification :
CE , SGS
Place of Origin :
China
MOQ :
10 Sqm
Price :
USD 5-30/m2
Payment Terms :
T/T, Western Union,PayPal
Supply Ability :
9000m2/week
Delivery Time :
5-8 Work Days
Packaging Details :
Package film for each piece,Several pieces packed in 1 carton
Product Name :
Staninless Steel Cable Mesh Wire Rope Mesh Fencing
Material :
Stainless Steel Wire, 304, 316, AISI 304/316/304L/316L
Wire Diameter :
1.2 Mm 1.5mm 2.0mm 2.5mm 3.0mm 4.0mm
Size Of Hole :
25*25mm-300*300mm
Panel Size :
Customized In Width And Length
Rope Constructions :
7 X 7 , 7 X 19 , 1 X 19
Finished :
Ultrasonic Bath , Black Oxide

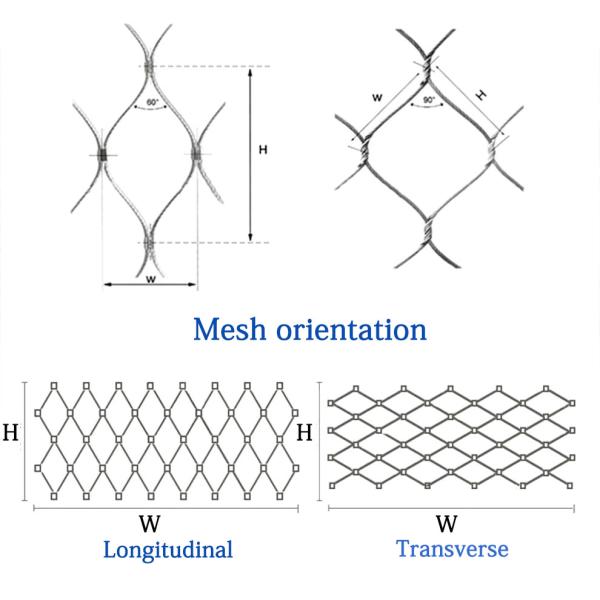

Mesh Angle :
60 Degree
Mesh Shape :
Rhombus , Diamond
Mesh Type :
Ferruled Or Knotted
High Light: :
Stainless Steel Rope Mesh, Flexible Wire Netting
Application :
Zoological Enclosures , Blustrade Infill , Facade Cladding
Description

Aisi316 X-Tend Inox Lin Railing Safety Stainless Steel Rope Mesh Fencing

Flexible Stainless Steel Cable Mesh Fencing(Ferrule Type)

Hebei Jianping Metal Wire Mesh Co.,Ltd

Flexible Stainless Steel Cable Mesh(Ferrule Type)
Mesh Aperture Wire diameter
OW X OH (mm) Inch 1.2 mm 1.5 mm 2.0 mm 3.0 mm 4.0 mm
3/64" 1/16" 5/64" 1/8" 0.157"
20 x 35 4/5×1.39 JP1220
25.4 x 44 1×1.73 JP1225 JP1525
35 x 61 1.37×24 JP1235 JP1535 JP2035
38 x 65.8 1-1/2×2.6 JP1235 JP1538 JP2038 JP3038
51 x 88.3 2×3.46 JP1251 JP1551 JP2051 JP3051 JP4051
60 x 105 2.4×4.16 JP1260 JP1560 JP2060 JP3060 JP4060
76 x 131.6 3×5.2 JP1276 JP1576 JP2076 JP3076 JP4076
90 x 156 3.5×6.15 JP1290 JP1576 JP2090 JP3090 JP4090
102 x 176.7 4×6.9 JP20100 JP15100 JP20100 JP30100 JP40100
120 x 210 4.75×8.23 JP12120 JP15120 JP20120 JP30120 JP40120
160 x 280 6.3 x 11 JP12160 JP15160 JP20160 JP30160 JP40160
180 x 315 7.08 x 12.4 JP12180 JP15180 JP20180 JP30180 JP40180
200 x 350 7.87 x 13.78 JP12200 JP15200 JP20200 JP30200 JP40200
250 x 450 9.84 x 17.7 JP12250 JP15250 JP20250 JP30250 JP40250
300 x 525 11.8 x 20.67 JP12300 JP15300 JP20300 JP30300 JP40300
Product description of Stainless Steel Rope Mesh Fencing

The Stainless Steel Rope Mesh is manufactured in the standard diameters 1.0 mm, 1.5 mm, 1.6mm, 2.0 mm, 3.0 mm and 3.2mm.Mesh width of 25 to 200 mm (or bigger) are possible depending on cable diameter.

Stainless Steel Rope Meshh is manufactured from high-grade stainless steel cables of material class 1.4401, AISI316.

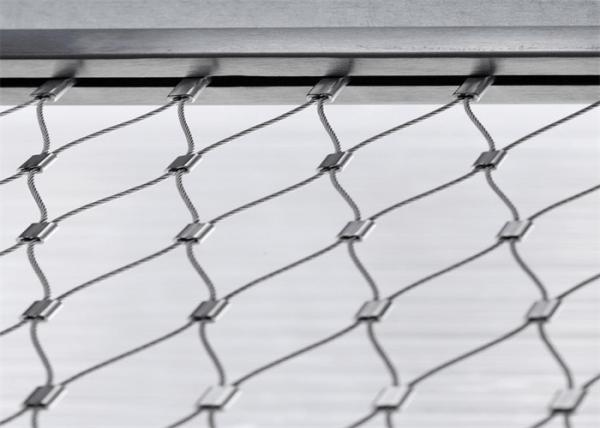

Stainless Steel Rope Mesh connections (ferrules) are available in highly aesthetic stainless steel for premium applications or where resistance to corrosion is a driving consideration.

AISI 316 X Tend Wire Rope Mesh Fencing Lin Railing Safety Inox Anti Climb Fencing Panels

Stainless Steel Rope Mesh Fencing

Stainless steel ferruled wire rope mesh:

1. Material is high quality stainless steel rope and stainless steel clips.

2. Material: high quality 304,30L,316,316L.

3. It uses in home decoration, garden, and construction line.

4. Use life more than 30 years.

5. Never rust, fatigue resistance, impact resistance, high break force, the overall structure strong with long life, wide looking, new style

Packing & Delivery

AISI 316 X Tend Wire Rope Mesh Fencing Lin Railing Safety Inox Anti Climb Fencing Panels

1. The set of paper tube.
2. Outside waterproof paper (kraft paper) + bubble pad.
3. Finally in a wooden case or pallet.
4. Also we can as per your requirements.

AISI 316 X Tend Wire Rope Mesh Fencing Lin Railing Safety Inox Anti Climb Fencing Panels
