Diamond Stainless Steel Mesh Sheet , 316 Woven Metal Mesh For Balustrades Handrails
Diamond Stainless Steel Mesh Sheet , 316 Woven Metal Mesh For Balustrades Handrails
Diamond Stainless Steel Mesh Sheet , 316 Woven Metal Mesh For Balustrades Handrails
Diamond Stainless Steel Mesh Sheet , 316 Woven Metal Mesh For Balustrades Handrails
Diamond Stainless Steel Mesh Sheet , 316 Woven Metal Mesh For Balustrades Handrails
Diamond Stainless Steel Mesh Sheet , 316 Woven Metal Mesh For Balustrades Handrails
Diamond Stainless Steel Mesh Sheet , 316 Woven Metal Mesh For Balustrades Handrails
Diamond Stainless Steel Mesh Sheet , 316 Woven Metal Mesh For Balustrades Handrails
Specifications
Brand Name :
Jianping
Model Number :
JP-2060F
Certification :
CE , SGS
Place of Origin :
China
MOQ :
10 Sqm
Price :
USD 5-30/m2
Payment Terms :
T/T, Western Union,PayPal
Supply Ability :
9000m2/week
Delivery Time :
5-8 Work Days
Packaging Details :
Package film for each piece,Several pieces packed in 1 carton
Product Name :
Stainless Steel architectural woven metal mesh for balustrades & Handrails/Balustrade Mesh Infill
Material :
AISI 304/316/304L/316L
Wire Diameter :
1.2 mm~4.0mm
Size Of Hole :
25*25mm-300*300mm
Panel Size :
Customized In Width And Length
Rope Constructions :
7 X 7,7×19
Finished :
Ultrasonic Bath , Black Oxide
Mesh Shape :
Rhombus , Diamond
Mesh Type :
Ferruled Or Knotted
Application :
rotecting Mesh,decoration,fence
Description

Light color Stainless Steel architectural woven metal mesh for balustrades & Handrails /Balustrade Mesh Infill

Stainless steel wire rope mesh /Balustrade Mesh Infill Description :
  • Stainless steel wire rope mesh (also called cable mesh) made form high quality stainless steel wire rope, with the features of extremely anti-corrosion and resistant to UV rays, has a long lifespan in the harsh environments. And its largest benefit is particular resilience and flexibility. Our rope mesh may in knotted, ferrule type, woven square, or square mesh with cruciate/cross clamps. They are all favored by fashion architects.
  • Characteristics of stainless steel rope net:lightweight,high strength,never rust,soft,fatigue resistance, impact resistance,breaking force, the overall sturucture is sold and durable,service life in more than 30 years.

Diamond Stainless Steel Mesh Sheet , 316 Woven Metal Mesh For Balustrades Handrails

Balustrade Mesh Infill/DecorRope hand woven metal rope mesh for Stair CaseBalcony Railing Balustrade Infill

Specification of Stainless steel wire rope mesh/Balustrade Mesh Infill:
Stainless steel wire rope mesh(stainless steel cable mesh)
Product Name
Stainless steel wire rope mesh(stainless steel cable mesh)
Certifacates
CE and ROHS Certificates
Material
304 or 316 or316L
Wire Diameter
1mm-5mm, the common diameter:1.5mm,2.0mm,3.0mm
Wire Structure
7*7 or 7*19
Opening Hole Size
From10*10mm to 300*300mm,the common size:40*70mm 50*90mm 60*104mm 80*140mm.
Woven Type
Ferruled type and Knotted type
Knotted mesh is a kind of plain weave, each warp wire rope crosses alternately above and below each weft wire rope. Warp and weft wire ropes generally have the same diameter.
2.Ferruled mesh is of the same physical properties with the knotted mesh, the only difference is in the combination style, the stainless wire rope are combined by the ferrules which are made of the same grade stainless steel.

Stainless steel wire rope mesh/Balustrade Mesh Infill
Cable diameter Mesh opening size Nominal break
inch mm inch mm lbs.
1/8 3.2 4x4 102x102 1600
1/8 3.2 3x3 76x76 1600
1/8 3.2 2x2 51x51 1600
3/32 2.4 4x4 102x102 920
3/32 2.4 3x3 76x76 920
3/32 2.4 2x2 51x51 920
5/64 2.0 3x3 76x76 676
5/64 2.0 2x2 51x51 676
5/64 2.0 1-1/2x 1-1/2 38x38 676
1/16 1.6 3x3 76x76 480
1/16 1.6 2x2 51x51 480
1/16 1.6 1-1/2x 1-1/2 38x38 480
1/16 1.6 1x1 25.4x25.4 480
3/64 1.2 1-1/2x 1-1/2 38x38 270
3/64 1.2 1x1 25.4x25.4 270
3/64 1.2 4/5x4/5 20x20 270

Uses of Stainless steel wire rope mesh/Balustrade Mesh Infill:

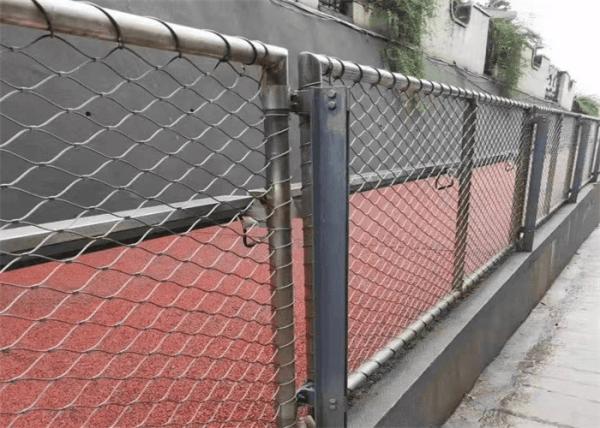

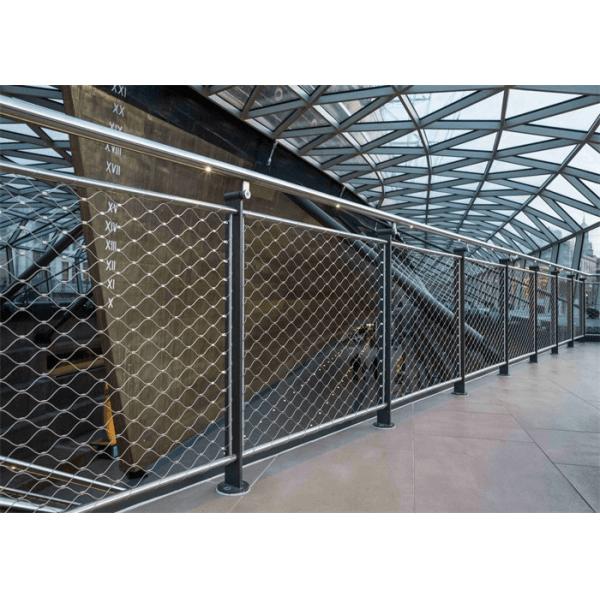

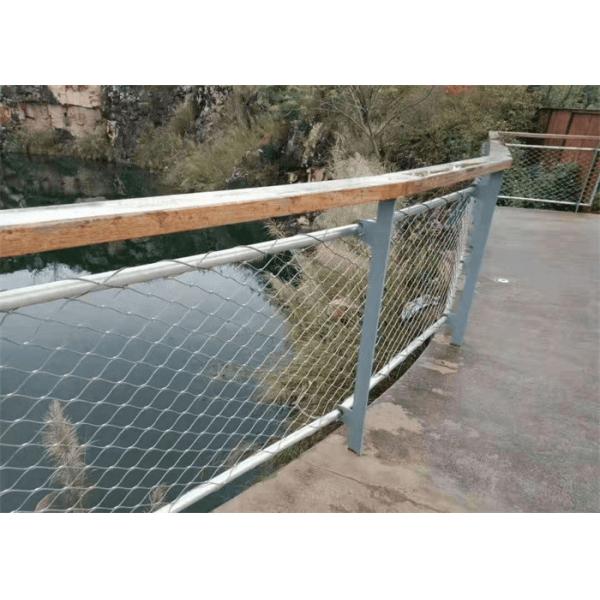

1.Steel Mesh Balustrade - bridge, stair, balcony, path
2. Cable Mesh - Excellent Solution to Safety
3. Safety Net - Structural Measure to Prevent Suicide
4. Helipad Safety Net - Modular Heliport Webbing
5. Cable Zoo Mesh - Solution to Enclosing Most Animals
6. Aviary Netting - Lightweight, Durable and Long Lasting
7. Green Facade - Cable System for Most Climbing Plants

Diamond Stainless Steel Mesh Sheet , 316 Woven Metal Mesh For Balustrades Handrails

Packing & Delivery of Stainless Steel Wire Rope Mesh/Balustrades Mesh
1. The set of paper tube.
2. Outside waterproof paper (kraft paper) + bubble pad.
3. Finally in a wooden case or pallet.
4. Also we can as per your requirements.
