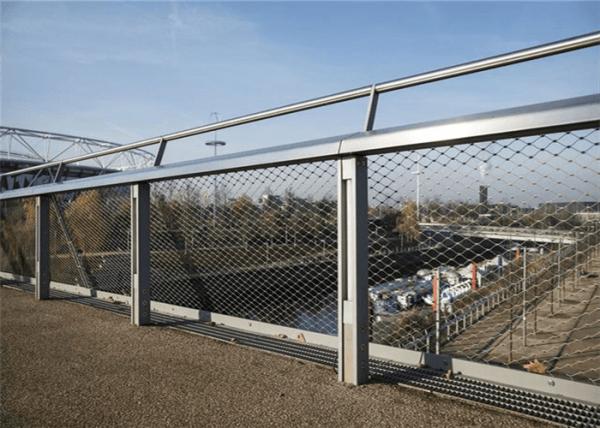

Ferruled AISI Stainless Steel Wire Trellis 304 Woven Steel Mesh Railing
Ferruled AISI Stainless Steel Wire Trellis 304 Woven Steel Mesh Railing
Ferruled AISI Stainless Steel Wire Trellis 304 Woven Steel Mesh Railing
Ferruled AISI Stainless Steel Wire Trellis 304 Woven Steel Mesh Railing
Specifications
Brand Name :
Jianping
Model Number :
JP-20100F
Certification :
CE , SGS
Place of Origin :
China
MOQ :
10 Sqm
Price :
USD 5-30/m2
Payment Terms :
T/T, Western Union,PayPal
Supply Ability :
9000m2/week
Delivery Time :
5-8 Work Days
Packaging Details :
Package film for each piece,Several pieces packed in 1 carton
Product Name :
Stainless Steel X-Tend Cable Mesh Railing
Material :
AISI304, AISI316, AISI316L
Wire Diameter :
1.2 Mm To 6.0mm
Size Of Hole :
20*20mm-300*300mm
Panel Size :
Customized In Width And Length
Rope Constructions :
7 X 7,7X 19
Finished :
Ultrasonic Bath , Black Oxide
Mesh Angle :
60 Degree
Mesh Shape :
Rhombus , Diamond
Mesh Type :
Ferruled Or Knotted
High Light: :
Stainless Steel Rope Mesh, Deck Railing,Stainless Steel X-Tend Cable Mesh Railing
Application :
Zoological Enclosures , Blustrade Infill , Facade Cladding
Description

Ferruled AISI304 Grade Stainless Steel Wire Rope Mesh X-Tend Cable Mesh Railing

1.The application of stainless steel x tend cable mesh

The rope mesh is hand-made from the stainless steel wire rope, there are two types.
Type: Ferruled, Knotted
Material: stainless steel304, 316,304L,316L
Rope wire diameter: 1.0mm to 6.0mm etc.
Rope construction: 7 x 7 and 7 x 19

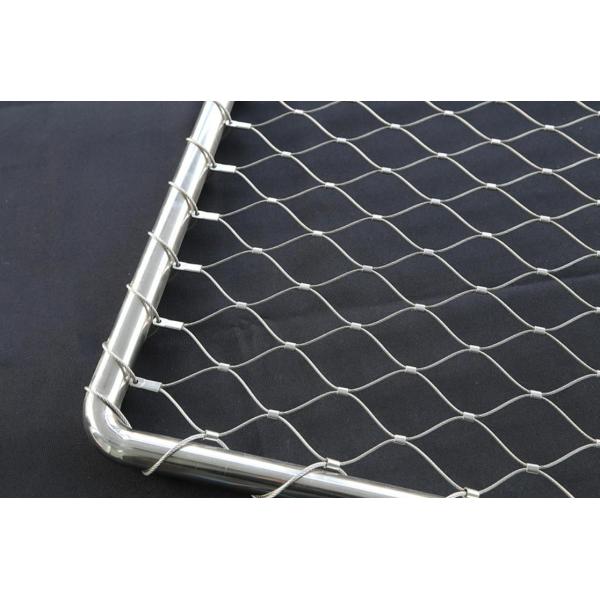

Stainless steel cable rope mesh are combined by ferrules to form diamond openings.
The angle is usually 60°. Other angel also we can made according request. Stainless steel ferruled rope mesh is very flexible,
and easy for installation.

2.The specification as follows:

Flexible stainless steel x tend cable mesh(Ferrule Type)
Flexible stainless steel x tend cable mesh(Ferrule Type)
Item No.s Cable Diameter Mesh Opening Size
(W×H)		 Normal Break
inch mm inch mm ibs.
JP-32120F 1/8 3.2 4.75×8.23 120×207.8 1,600
JP-32102F 1/8 3.2 4×6.9 102×176.7 1,600
JP-3290F 1/8 3.2 3.5×6.15 90×156 1,600
JP-3276F 1/8 3.2 3×5.2 76×131.6 1,600
JP-3251F 1/8 3.2 2×3.46 51×88.3 1,600
JP-24100F 3/32 2.4 4×6.9 102×176.7 920
JP-2490F 3/32 2.4 3.55×6.15 90×156 920
JP-2476F 3/32 2.4 3×5.2 76×131.6 920
JP-2460F 3/32 2.4 2.4×4.16 60×104 920
JP-2451F 3/32 2.4 2×3.46 51×88.3 920
JP-2076F 5/64 2.0 3×5.2 76×131.6 676
JP-2060F 5/64 2.0 2.4×4.16 60×104 676
JP-2051F 5/64 2.0 2×3.46 51×88.3 676
JP-2038F 5/64 2.0 1-1/2×2.6 38×65.8 676
JP-1676F 1/16 1.6 1.2×2.08 76×131.6 480
JP-1651F 1/16 1.6 2×3.46 51×88.3 480
JP-1638F 1/16 1.6 1-1/2×2.6 38×65.8 480
JP-1630F 1/16 1.6 1.2×2.08 30×52 480
JP-1625F 1/16 1.6 1×1.73 25.4×44 480
JP-1238F 3/64 1.2 1-1/2×2.6 38×65.8 270
JP-1230F 3/64 1.2 1.2×2.08 30×52 270
JP-1225F 3/64 1.2 1×1.73 25.4×44 270
JP-1220F 3/64 1.2 4/5×1.39 20×34.6 270

Ferruled AISI Stainless Steel Wire Trellis 304 Woven Steel Mesh Railing

Ferruled AISI304 Grade Stainless Steel Wire Rope Mesh X-Tend Cable Mesh Railing
