Specifications
Brand Name :
Jianping
Model Number :
JP-2080
Certification :
CE , SGS
Place of Origin :
China
MOQ :
10 Sqm
Price :
USD 5-30/m2
Payment Terms :
T/T, Western Union,PayPal
Supply Ability :
9000m2/week
Delivery Time :
5-8 Work Days
Packaging Details :
Package film for each piece,Several pieces packed in 1 carton
Product Name :
Stainless Steel X Tend Cable Mesh
Rope Constructions :
7 X 7,7×19
Mesh Type :
Ferruled Or Knotted
Material :
SUS304,SUS316,SUS316L
Wire Diameter :
1.2 Mm 1.5mm 2.0mm 2.5mm 3.0mm 4.0mm
Size Of Hole :
25*25mm-300*300mm
Panel Size :
Customized In Width And Length
Finished :
Ultrasonic Bath , Black Oxide
Mesh Angle :
60 Degree
Mesh Shape :
Rhombus , Diamond
High Light: :
Stainless Steel Rope Mesh, Deck Railing,Stainless Steel X Tend Cable Mesh
Application :
Zoological Enclosures , Blustrade Infill , Facade Cladding
Description
Stainless Steel Wire Rop X Tend Cable Mesh For Handrail Balcony Infill Description :
  • Stainless steel cable mesh is made of stainless steel wire cable. There are three types: weave type, loose ferrule type and seamless sleeves type. Stainless steel rope mesh is coloured by surface treatment for decoration materials.
  • Stainless steel rope net is a net-like product processed by stainless steel rope according to certain methods and procedures. The common ones are mainly stainless steel buckle rope net and stainless steel braided rope net. The stainless steel buckle rope net is extruded and woven by stainless steel wire rope and stainless steel buckle.The steel buckle is mainly made of stainless steel buckle, and there are also aluminum buckles and copper buckles for customers to choose from.The stainless steel rope mesh woven net is formed by cross-weaving with a plurality of steel wire ropes, and the net is durable and unbreakable, and the bearing capacity is large.

316L X Tend Cable Mesh 1.2mm 1.5mm Handrail Wire Mesh For Balcony Infill

Stainless Steel Wire Rop X Tend Cable Mesh For Handrail Balcony Infill

Stainless Steel X Tend Cable Mesh Specification:
Stainless Steel Wire Rop X Tend Cable Mesh For Handrail Balcony Infill
Product Name Stainless Steel Wire Rop X Tend Cable Mesh For Handrail Balcony Infill
Raw Material Stainless Steel 304 316, Galvanized Wire
Type Ferrule Type or Knotted Type
Specification Rope, 7x7 or 7x19
Mesh, 30mm to 200mm
Wire diameter, 1.0 to 4.0mm
Feature

1. high quality material

2. uniform mesh

3. standard size

4. long uselife

5. strong tensile

6. easy install

Application

Balustrade Mesh

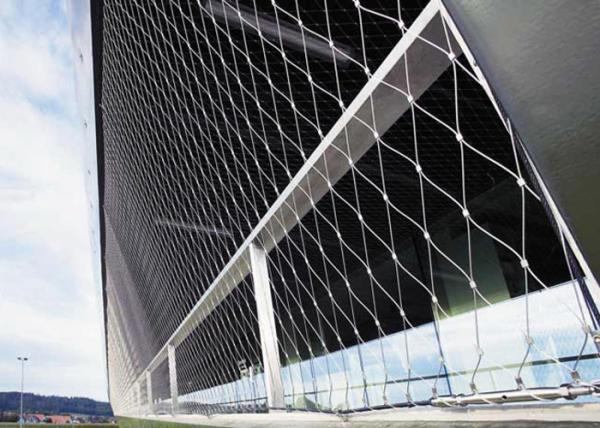

Stainless steel rope mesh is also used for the balustrade of stair or balcony. It can make the stair grand, beautiful and safer.
Decoration Mesh
The diamond-shaped holes make the stainless steel rope mesh have aesthetic appearance, so rope mesh can be used for decoration of
building, such as ceiling and curtain wall.
Green Wall
Stainless steel rope mesh is resistant to corrosion and rust even though it is exposed to sun directly. And it can make the green
wall with green plants. Green wall can regulate the temperature of the building and it can protect the building wall.
Aviary Netting
The mesh size and opening size of stainless steel rope mesh can be modified. So it can provide enough space and create a natural
environment for birds to make them live comfortably.
Zoo Mesh
Stainless steel rope zoo mesh has diamond-shaped openings and high strength, which can protect visitors from being damaged.
Therefore, visitors can enjoy the animals at a close distance free of danger. What's more, it can protect animals from being hurt.

Suspension Bridge Railing Mesh
Stainless steel rope mesh is also mainly used in the suspension bridge railing.
Helideck Mesh
Stainless steel rope mesh can ensure the safety of helicopters and passengers when it is used as the helideck mesh. It is
installed around the helicopter landing deck.
Slope Protection Rope Mesh
Slope protection rope mesh has enough intercept strength to prevent the rocks from slope falling onto road, railway, expressway or
other structures. Instead, rocks will fall to the foot of slope behind the rope mesh.

Packing The rope mesh will be rolled and packed into the P.P. woven bags or wooden crates.

316L X Tend Cable Mesh 1.2mm 1.5mm Handrail Wire Mesh For Balcony Infill

Stainless Steel X Tend Cable Mesh Packing & Delivery
1. The set of paper tube.
2. Outside waterproof paper (kraft paper) + bubble pad.
3. Finally in a wooden case or pallet.
4. Also we can as per your requirements.

Our Services:
Sample: Valid
Delivery time: The shortest of production time.
If have stocks, the shipping within 3 days.
Payment: T/T, L/C, Western Union.
The mode of transportation: Sea shipping, air shipping,International express.
Why choose us?
Professional & experienced company.
Professional design team& excellent sales team for your service;
Quick delivery& superior quality
