Stainless Steel Wire Rope Mesh is custom manufactured to in widths and lengths to suit your architectural application. Finished diamond mesh style when it is stretched at 60 degree angle ; Diagonal and irregular shapes can also be supplied. Mesh can be applied in either a vertical or horizontal direction, again dependent on the balustrade or railing design and the required

Flexible AISI304 Grade Hand Woven X-Tend Stainless Steel Black Oxide Wire Rope Mesh

This type mesh is made of stainless steel aircraft cable comes in custom panel size ranging from 1/64" to 1/8" .
diameter cable with mesh size from 1"~4" being typical and in plain satinless steel and black oxide finished. Brozen finished is available in samller diameter cables.

Knotted mesh is a kind of plain weave, each warp wire rope crosses alternately above and below each weft wire rope. Warp and weft wire ropes generally have the same diameter.

Ferruled mesh is of the same physical properties with the knotted mesh, the only difference is in the combination style, the stainless wire rope are combined by the ferrules which are made of the same grade stainless steel.

Stainless steel rope mesh ,also called SS cable mesh, made form high quality stainless steel wire rope, with the features ofextremely anti-corrosion and esistant to UV rays, has a long lifespan in the harsh environments.
Stainless steel cable rope mesh are combined by ferrules to form diamond openings.
The angle is usually 60°. Other angel also we can made according request. Stainless steel ferruled rope mesh is very flexible,
and easy for installation.

2.Specification of Black Oxide Wire Rope Mesh

3.Product Application

Hand Woven X-Tend Stainless Steel Black Oxide Wire Rope Mesh is very flexible, and its width and length can be modified. Therefore, it is widely used in various fields of our daily life, such as Slope Protection Rope Mesh, Zoo Mesh, Green Wall Rope Mesh, Decoration Mesh, Balustrade Mesh, Safety rope mesh, Suspension Bridge Railing Mesh, Anti-theft Backpack Protector.

Green wall mesh Zoo mesh

Decorative rope mesh Safety rope mesh

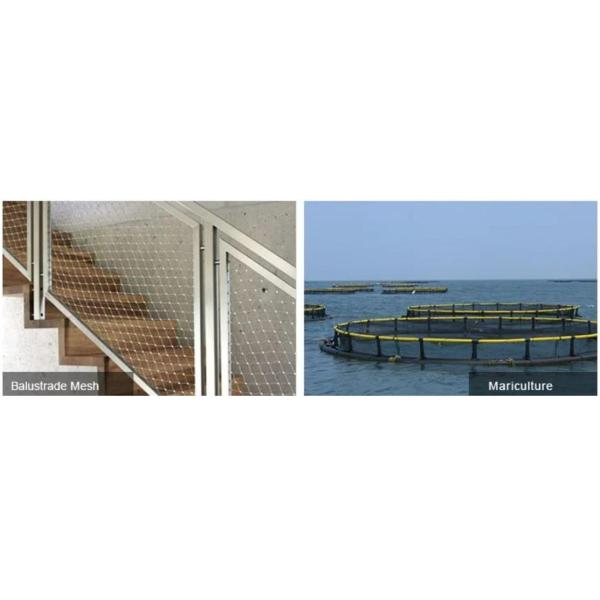

Balustrade rope mesh Mariculture rope mesh
