Metal Woven Black Oxide Wire Rope Mesh Flexible 304L 316L For Zoological Enclosures
Metal Woven Black Oxide Wire Rope Mesh Flexible 304L 316L For Zoological Enclosures
Metal Woven Black Oxide Wire Rope Mesh Flexible 304L 316L For Zoological Enclosures
Metal Woven Black Oxide Wire Rope Mesh Flexible 304L 316L For Zoological Enclosures
Metal Woven Black Oxide Wire Rope Mesh Flexible 304L 316L For Zoological Enclosures
Metal Woven Black Oxide Wire Rope Mesh Flexible 304L 316L For Zoological Enclosures
Metal Woven Black Oxide Wire Rope Mesh Flexible 304L 316L For Zoological Enclosures
Metal Woven Black Oxide Wire Rope Mesh Flexible 304L 316L For Zoological Enclosures
Specifications
Brand Name :
Jianping
Model Number :
JP-2050K
Certification :
CE , SGS
Place of Origin :
China
MOQ :
10 Sqm
Price :
USD 5-30/m2
Payment Terms :
T/T, Western Union,PayPal
Supply Ability :
9000m2/week
Delivery Time :
5-8 Work Days
Packaging Details :
Package film for each piece,Several pieces packed in 1 carton
Product Name :
Black Oxidation Flexible Stainless Steel Wire Rope Mesh /Black Oxide Wire Rope MeshCable Net
Material :
AISI 304/316/304L/316L
Mesh Type :
Ferruled Or Knotted
Mesh Angle :
60 Degree
Wire Diameter :
1.2 Mm To 6.0mm
Size Of Hole :
20*20mm-300*300mm
Panel Size :
Customized In Width And Length
Rope Constructions :
7 X 7,7X 19
Finished :
Ultrasonic Bath , Black Oxide
Mesh Shape :
Rhombus , Diamond
High Light: :
Stainless Steel Black Oxide Wire Rope Mesh, Deck Railing,Hand Woven X-Tend Stainless Steel Cable Rope Mesh
Application :
Zoological Enclosures , Blustrade Infill , Facade Cladding
Description

Black Oxidation Flexible Stainless Steel Wire Rope Mesh Cable Net/Black Oxide Wire Rope Mesh

1. Products Description of Black Oxide Wire Rope Mesh

Stainless steel wire rope woven mesh black oxide treatment does not destroy the physical characteristics of the rope, to maintain its original ductility and flexibility. The black oxide wire rope woven mesh can absorb sunlight, against dazzling intense sunlight, it's good protection for animal, so, black oxide mesh commonly used for stainless steel aviary mesh, stainless steel bird netting, stainless steel monkey enclosure mesh, stainless steel zoo mesh etc, This netting made from stainless steel cable comes in custom panel sizes, any size and shape can be customized.

Black oxide stainless steel cable mesh is the same like original color stainless steel cable mesh,they are both:
1. Black oxide mesh corrosion-resistant, no rust, suitable for all kinds of outdoor environment, and can be used more than 30 years
2. Various specifications, can be customized by buyer's requirement;
3. Flexible, free to fold and easy install, can be produced any shape;
4. Strong and durable, not easy breaking, can accpet the heavy pressure;
5. Green, non-toxic harmless, reusable.

Black Oxidation Flexible Stainless Steel Wire Rope Mesh Cable Net/Black Oxide Wire Rope Mesh

material 304, 316L, High strentch raw material
Woven Hand made.
wire diamater 0.5-6mm
Width 0.5-1.8m and as your requirement

Metal Woven Black Oxide Wire Rope Mesh Flexible 304L 316L For Zoological Enclosures



2.Specification of Black Oxide Wire Rope Mesh

Black Oxidation Flexible Stainless Steel Wire Rope Mesh Cable Net/Black Oxide Wire Rope Mesh


Black Oxidation Flexible Stainless Steel Wire Rope Mesh Cable Net/Black Oxide Wire Rope Mesh
Item No.s Cable diameter Mesh Opening(W x H) Cable Structure
mm mm
JP-4021K 4.0 210 x 210 7 x 19
JP-4018K 4.0 180 x 180 7 x 19
JP-4015K 4.0 150 x 150 7 x 19
JP-4012K 4.0 120 x 120 7 x 19
JP-3021K 3.0 210 x 210 7 x 19
JP-3018K 3.0 180 x 180 7 x 7
JP-3015K 3.0 150 x 150 7 x 7
JP-2013K 3.0 120 x 120 7 x 7
JP-3010K 3.0 100 x 100 7 x 7
JP-3075K 3.0 75 x 75 7 x 7
JP-2018K 2.0 180 x 180 7 x 7
JP-2015K 2.0 150 x 150 7 x 7
JP-2012K 2.0 120 x 120 7 x 7
JP-2010K 2.0 100 x 100 7 x 7
JP-2075K 2.0 75 x 75 7 x 7
JP-2060K 2.0 60 x 60 7 x 7
JP-2050K 2.0 50 x 50 7 x 7
JP-1510K 1.5 100 x 100 7 x 7
JP-1575K 1.5 75 x 75 7 x 7
JP-1560K 1.5 60 x 60 7 x 7
JP-1550K 1.5 50 x 50 7 x 7
3.Feature of Black Oxide Wire Rope Mesh
*High strength, strong toughness, free-angles curving and fold,it is discreet and portable.
* Lightweight, high-strength, never rust, softness.
*Anti-corrosive, resist the rust, can be repeated use.
*Impact resistance, breaking force, the overall structure of the rugged life of more than 30 years
*The mesh size and diameter can be modif
4.. Application of Black Oxide Wire Rope Mesh
Hand Woven X-Tend Stainless Steel Black Oxide Wire Rope Mesh is very flexible, and its width and length can be modified. Therefore, it is widely used in various fields of our daily life, such as Slope Protection Rope Mesh, Zoo Mesh, Green Wall Rope Mesh, Decoration Mesh, Balustrade Mesh, Safety rope mesh, Suspension Bridge Railing Mesh, Anti-theft Backpack Protector.

Metal Woven Black Oxide Wire Rope Mesh Flexible 304L 316L For Zoological Enclosures

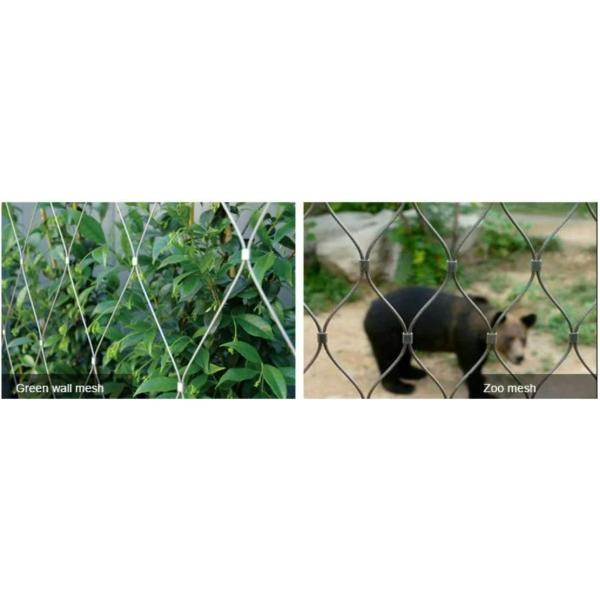

Green wall mesh Zoo mesh

Metal Woven Black Oxide Wire Rope Mesh Flexible 304L 316L For Zoological Enclosures

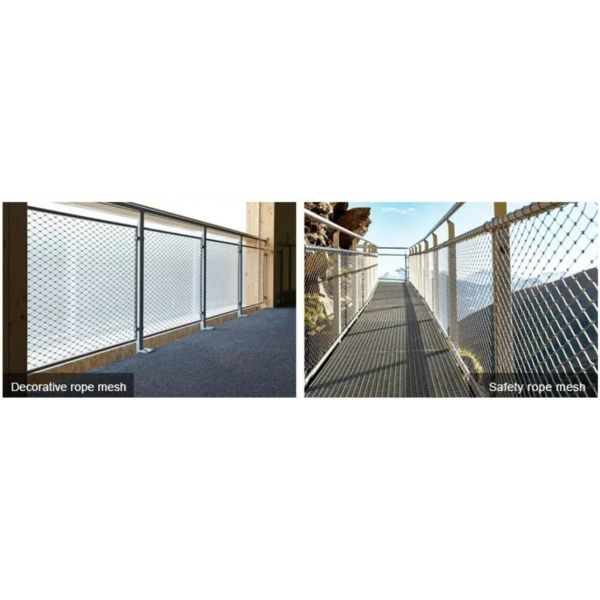

Decorative rope mesh Safety rope mesh

Metal Woven Black Oxide Wire Rope Mesh Flexible 304L 316L For Zoological Enclosures
