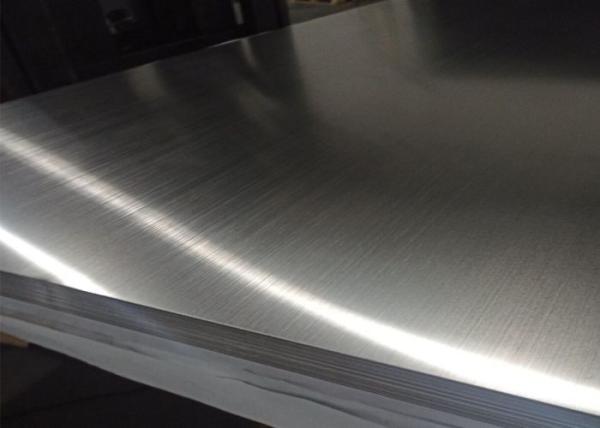

Alkali Resistant 5182 Aluminium Steel Plate 1mm Thickness For Oil Tank
Alkali Resistant 5182 Aluminium Steel Plate 1mm Thickness For Oil Tank
Alkali Resistant 5182 Aluminium Steel Plate 1mm Thickness For Oil Tank
Alkali Resistant 5182 Aluminium Steel Plate 1mm Thickness For Oil Tank
Alkali Resistant 5182 Aluminium Steel Plate 1mm Thickness For Oil Tank
Alkali Resistant 5182 Aluminium Steel Plate 1mm Thickness For Oil Tank
Specifications
Model Number :
5182
Certification :
Material Test Certificate
MOQ :
1 PC
Price :
Translation Price
Payment Terms :
L/C At Sight,, T/T, Western Union
Supply Ability :
3000Tons/Month
Delivery Time :
10-15 work days
Packaging Details :
Kraft Paper+Wooden Pallet+Wooden Box
Product Name :
5182 Aluminum Sheet Metal
Material :
5182
Application :
Oil Tank
Thickness :
1mm
Alloy Or No :
Alloy
Type :
Sheet
Description

5000 Series 5182 Aluminum Sheet Metal 1mm Thickness Used In Oil Tank

Product Description

Strong corrosion resistance: The surface of 5182 aluminum sheet can form a dense oxide film, which plays a good role in rust prevention, acid resistance, alkali resistance.

Strong weather resistance: 5182 aluminum sheet used for automobile body or building exterior wall is sprayed with special paint or PVDF fluorocarbon paint. The service life up to 25 years and the color will not fade.

High plasticity: 5182 aluminum sheet has good forming and processing performance, which can be well adapted to milling, boring, planing and other mechanical processing at the maximum speed that can be achieved by most machine tools.

Excellent form ability: Mn content less 5182 aluminum sheet relative 5083 alloy is more suitable for material forming. Most importantly, 5182 alloy is the best for large forming application compared with other series.

Outstanding weld ability: Gas welding, argon arc welding, spot welding and roll welding of 5182 aluminium alloy are all very good.

Other properties: Besides, 5182 aluminum sheet also has good strength, appropriate cutting performance, etc.

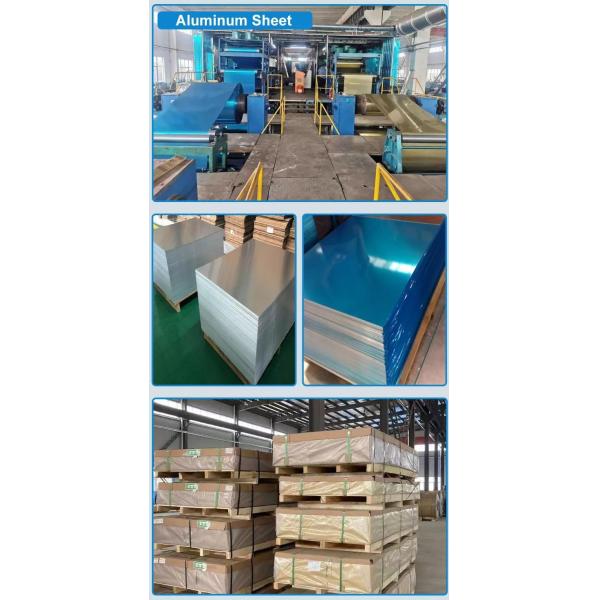

Product Display

Chemicai Composition(WT%)
Grade (Si) (Cu) (Mg) (Zn) (Mn) (Ti) (Cr) Fe (Al)
5182 ≤0.2 ≤0.15 4.0-5.0 ≤0.25 0.2-0.5 ≤0.1 ≤0.1 ≤0.35 Balance
Mechanical Properties
Yield Strength Tensile Strength El(%)

130 Mpa

 275 Mpa 12%

Usages

Automobile Parts Manufacturing

5182 aluminum sheet is widely used in the manufacture of car door, hood, front, rear wing board and other parts. Its quality of a material is light, stamping effect is very good, thus for the present lightweight development to create a unique shape, energy saving and environmental protection, the fastest speed of the car.

Other Uses

In addition, 5182 aluminum sheet is also used for plasticity and welding requirements are high conditions. Or low – load parts that work in a liquid or gaseous medium. For example, oil tanks, lubricating oil ducts, various liquid containers and other low-load parts made by deep drawing.

Alkali Resistant 5182 Aluminium Steel Plate 1mm Thickness For Oil Tank

Advantage

A. low density The density of aluminum alloy power cable is 2.7g/cm³ (one-third of the density of iron and copper), the ductility is good, and the conductivity is two-thirds of that of copper wire, but the quality is only one-third, and the price is relatively high. It is cheaper and is widely used in the manufacture of high-voltage wires, cables, and radio industries. The density of pure aluminum is relatively low, but the density and hardness of aluminum alloys have been greatly improved. At present, aluminum alloys have been widely used in aircraft, automobiles, trains, ships and other manufacturing industries. In addition, space rockets, space shuttles, and artificial satellites also use a large amount of aluminum and its aluminum alloys.
B. Heat conductor Aluminum is a good conductor of heat (the thermal conductivity is 3 times greater than that of iron), and aluminum can be used in industry to manufacture various heat exchangers, heat dissipation materials and cooking utensils.
C. Scalability Aluminum has good ductility (second only to gold and silver), and can be made into aluminum foil thinner than 0.01 mm at 100 ℃ ~ 150 ℃. These aluminum foils are widely used for packaging cigarettes, candies, etc., and can also be made into aluminum wires, aluminum strips, and can be rolled into various aluminum products.
