In high-vibration industrial applications, maintaining bolt preload and preventing fastener backing-out is a critical engineering challenge. Standard flat washers, split lock washers, and conventional hardware frequently fail under heavy cyclic loading, thermal oscillations, or continuous mechanical shock. Over time, micro-rotations cause structural joints to loosen, leading to catastrophic equipment failure, unscheduled maintenance downtime, and severe industrial hazards.

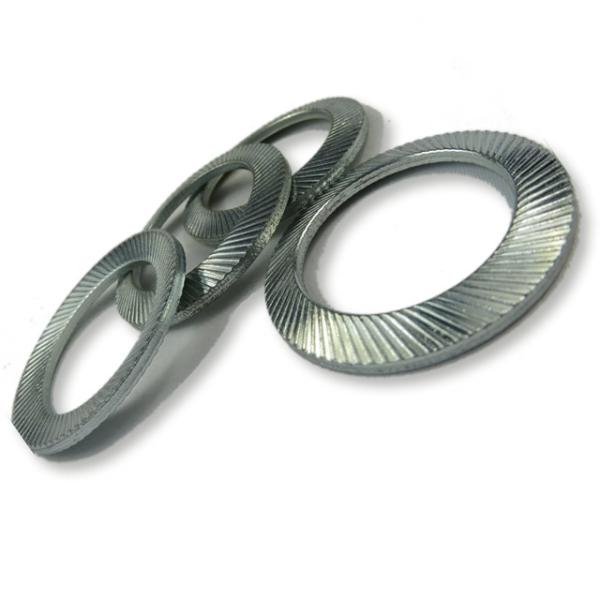

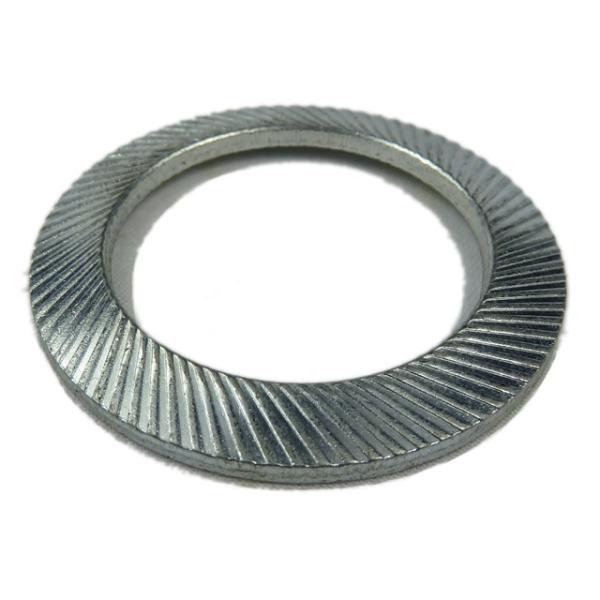

As an elite, high-tech innovator specializing in premium elastic and locking components, Jiangsu Sunzo Spring Elasticity Technology Co., Ltd. (SUNZO) manufactures high-performance DIN 9250 serrated safety washers (globally recognized across B2B procurement networks as ribbed locking washers, serrated lock washers, or anti-vibration safety rings). Designed to ensure maximum fastener security in severe operating environments, Sunzo’s locking technology integrates a precision-engineered gear surface that provides a dual-security mechanism trusted by international OEMs, automotive tier-1 suppliers, and heavy machinery builders.

Jiangsu Sunzo’s DIN 9250 serrated safety washers are engineered to redefine anti-loosening performance by combining physical friction with an active mechanical interlock:

While conventional washers rely entirely on simple clamping force to resist movement, the DIN 9250 features an engineered gear profile. Upon installation, the washer's precision-machined surface generates immense frictional resistance against the joint interface while the teeth create an active mechanical interlock, biting directly into the fastener head and the mating substrate to form an unbreakable barrier against vibrational loosening.

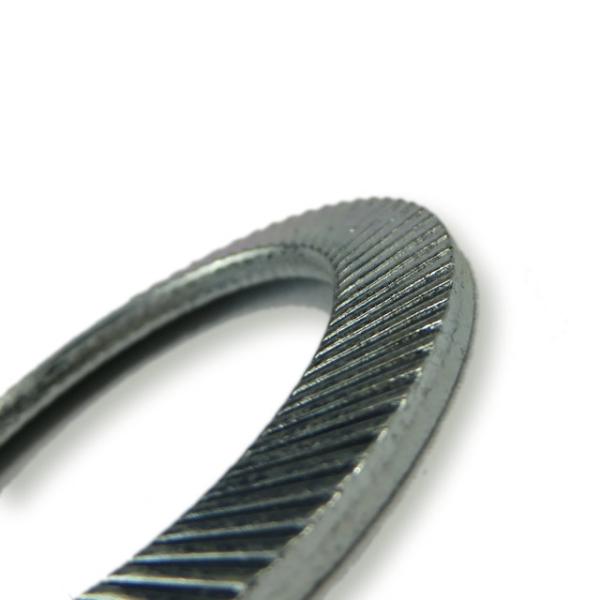

The core of this anti-vibration technology lies in a serrated profile with carefully calibrated tooth angles ranging from  to . This precise angular configuration transforms static friction into a dynamic physical wedge. As cyclic forces try to back out the bolt, the inclined teeth grip tighter, eliminating the micro-rotations that gradually bleed off clamping force.

To ensure absolute reliability on the factory floor, our safety washers have undergone rigorous, independent ISO 16130 vibration testing (Junker testing). The results prove that Sunzo’s DIN 9250 design maintains up to 90% of its initial preload after 10,000 extreme vibration cycles, outperforming standard washers by over 300% in anti-loosening efficiency.

Operating conditions across high-end commercial and industrial sectors require strict metallurgical control. Jiangsu Sunzo maintains full heat-number traceability across a broad material inventory, ensuring all DIN 9250 serrated lock washers deliver exact hardness and elasticity parameters:

• High-Carbon Steel (SAE 1065 / 65Mn): Heat-treated, hardened, and tempered to achieve the exact spring-back characteristics and tooth hardness required to firmly bite into standard industrial bolts (up to property class 8.8 and 10.9).
• Austenitic Stainless Steel (SUS 304 / SUS 316): Selected for applications demanding robust rust, chemical, and moisture resistance. SUS 316 is heavily utilized in marine hardware, food-processing equipment, and outdoor infrastructure.
• Exotic Alloys (Titanium / Inconel): Fully customizable upon request for specialized light-weighting parameters or highly aggressive chemical media where conventional steels degrade.

Sunzo manufactures a complete portfolio of safety washers adhering strictly to DIN 9250 dimensional envelopes, supporting both standard series and custom non-standard diameters:

更多选项

Application Integration Note: To achieve maximum anti-loosening security, the mechanical hardness of the DIN 9250 safety washer must always exceed the hardness of the mating fastener and substrate, ensuring the gear profile can successfully bite into the contact surfaces.

Thanks to their high vibration resistance, spatial efficiency, and robust locking capabilities, Sunzo's serrated safety washers are deployed globally across demanding high-stress sectors:

• Automotive Powertrains & High-Compression Engines
  Placed within engine blocks, exhaust manifolds, transmission linkages, and suspension sub-assemblies. These areas endure continuous thermal oscillations and high-frequency mechanical vibrations, making reliable preload retention essential to preventing fluid leaks or structural detachment.
• Industrial Robotics & Automation Equipment
  Integrated into high-speed CNC machine tools, automated picking arms, heavy-duty stamping presses, and conveyor motor drives. The serrated washer dampens harmonic vibrations and prevents micro-movements, ensuring continuous precision alignment and reducing unscheduled maintenance cycles.
• Heavy Construction Equipment & Mining Infrastructure
  Deployed in high-impact environments including industrial cranes, mining crushers, vibratory compactors, and structural steel bridges. These joints experience extreme impact shocks where standard split washers flatten out and lose their locking force completely.
• Precision Electronics & Telecom Enclosures
  The micro-series (M1.6 to M4) is utilized within server racks, industrial control panels, and aerospace avionics housings, protecting delicate printed circuit boards (PCBs) and electrical terminals from vibration-induced loose contacts.

To prevent atmospheric degradation and eliminate the risk of hydrogen embrittlement in high-tensile structural joints, Jiangsu Sunzo offers multiple high-performance surface treatments:

• Mechanical Zinc Plating: Provides excellent galvanic corrosion protection for high-carbon steel substrates without introducing hydrogen atoms into the crystalline matrix, preventing brittle failure.
• Industrial Black Oxide (Blackening): Adds a uniform, non-reflective layer of mild corrosion resistance while maintaining absolute dimensional stability, perfect for tight-tolerance internal sub-assemblies.
• Dacromet / Geomet Coatings: A high-end zinc-aluminum flake coating system that easily survives extended salt spray testing. Dacromet-coated safety washers are highly recommended for severe outdoor, marine, and offshore infrastructure.

Jiangsu Sunzo Spring Elasticity Technology Co., Ltd. operates a robust manufacturing infrastructure designed for international supply chain stability. Housing more than 200 large-scale punching machines, high-speed progressive stamping lines, and precision CNC machine tools, Sunzo seamlessly handles everything from specialized short-run prototyping to multi-container global shipments with absolute batch-to-batch consistency.

Our production facilities operate under strict international management architectures, holding active certifications for IATF 16949 (Automotive Quality Management) and ISO 9001 (Quality Management System). To ensure exact print compliance, Sunzo maintains an on-site testing center featuring:

• Handheld X-ray Fluorescence (XRF) spectrometers for 100% positive material identification (PMI).
• Automated precision thickness gauges and optical sorting machines to filter out dimensional variances.
• Electro-hydraulic Junker vibration testing rigs to verify real-time torque and preload retention under simulated operational fatigue.

Sunzo optimizes its design, prototyping, and export logistics through a balanced dual-center footprint within Jiangsu Province, China:

• Nanjing Engineering Hub: Located in the provincial capital of Nanjing, our R&D center focuses on advanced material fatigue analysis, custom tooth-profile modeling, and joint relaxation research.
• Sihong Manufacturing Base: Spanning 60 modern acres within the Sihong Economic Development Zone in Suqian, Jiangsu Province, our mega-base manages large-scale stamping, automated atmosphere-controlled heat treatment, and global shipping operations.

Positioned near major international maritime logistics hubs like Shanghai Port, Sunzo delivers reliable global supply chain execution alongside comprehensive technical support. Our engineering division provides digital CAD drawings, custom tooth configuration cross-referencing, and material validation reports. Contact our Nanjing sales office or our Sihong manufacturing base today to eliminate vibration loosening and secure your competitive commercial quotes.
