Precision Machined Belleville Washers for High-Temperature Critical Applications

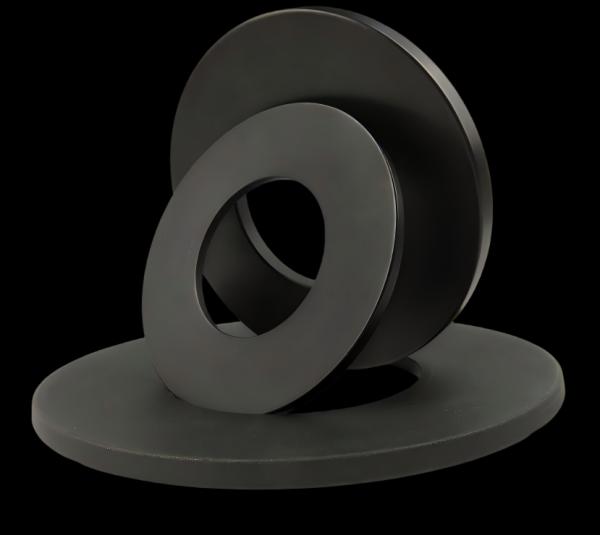

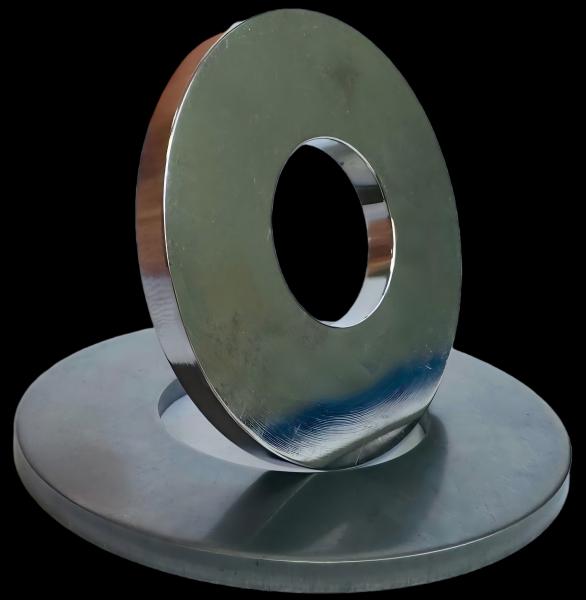

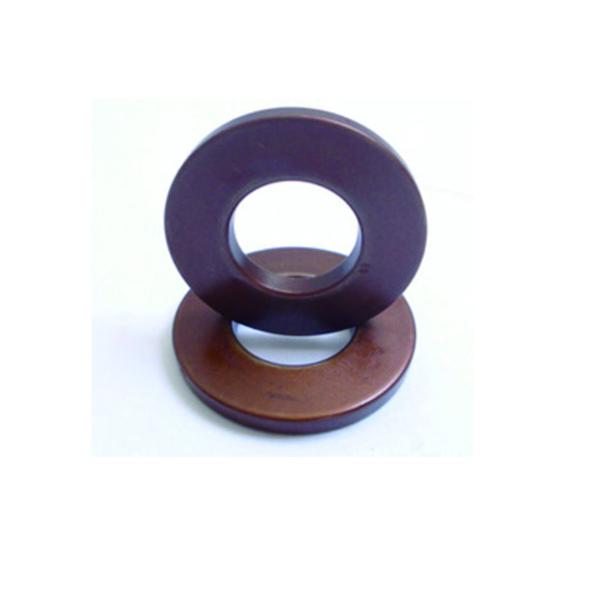

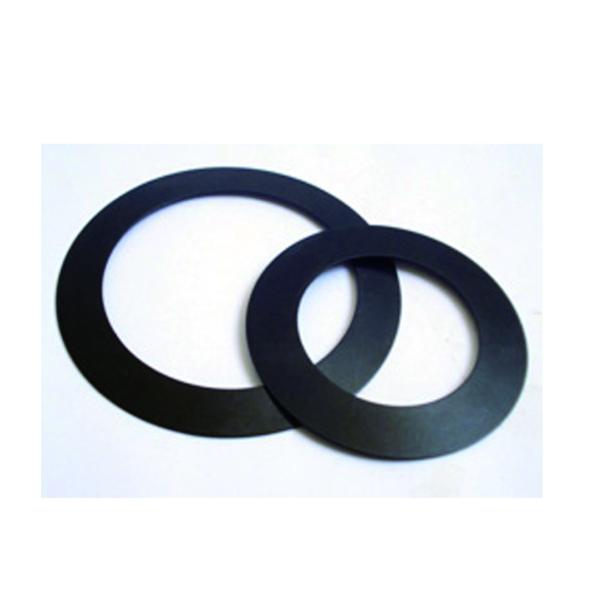

Premium aerospace grade high-temp disc springs (also known as Belleville washers) manufactured by SUNZO. Precision machined for critical applications demanding maximum fatigue life.

In aerospace engineering and high-precision automation, fastening systems must withstand extreme thermal gradients, aggressive chemical media, and severe cyclic stress. Standard commercial washers and generic coil springs cannot survive these environments; they quickly suffer from thermal creep, rapid load relaxation, and early fatigue failure. When a single component failure can compromise a commercial satellite launch or cause a high-speed CNC spindle to seize, tier-1 procurement officers require certified, traceable elasticity solutions.

As a premier, high-tech global innovator in advanced precision hardware, Jiangsu Sunzo Spring Elasticity Technology Co., Ltd. (SUNZO) specializes in manufacturing aerospace-grade high-temp disc springs. Backed by over 15 years of specialized metallurgical expertise and advanced manufacturing infrastructure, Sunzo engineers mission-critical conical springs (Belleville washers) that fulfill the most stringent technical requirements of international defense, aviation, and semiconductor supply chains.

Sunzo’s aerospace-grade disc springs are engineered to redefine reliability boundaries under extreme physical loads:

• Extreme Tensile Performance: Exhibits a premium tensile strength exceeding 1800 MPa, ensuring enormous force density within minimal spatial envelopes.

• Extended Fatigue Lifecycle: Engineered and micro-shot peened to comfortably exceed 10^6 continuous compression cycles without structural failure.

• Broad Operational Temperature Envelope: Maintains precise elastic properties across a vast thermal spectrum, operating reliably from cryogenic depths of -270°C up to high-temperature spikes of 650°C.

Operating inside jet engines, spacecraft, or ultra-clean semiconductor lithography chambers demands deep metallurgical expertise. Sunzo maintains strict raw material control, verifying that all alloys comply with international standard frameworks like ASTM F2328 and AMS 5662, supported by full EN 10204 3.1 certification for complete heat lot traceability.

• Inconel 718 (UNS N07718): This premier nickel-chromium superalloy delivers exceptional creep and relaxation resistance at sustained high temperatures, making it ideal for jet engine actuators, exhaust manifolds, and aircraft landing gear assemblies.

• 17-7 PH Stainless Steel (AISI 631): A precipitation-hardened stainless steel chosen for its excellent fatigue properties and corrosion resistance in aerospace applications like satellite deployment mechanisms and missile guidance systems.

• 50CrVA Premium Alloy Steel: Heavily utilized within precision machinery, maintaining 98% load retention after 10,000 extreme compression cycles—critical for high-speed CNC machine tool spindles and automated robotic arm joints.

To ensure long-term chemical resistance and prevent friction-induced wear, Sunzo applies specialized technical surface treatments:

• Electroless Nickel Plating: Applied at a precise thickness of 5–15 μm to provide uniform corrosion resistance across complex internal radiuses.

• Chemical Passivation: Executed strictly per ASTM A967 protocols to remove free iron from stainless alloy surfaces.

• PTFE Functional Coatings: Minimizes the coefficient of friction under high dynamic loads while providing a defense against aggressive aerospace fluids and solvents.

Sunzo’s production facilities feature advanced automated machinery designed to maintain exact geometric tolerances across production volumes:

• CNC Precision Stamping: Holds a strict dimensional tolerance envelope of ±0.01 mm, eliminating performance variances in multi-spring stacks.

• Atmosphere-Controlled Heat Treatment: Utilizes fully automated vacuum quenching and tempering systems to lock in uniform grain structure and prevent surface decarburization.

• In-Line Laser Metrology: Inspects components during production for immediate geometric verification of outer diameters ranging from 6 mm to 200 mm, as well as precise free height-to-thickness ($h_0/t$) ratios.

[CNC Stamping ±0.01mm] ➔ [Vacuum Quenching & Tempering] ➔ [In-Line Laser Inspection] ➔ [100% Quality Testing]

Sunzo operates under global quality management frameworks, achieving a 99.7% first-pass yield rate across all precision production lots. Our factory holds dual certification for:

• AS9100D: The global standard for quality assurance in the Aviation, Space, and Defense industries.

• ISO 13485: Medical Device Quality Management compliance for delicate surgical tool mechanisms.

Every production lot undergoes 100% compliance testing per ISO 16148, including computerized load-deflection curve validation, ultrasonic non-destructive flaw detection, and metallographic grain analysis. This strict quality control is why global industry leaders in aerospace, semiconductor manufacturing (such as ASML setups), and precision automation (like Fanuc configurations) rely on Sunzo components for their critical systems.

Sunzo optimizes its research, material testing, and export logistics through a balanced dual-center infrastructure in Jiangsu Province, China:

• Nanjing R&D Engineering Hub: Located in the provincial capital of Nanjing, our engineering team manages Finite Element Analysis (FEA) simulations for custom stack combinations, application-specific material selection, and rigorous failure-mode analysis.

• Sihong Manufacturing Base: Spanning 60 modern acres in the Sihong Economic Development Zone in Suqian, Jiangsu Province, our mega-factory houses over 200 large-scale punching machines and automated production lines.

Positioned near major shipping networks like Shanghai Port, Sunzo ensures reliable global supply chain execution, delivering to 42 countries. For urgent development projects, our team offers rapid prototyping with a 48-hour turnaround on custom configurations. Contact our Nanjing sales office or our Sihong manufacturing base today to integrate our precision disc springs into your systems or to request a competitive commercial quote.
