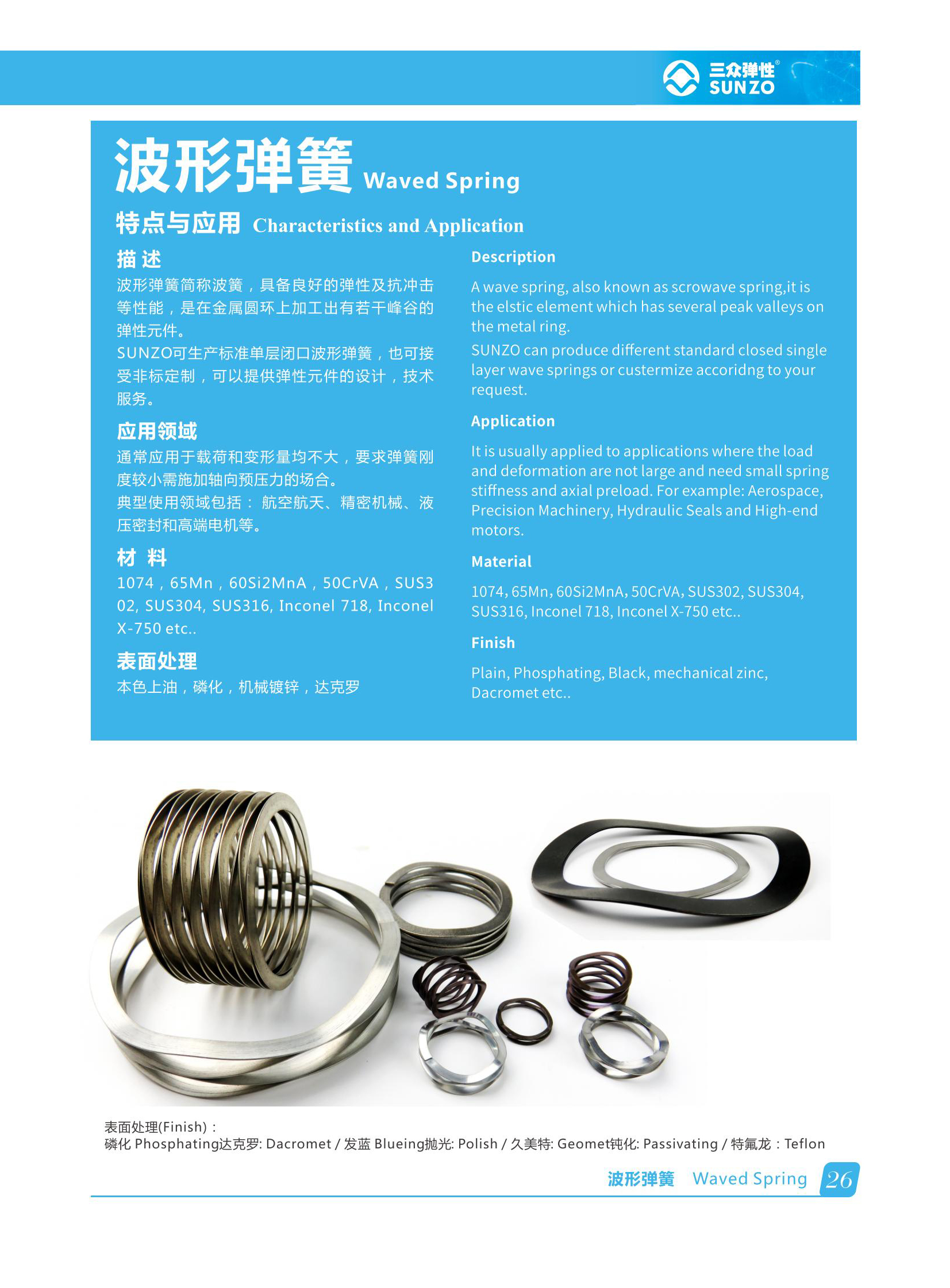

Zinc-Plated Waved Spring with Enhanced Durability and Corrosion Resistance for Hydraulic Seal Systems
Zinc-Plated Waved Spring with Enhanced Durability and Corrosion Resistance for Hydraulic Seal Systems
Zinc-Plated Waved Spring with Enhanced Durability and Corrosion Resistance for Hydraulic Seal Systems
Zinc-Plated Waved Spring with Enhanced Durability and Corrosion Resistance for Hydraulic Seal Systems
Zinc-Plated Waved Spring with Enhanced Durability and Corrosion Resistance for Hydraulic Seal Systems
Zinc-Plated Waved Spring with Enhanced Durability and Corrosion Resistance for Hydraulic Seal Systems
Specifications
Material :
1074 high-carbon steel, 50CrVA alloy steel, SUS302 stainless steel, Inconel X-750
Tensile strength :
1,200 MPa
Impact resistance :
400G dynamic loads
Coating thickness :
8-12μm
Friction reduction :
35%
Salt spray resistance :
800 hours
Diameter range :
10mm-300mm
Operating temperature :
-200°C to 350°C
Load-deflection tolerance :
±3%
Dimensional accuracy :
±0.02mm
Coating type :
Mechanical zinc plating
Service life :
200% extended
Peak-valley design :
Precision-formed
Elasticity :
Superior
Corrosion resistance :
Enhanced
Wear resistance :
Improved
Dynamic load capacity :
High
Fatigue resistance :
Excellent
Creep resistance :
Superior
Axial preload :
Consistent
Place of Origin :
Sihong, China
Brand Name :
Sunzo
Certification :
CE/IATF16949/45001/14001/9001
MOQ :
Negotiable
Price :
Negotiable
Packaging Details :
Carton
Delivery Time :
Negotiable
Payment Terms :
Negotiable
Description
Mechanical Zinc-Plated Waved Spring Enhanced Durability & Corrosion Resistance for Hydraulic Seal Systems
Hydraulic seal systems demand elastic elements that deliver exceptional durability, reliable performance, and resistance to harsh operating conditions. Our mechanical zinc-plated waved spring stands as the ideal solution for these demanding applications.
Product Overview
Also referred to as a wave spring, this precision-engineered component features a metal ring with precisely formed peaks and valleys, offering superior elasticity and impact resistance critical for maintaining seal integrity in hydraulic applications.
Key Performance Features
  • Tensile strength up to 1,200 MPa
  • Withstands 400G dynamic loads
  • 35% reduction in friction for enhanced wear resistance
  • Over 800 hours of neutral salt spray resistance (ASTM B117)
  • 200% extended service life compared to untreated alternatives
Technical Specifications
Coating Process Advanced mechanical zinc plating via electroplating technology
Coating Thickness 8-12μm uniform adherent coating
Standard Sizes Single-layer closed waved springs: 10mm-300mm diameters
Custom Solutions Fully customized designs available
Material Options
1074 High-Carbon Steel Cost-effective industrial applications
50CrVA Alloy Steel Operating temperature up to 350°C with excellent fatigue resistance
SUS302 Stainless Steel Low-temperature hydraulic environments (-200°C to 200°C)
Inconel X-750 High-pressure systems requiring superior creep resistance
Applications
These springs excel in critical hydraulic seal applications including valve actuators, piston assemblies, hydraulic cylinders, and gear pumps. They maintain consistent axial preload to prevent fluid leakage and ensure system efficiency across various industries.
Quality Assurance
Each unit undergoes rigorous quality testing including load-deflection curve validation (tolerance ±3%), dimensional accuracy checks (±0.02mm), and adhesion testing of the zinc coating. All products comply with ISO 9001 and SAE J2329 standards.
Industry Applications: Mobile hydraulics, industrial machinery, offshore oil & gas equipment, and other demanding hydraulic seal systems.
