Steel Basket 2kg 99dB 10 Inch 20khz Guitar Bass Speaker
Steel Basket 2kg 99dB 10 Inch 20khz Guitar Bass Speaker
Steel Basket 2kg 99dB 10 Inch 20khz Guitar Bass Speaker
Steel Basket 2kg 99dB 10 Inch 20khz Guitar Bass Speaker
Steel Basket 2kg 99dB 10 Inch 20khz Guitar Bass Speaker
Steel Basket 2kg 99dB 10 Inch 20khz Guitar Bass Speaker
Steel Basket 2kg 99dB 10 Inch 20khz Guitar Bass Speaker
Steel Basket 2kg 99dB 10 Inch 20khz Guitar Bass Speaker
Specifications
Place of Origin :
Guangdong, China
Brand Name :
OEM
Model Number :
HYW-1050-084A
Supply Ability :
5000 Piece/Pieces per Month
Packaging Details :
brown inner box and outer box packing
MOQ :
10 Piece/Pieces
Price :
$20.00 - $60.00 / Piece
Nominal diameter :
10"
RMS power :
150W
Frequency response :
55hz-20khz
Sensitivity :
99dB
LF magnet :
Neodymium
LF Voice coil diameter :
50mm/2"
HF Voice coil diameter :
34mm
Impedance :
8 ohm
Cone material :
Paper
Surround material :
Cloth
Port :
Huangpu port, Guangzhou
Description

10 inch Guitar Bass Speaker neodymium coaxial speaker with light weight 2kg 99dB

Product Description
  • 10 inch coaxial loudspeaker with 55-20,000Hz response
  • 150Wrms power handling and 99dB sensitivity
  • 2 inch high temperature copper voice coil wound
  • Steel frame neodymium magnet LF driver
  • Compact, lightweight neodymium compression driver
  • For portable speaker system, guitar speakers or other speakers system with limited weight
  • More models for choice
Specifications:
Nominal diameter 10 inch
Nominal impedance 8 Ω
RMS Power rating 150W
Max power handing 300W
Sensitivity (1w/1m) 99dB
Frequency range 55hz-20KHz
LF Voice coil diameter Φ50 mm

Basket

 Steel
Cone and dust cap Paper
Surround Cloth
Voice coil wire Copper
Voice coil former Glassfiber
Magnet material Neodymium
HF voice coil diameter 35mm/1.3inch
Thiele-Small Parameters
Fs 48.8HZ
Re (D.C.) 5.2Ω
Qms 11.67
Qes 0.43
Qts 0.41
Vas 71.5L
Cms 0.41
Bl 9.8
Xmax 6mm
Mounting Information
Overall diameter 257mm
Bolt Circle diameter 247mm
Baffle Cutout diameter 235mm
Total Depth 130mm
Flange thickness 5mm
Shipping Information
Net weight 2KG
Shipping weight 2.4KG
Shipping box size/ 1 unit 270x270x160mm

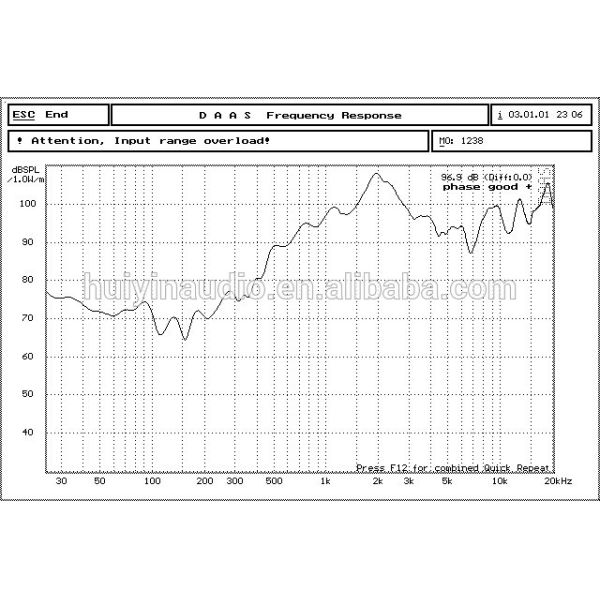

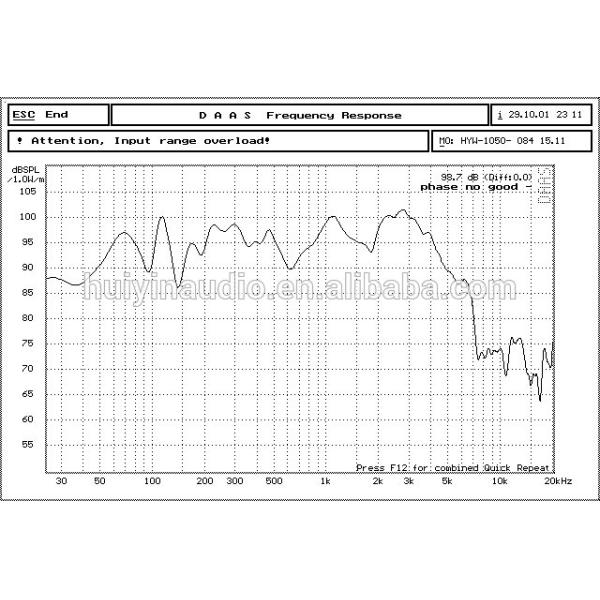

Frequency response curve
