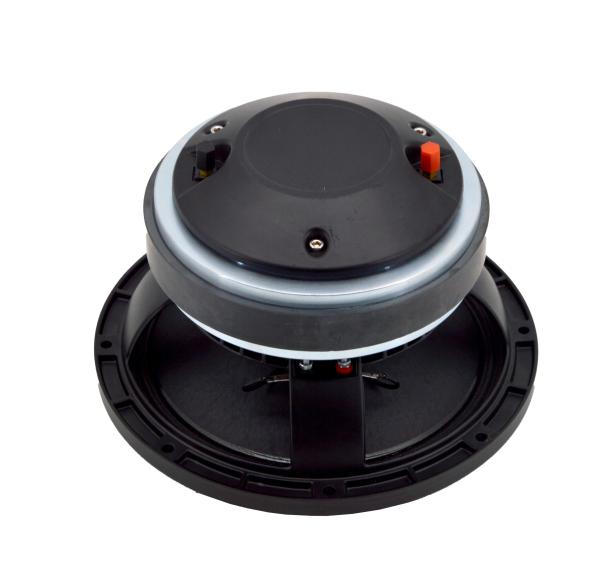

75mm Voice Coil 10 Inches 97dB Coaxial Speakers With Good Bass
75mm Voice Coil 10 Inches 97dB Coaxial Speakers With Good Bass
75mm Voice Coil 10 Inches 97dB Coaxial Speakers With Good Bass
75mm Voice Coil 10 Inches 97dB Coaxial Speakers With Good Bass
75mm Voice Coil 10 Inches 97dB Coaxial Speakers With Good Bass
75mm Voice Coil 10 Inches 97dB Coaxial Speakers With Good Bass
Specifications
Place of Origin :
Guangdong, China
Brand Name :
OEM
Model Number :
HYW-1075-030
Supply Ability :
50000 Piece/Pieces per Month
Packaging Details :
1. Inside + outside strong double boxes 2. Customized
MOQ :
2 Piece/Pieces
Price :
$40.00 - $60.00 / Piece
Type :
Coaxial speaker
Nominal diameter :
10 inch
Frequency response :
551hz-20khz
Program power :
700W
RMS Power handling :
350W
Sensitivity :
97dB
LF magnet :
Ferrite
LF Voice coil diameter :
75mm
HF Voice coil diameter :
75mm
Impedance :
8 ohm
Power :
350W
Frequency Range (Hz) :
55hz-20khz
Port :
Huangpu port, Guangzhou
Description

10 inch pa Coaxial speaker professional audio coaxial speaker high sensitivity

Product Description

Features:

  • 10“ Coaxial speaker with big horn for high sensitivity design
  • 350Wrms power handling, 700W max power
  • 55hz- 20kHz frequency response
  • 97dB sensitivity
  • Single ferrite magnet assembly
  • Inside/Outside copper voice coil
Specification
Nominal diameter
260/10
mm/inch
Nominal impedance
8
ohm
Min impedance LF
5.2
ohm
Min impedance HF
6
ohm
Frequency response
55-20k
Hz
RMS Power
350
Magnet material
 Ferrite
Specification LF
Sensitivity (1w/1m)
 97
dB
Nominal power handling
350
Watts
Continuous power handling
700
Watts
Voice coil diameter
75/3
mm/ inch
Winding material
Copper
Cone material
Paper
Surround material
Cloth
Specification HF
Sensitivity (1w/1m)
110
dB
Nominal power handling
100
Watts
Continuous power handling
200
Watts
Voice coil diameter
75/3
mm/inch
Diaphragm
Titanium
T/S Parameter
Fs
 64
Hz
Re
 5.2
Qes
 0.33
Qts
 0.30
Qms
 5.35
Vas
 37.9
L
Rms
 2.28
kg/s
Cms
 0.21
mm/N
Mms
 32.5
gr
BL
 13.94
N/A
Mounting information
Overall diameter
 261/10.3
mm/inch
Bolt Circle diameter
 245/9.6
mm/inch
Baffle Cutout diameter
 234/9.2
mm/inch
Total Depth
 125/4.9
mm/inch
Shipping information
Net weight
 8.5
KG
Shipping weight
 9.0
KG
Shipping box
 280x280x130
mm
