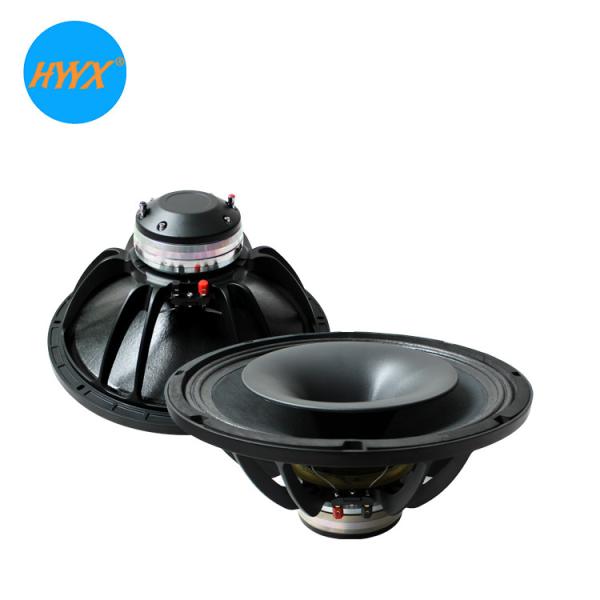

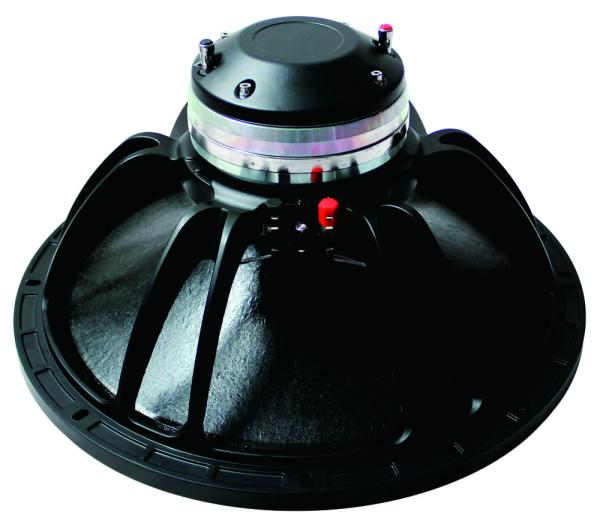

20khz 15 Inch 120mm Single Neodymium Magnet Speaker
20khz 15 Inch 120mm Single Neodymium Magnet Speaker
20khz 15 Inch 120mm Single Neodymium Magnet Speaker
20khz 15 Inch 120mm Single Neodymium Magnet Speaker
20khz 15 Inch 120mm Single Neodymium Magnet Speaker
20khz 15 Inch 120mm Single Neodymium Magnet Speaker
20khz 15 Inch 120mm Single Neodymium Magnet Speaker
20khz 15 Inch 120mm Single Neodymium Magnet Speaker
Specifications
Place of Origin :
Guangdong, China
Brand Name :
OEM
Model Number :
HYW-1575-026
Supply Ability :
50000 Piece/Pieces per Month
Packaging Details :
1. Inside + outside strong double boxes 2. Customized
MOQ :
2 Piece/Pieces
Price :
$100.00 - $150.00 / Piece
Type :
Coaxial speaker
Nominal diameter :
15 inch
Frequency response :
41hz-20khz
Program power :
1400W
RMS Power handling :
450W
Sensitivity :
98dB
LF magnet :
Neodymium 120mm
LF Voice coil diameter :
75mm
HF Voice coil diameter :
75mm
Impedance :
8 ohm
Port :
Huangpu port, Guangzhou
Description

15 inch Coaxial speaker neo speaker

Product Description

Features:

  • 15“ Coaxial speaker with neodymium magnet copy speakers
  • 450Wrms power handling , 900W max power
  • 41hz- 20kHz frequency response
  • 98dB sensitivity
  • Single Neodymium magnet assembly
  • Inside/Outside copper voice coil
Specification
Nominal diameter
380/15
mm/inch
Nominal impedance
8
ohm
Min impedance LF
5.2
ohm
Min impedance HF
6
ohm
Frequency response
40-20k
Hz
RMS Power
450
Magnet material
 Neodymium
Specification LF
Sensitivity (1w/1m)
98
dB
Nominal power handling
450
Watts
Continuous power handling
900
Watts
Voice coil diameter
75/3
mm/ inch
Winding material
Copper
Cone material
Paper
Surround material
Cloth
Specification HF
Sensitivity (1w/1m)
112
dB
Nominal power handling
100
Watts
Continuous power handling
200
Watts
Voice coil diameter
75/3
mm/inch
Diaphragm
Titanium
T/S Parameter
Fs
 39.9
Hz
Re
 5.2
Qes
 0.59
Qts
 0.53
Qms
 6.02
Vas
 163.7
L
Rms
 4.6
kg/s
Cms
 0.15
mm/N
Mms
 109.4
gr
BI
 18.3
N/A
Rp
 61.4
Lp
 39.6
mH
Cp
 803
uF
Le
 0.8
mH
Xmax(one-way)
 12
mm

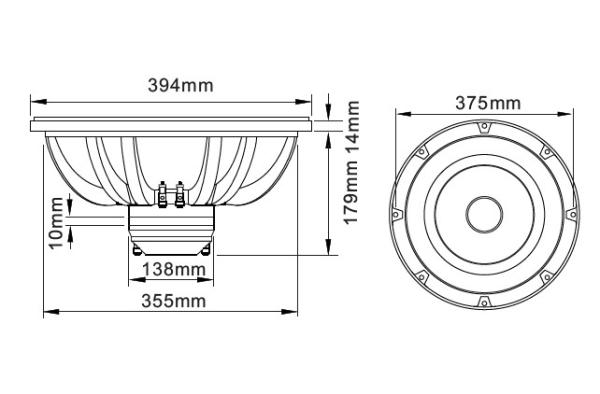

Mounting information
Overall diameter
 394/15.5
mm/inch
Bolt Circle diameter
 375/14.76
mm/inch
Baffle Cutout diameter
 355/14
mm/inch
Total Depth
 193/7.6
mm/inch
Flange thickness
 14/0.55
mm/inch
Shipping information
Net weight
 6
KG
Shipping weight
 7
KG
Shipping box
 420x420x220
mm
