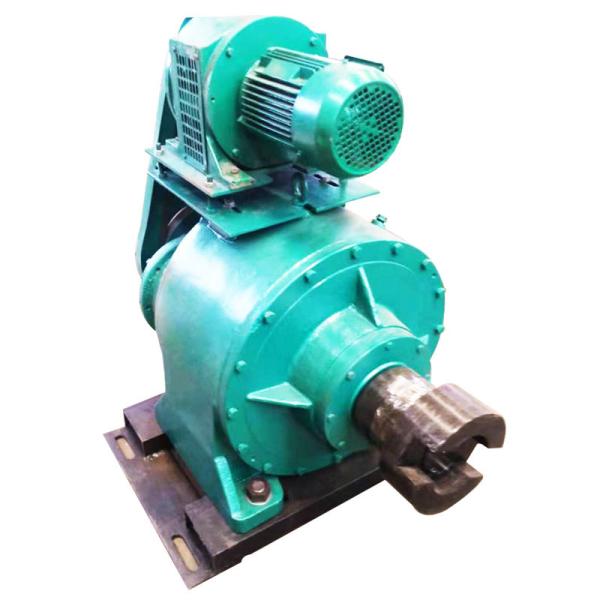

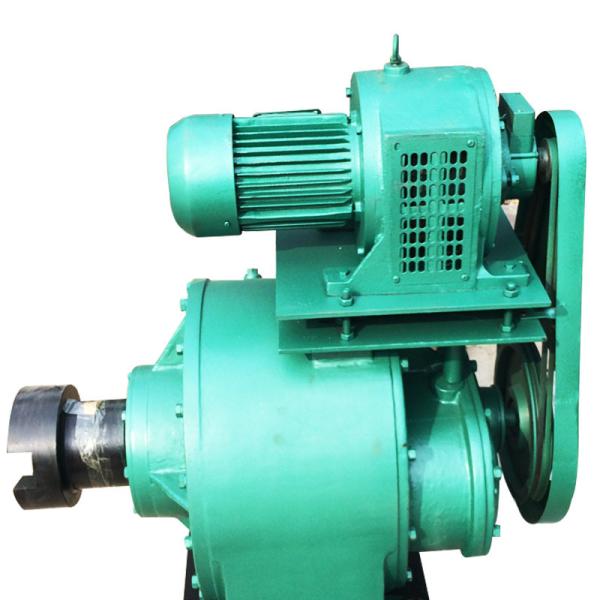

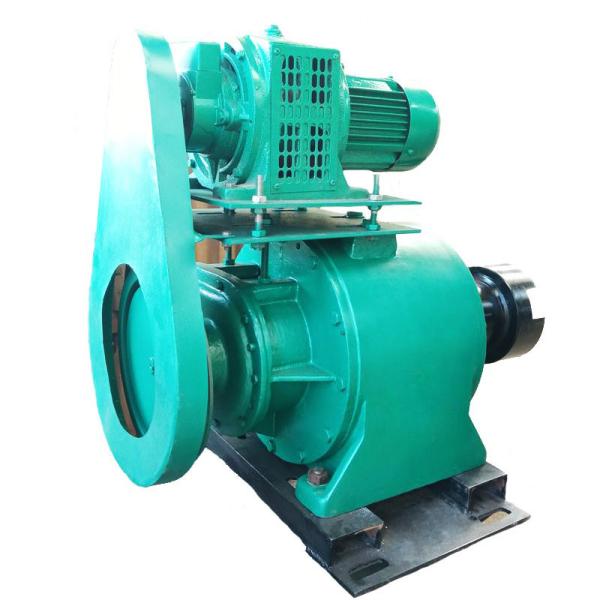

Spur Boiler Grate Speed Reducer / Boiler Control Gearbox GL-20P GL-30P GL-40P GL-50P
Spur Boiler Grate Speed Reducer / Boiler Control Gearbox GL-20P GL-30P GL-40P GL-50P
Spur Boiler Grate Speed Reducer / Boiler Control Gearbox GL-20P GL-30P GL-40P GL-50P
Spur Boiler Grate Speed Reducer / Boiler Control Gearbox GL-20P GL-30P GL-40P GL-50P
Spur Boiler Grate Speed Reducer / Boiler Control Gearbox GL-20P GL-30P GL-40P GL-50P
Spur Boiler Grate Speed Reducer / Boiler Control Gearbox GL-20P GL-30P GL-40P GL-50P
Spur Boiler Grate Speed Reducer / Boiler Control Gearbox GL-20P GL-30P GL-40P GL-50P
Spur Boiler Grate Speed Reducer / Boiler Control Gearbox GL-20P GL-30P GL-40P GL-50P
Spur Boiler Grate Speed Reducer / Boiler Control Gearbox GL-20P GL-30P GL-40P GL-50P
Spur Boiler Grate Speed Reducer / Boiler Control Gearbox GL-20P GL-30P GL-40P GL-50P
Spur Boiler Grate Speed Reducer / Boiler Control Gearbox GL-20P GL-30P GL-40P GL-50P
Spur Boiler Grate Speed Reducer / Boiler Control Gearbox GL-20P GL-30P GL-40P GL-50P
Specifications
Brand Name :
FANBAO
Model Number :
GL-5P
Certification :
CE
Place of Origin :
china
MOQ :
1
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
150sets per month
Delivery Time :
5-8 work days
Packaging Details :
standard export wooden case
Gearing Arrangement :
Spur
Output Torque :
5000-130000
Input Speed :
1500
Output Speed :
0.01838-0.23rpm
Applicable Industries :
Retail, boiler
Description
GL Series Boiler Grate Speed Reducer / Boiler Control Gearbox
Product Specifications
Model Range GL-20P, GL-30P, GL-40P, GL-50P
Gearing Arrangement Spur
Output Torque 5000-130000 Nm
Input Speed 1500 rpm
Output Speed 0.01838-0.23 rpm
Applicable Industries Retail, Boiler Systems
Product Description

The GL-P series boiler grate speed reducer/boiler transmission gearbox features a 3K structure involute gear and planetary transmission system. Engineered with a floating equalizing mechanism and power splitting capability, this industrial gearbox delivers exceptional performance for boiler applications.

Key Features
  • Integrated electromagnetic speed regulating motor and controller for smooth stepless speed regulation
  • Wide speed regulation range for versatile application
  • Safety clutch overload protection mechanism for reliable operation
  • Optimized design with advanced structure for compact size and high efficiency
  • Long service life with low noise output and easy maintenance requirements
  • Available in multiple models including GL-5P, GL-10P, GL-16P, GL-20P, GL-30P, GL-40P, and GL-100P
Installation Options
  • Crosshead coupling configuration
  • Electromagnetic speed regulating motor integration
  • Base-mounted installation
  • Belt reducer main unit compatibility
  • Customizable installation dimensions based on user requirements
Motor Specifications

Factory equipped with premium motors from leading manufacturers including Siemens and ABB.

Spur Boiler Grate Speed Reducer / Boiler Control Gearbox GL-20P GL-30P GL-40P GL-50P Spur Boiler Grate Speed Reducer / Boiler Control Gearbox GL-20P GL-30P GL-40P GL-50P Spur Boiler Grate Speed Reducer / Boiler Control Gearbox GL-20P GL-30P GL-40P GL-50P Spur Boiler Grate Speed Reducer / Boiler Control Gearbox GL-20P GL-30P GL-40P GL-50P Spur Boiler Grate Speed Reducer / Boiler Control Gearbox GL-20P GL-30P GL-40P GL-50P Spur Boiler Grate Speed Reducer / Boiler Control Gearbox GL-20P GL-30P GL-40P GL-50P Spur Boiler Grate Speed Reducer / Boiler Control Gearbox GL-20P GL-30P GL-40P GL-50P
Operating Procedures
  1. Before startup, ensure the controller switch (K) is in the "off" position and the master potentiometer is set to zero.
  2. Close the contactor of the grate motor first, then close the controller switch (K) after burning.
  3. Gradually adjust the master potentiometer to achieve the required speed.
  4. For shutdown: First return the master potentiometer to zero, then disconnect the controller switch (K).
  5. Wait 2-3 minutes before disconnecting the grate motor contactor.
Spur Boiler Grate Speed Reducer / Boiler Control Gearbox GL-20P GL-30P GL-40P GL-50P Spur Boiler Grate Speed Reducer / Boiler Control Gearbox GL-20P GL-30P GL-40P GL-50P Spur Boiler Grate Speed Reducer / Boiler Control Gearbox GL-20P GL-30P GL-40P GL-50P Spur Boiler Grate Speed Reducer / Boiler Control Gearbox GL-20P GL-30P GL-40P GL-50P
