Specifications
Brand Name :
FANBAO
Certification :
CE
Place of Origin :
china
MOQ :
1
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
150sets per month
Delivery Time :
5-8 work days
Packaging Details :
standard export wooden case
Gearing Arrangement :
Planetary motor
Output Torque :
2.6-1195N.M
Input Speed :
300-1800Rpm
Output Speed :
14-280rpm
Weight (KG) :
30kg
Product name :
Cycloidal gear reducer Vertical Cyclo Drive Gear box BLD4 Speed Reducer
Ratio :
9-2800
Material :
Steel or cast iron
Port :
Shanghai, Ningbo
Description
High Speed Compact Cycloidal Planetary Gear Reducer Vertical BLD4
Product Specifications
Gearing Arrangement Planetary motor
Output Torque 2.6-1195N.M
Input Speed 300-1800Rpm
Output Speed 14-280rpm
Weight 30kg
Ratio 9-2800
Material Steel or cast iron
Port Shanghai, Ningbo
Product Description

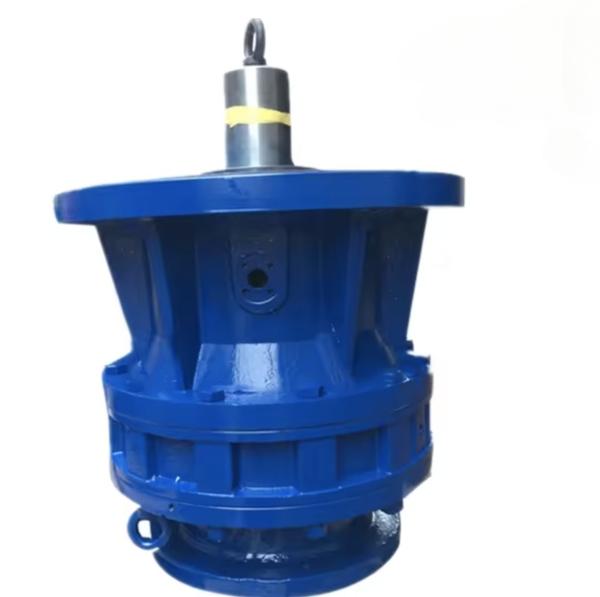

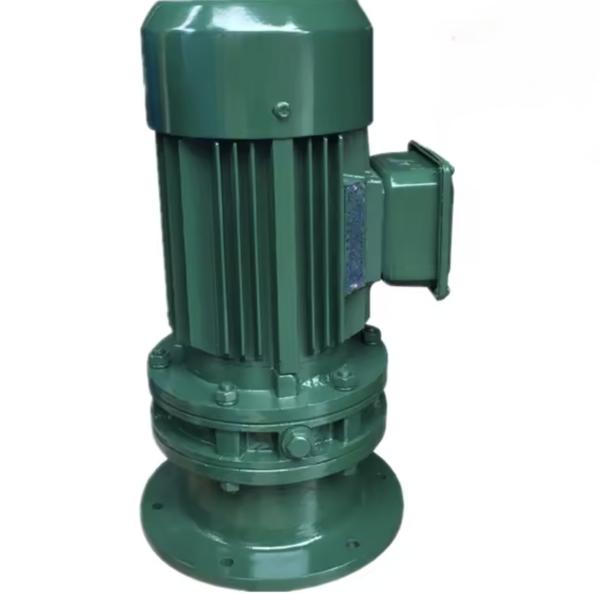

The Cycloidal Pin-wheel Reducer (Model BLD4) is a high-performance vertical speed reducer designed for industrial applications requiring compact size and high efficiency.

  • High speed ratio and efficiency: Single stage transmission achieves 1:87 speed-down ratio with over 90% efficiency. Multi-speed drives offer even greater ratios.
  • Compact design: Epicyclic transmission principle allows input and output shafts to share the same axis center for space-saving installation.
  • Smooth operation: Multiple meshed teeth in cycloidal pinwheel create large overlapping coefficient for stable, low-vibration operation with minimal noise.
Available Models
X Series:
Single: 1,2,3,4,5,6,7,8,9,10,11 Double: 42,53,63,74,84,85,95,106,116,117 Triple: 642,742,842,852,853,952,953,1063,1164,1174
B Series:
Single: 0,1,2,3,4,5,6,7,8 Double: 20,31,41,52,53,63,74,84,85 Triple: (See product documentation for complete listing)
