Custom Homogenizer Mixing Tanks Stainless Steel Jacketed With Agitator
Custom Homogenizer Mixing Tanks Stainless Steel Jacketed With Agitator
Custom Homogenizer Mixing Tanks Stainless Steel Jacketed With Agitator
Custom Homogenizer Mixing Tanks Stainless Steel Jacketed With Agitator
Custom Homogenizer Mixing Tanks Stainless Steel Jacketed With Agitator
Custom Homogenizer Mixing Tanks Stainless Steel Jacketed With Agitator
Custom Homogenizer Mixing Tanks Stainless Steel Jacketed With Agitator
Custom Homogenizer Mixing Tanks Stainless Steel Jacketed With Agitator
Custom Homogenizer Mixing Tanks Stainless Steel Jacketed With Agitator
Custom Homogenizer Mixing Tanks Stainless Steel Jacketed With Agitator
Specifications
Brand Name :
FANBAO
Certification :
CE
Place of Origin :
china
MOQ :
1
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
150sets per month
Delivery Time :
5-8 work days
Packaging Details :
standard export wooden case
mixing tank size :
100L to 20000L
mixer power :
1.5kw-11kw. or customizable
Homogenizer Speed :
2940RPM
Material :
Stainless Steel
Surface Finish :
Mirror Polish
Supporting Legs :
Adjustable
Motor Power :
0.55-55KW
Control System :
PLC
Heating Method :
Electric Heating
Application :
Food, Beverage, Pharmaceutical, Chemical, etc.
Tank Shape :
Cylindrical
Mixing Mode :
Continuous
Description
Homogenizer Mixing Tanks Stainless Steel Jacketed With Agitator Custom
Product Specifications
Mixing Tank Size 100L to 20000L
Mixer Power 1.5kw-11kw or customizable
Homogenizer Speed 2940RPM
Material Stainless Steel
Surface Finish Mirror Polish
Supporting Legs Adjustable
Motor Power 0.55-55KW
Control System PLC
Heating Method Electric Heating
Application Food, Beverage, Pharmaceutical, Chemical, etc.
Tank Shape Cylindrical
Mixing Mode Continuous
Product Description

Our high-speed emulsification tank represents advanced blending technology for dairy products, beverages, fruit juices, and food processing. The system integrates multiple functions including blending, emulsifying, homogenizing, dissolving, and particle reduction in one efficient unit.

Operating Principle

The mixer's high-speed rotor-stator mechanism creates powerful suction, drawing material from the tank bottom to the processing head. The product undergoes mechanical shearing at 20 m/s as it passes through the stator openings, followed by hydraulic shearing upon exit. This continuous circulation ensures thorough, uniform homogenization while minimizing product aeration.

Custom Homogenizer Mixing Tanks Stainless Steel Jacketed With Agitator Custom Homogenizer Mixing Tanks Stainless Steel Jacketed With Agitator
Customization Options
Feature Options
Profile/Type Single-layer tank, Double-layer tank, Three-layer tank
Material SS304L, SS316L
Volume 100L-20000L
Tank Type Vertical, Horizontal, Mobile
Structure Single wall, Jacketed, Insulated
Heating Method Electric, Steam
Surface Finish Mirror polished (Ra<0.4um) or 2B Satin

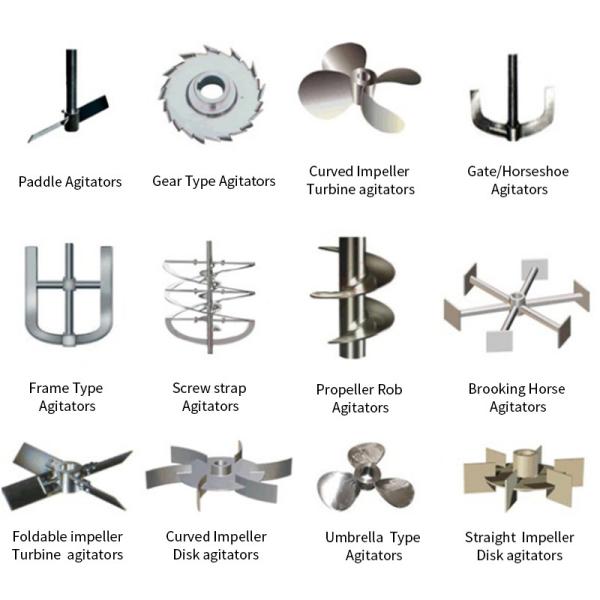

Stirrer Type Impeller, Anchor, Turbine, High shear, Magnetic mixer
Power 0.55-55KW
Standard & Optional Features
  • Quick open or pressure manhole
  • CIP cleaning systems
  • Sterile respirator
  • Adjustable legs
  • Sanitary valves for inlet/outlet
  • Custom thermometer, paddle blender, and level control systems
Custom Homogenizer Mixing Tanks Stainless Steel Jacketed With Agitator Custom Homogenizer Mixing Tanks Stainless Steel Jacketed With Agitator Custom Homogenizer Mixing Tanks Stainless Steel Jacketed With Agitator
Technical Specifications by Model
Model Heater (KW) Mixer (KW) Mixer Speed (RPM) Homogenizer (KW) Homogenizer Speed (RPM)
DFM-200L 6 1.5 0-63 4 2890
DFM-300L 9 2.2 0-63 4 2890
DFM-500L 18 3-4 0-63 5.5 2900
DFM-1000L 27KW/steam 4-5.5 0-63 7.5 2900
DFM-2000L 27KW/steam 5.5 0-63 11 2930
DFM-3000L 36KW/steam 7.5 0-63 15 2930
DFM-5000L 48KW/steam 11 0-63 22 2940
Customizable All specifications can be customized to customer requirements
Applications: Ideal for food processing, beverage production, pharmaceutical manufacturing, biotechnology, honey/chocolate processing, alcohol production, and chemical industries.
