Liquid Blending Ss Mixing Tank Electric Heating Jacketed Mixing Tank 220V - 480V
Liquid Blending Ss Mixing Tank Electric Heating Jacketed Mixing Tank 220V - 480V
Liquid Blending Ss Mixing Tank Electric Heating Jacketed Mixing Tank 220V - 480V
Liquid Blending Ss Mixing Tank Electric Heating Jacketed Mixing Tank 220V - 480V
Liquid Blending Ss Mixing Tank Electric Heating Jacketed Mixing Tank 220V - 480V
Liquid Blending Ss Mixing Tank Electric Heating Jacketed Mixing Tank 220V - 480V
Specifications
Brand Name :
FANBAO
Certification :
CE
Place of Origin :
china
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T
Delivery Time :
5-8 work days
Packaging Details :
standard export wooden case
Mixer Type :
Agitator
Weight (KG) :
500KG
Power (kW) :
5.5KW
Warranty :
1 year
Range of Spindle Speed(r.p.m) :
1 - 400 r.p.m
Material :
SUS304, SUS304L, SUS316, SUS316L
Voltage :
220V---480V
Dimension(L*W*H) :
Dimension(L*W*H)
Homogenizer :
0-3600rpm
Description

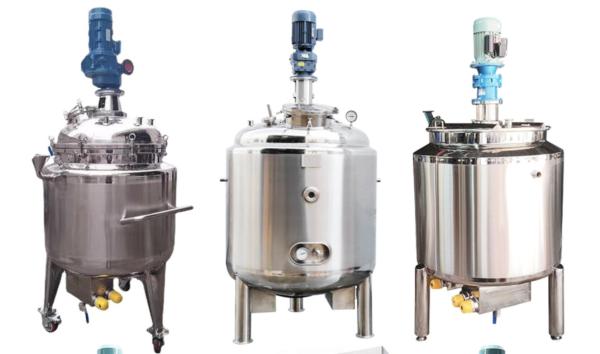

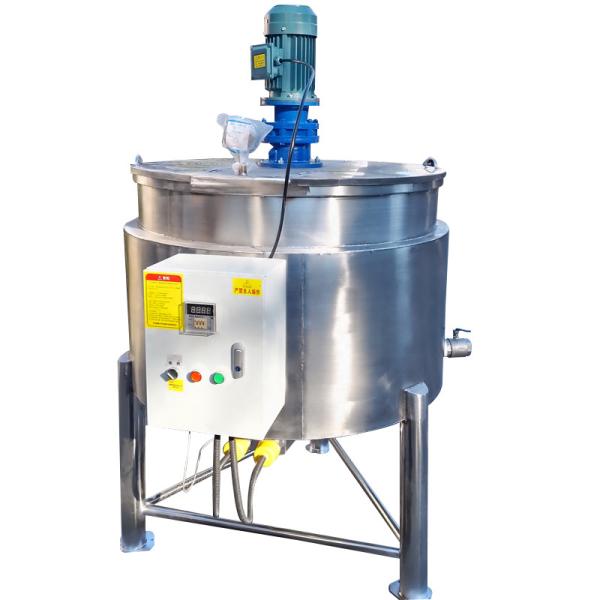

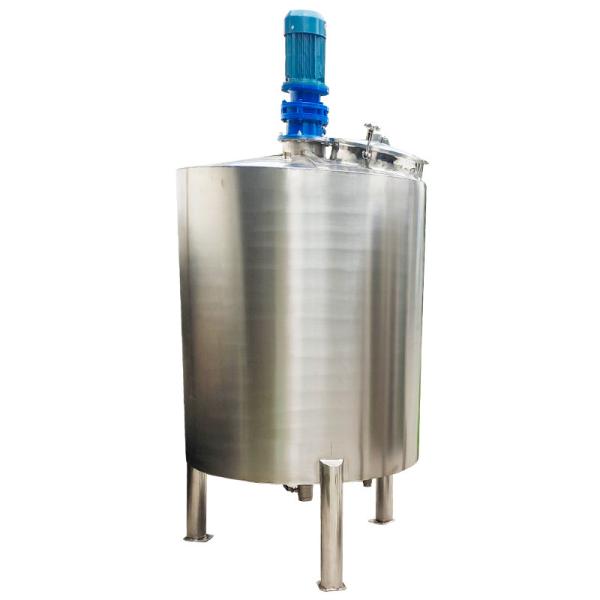

Stainless Steel Liquid Blending Jacketed Mixing Tank with Electric Heating
Product Specifications
Attribute Value
Mixer Type Agitator
Weight 500KG
Power 5.5KW
Warranty 1 year
Range of Spindle Speed 1 - 400 r.p.m
Material Options SUS304, SUS304L, SUS316, SUS316L
Voltage 220V - 480V
Homogenizer 0-3600rpm
Product Description
Electric heating stirring tanks (also known as water phase tanks or electric heating reactors) are widely used in coatings, pharmaceuticals, construction materials, chemicals, pigments, resins, food processing, and scientific research industries.
Key Features:
  • Available in carbon steel or stainless steel construction
  • Customizable heating and cooling configurations
  • Heating options include jacket electric heating and coil heating
  • Optimized design for large heating area and high thermal efficiency
  • Precisely controlled heating temperature with uniform distribution
  • Reduced material boiling time for improved efficiency
Standard Models
Model Heater (kW) Mixer (kW) Mixer Speed (RPM) Homogenizer (kW)
FBM-200L 6 1.5 0-63 4
FBM-300L 9 2.2 0-63 4
FBM-500L 18 3-4 0-63 5.5
FBM-1000L 27/steam 4-5.5 0-63 7.5
FBM-2000L 27/steam 5.5 0-63 11
FBM-3000L 36/steam 7.5 0-63 15
FBM-5000L 48/steam 11 0-63 22
Customizable Available with custom specifications
Vertical Mixer Features
  • Ideal for raw material mixing applications
  • Inner plate lined with polypropylene or stainless steel to prevent material sticking
  • Wear-resistant construction for extended service life
  • Cycloidal pinwheel reducer for compact, efficient operation
  • Uniform mixing with convenient discharge and transportation
