0.37~5KW Cylindrical Poly Water Chemical Mixing Tank Emulsifying Homogenizer 500L
0.37~5KW Cylindrical Poly Water Chemical Mixing Tank Emulsifying Homogenizer 500L
0.37~5KW Cylindrical Poly Water Chemical Mixing Tank Emulsifying Homogenizer 500L
0.37~5KW Cylindrical Poly Water Chemical Mixing Tank Emulsifying Homogenizer 500L
0.37~5KW Cylindrical Poly Water Chemical Mixing Tank Emulsifying Homogenizer 500L
0.37~5KW Cylindrical Poly Water Chemical Mixing Tank Emulsifying Homogenizer 500L
Specifications
Brand Name :
FANBAO
Certification :
CE
Place of Origin :
china
MOQ :
1
Price :
negotation
Payment Terms :
T/T
Supply Ability :
100sets per month
Delivery Time :
5-8 work days
Packaging Details :
standard export wooden case
material :
PE mixing tank
capacity :
100L-5000L
Agitator power :
0.37~5KW
Agitator type :
Mixer, emulsifier, disperser, etc
Description
Cylindrical Poly Water Chemical Mixing Tank Emulsifying Homogenizer 500L
Product Specifications
Attribute Value
Material PE mixing tank
Capacity 100L-5000L
Agitator power 0.37~5KW
Agitator type Mixer, emulsifier, disperser, etc
Product Description

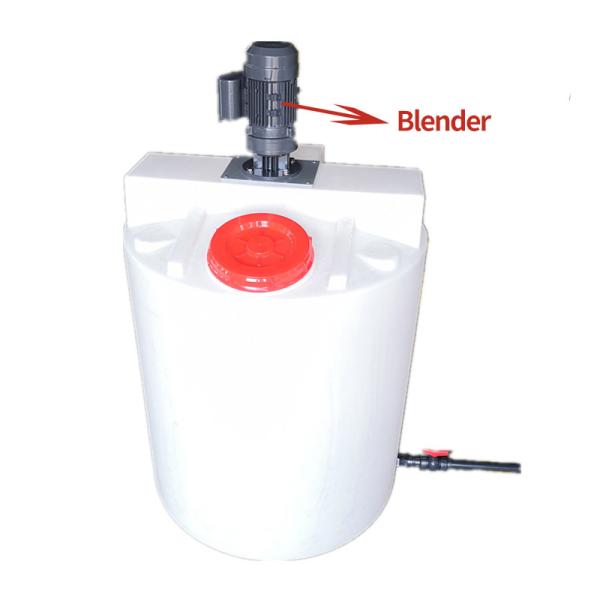

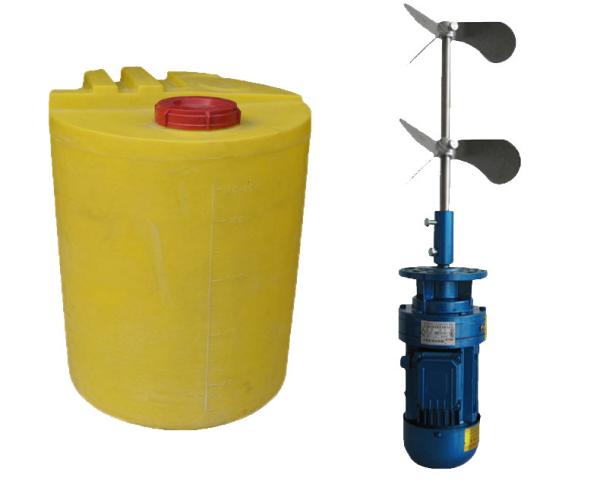

The 500L Cylindrical Water Treatment Plant Poly Water Chemical Dosing Mixing Tank is designed for efficient blending of raw materials in industrial applications. Featuring a durable polypropylene or stainless steel inner lining, this mixing tank offers excellent resistance to material adhesion and wear.

  • Mixing Capacity: 100 to 5000 liters with motor power from 0.37 to 5 kW
  • Operating Conditions: Suitable for normal barometric pressure at temperatures up to 70°C
  • Construction Materials: Carbon steel, SS304, or SS316L with optional epoxy resin or PTFE spray coating lining
  • Special Features: Available with special motors, epoxy resin lining, PTFE spray coating, and paddle vanes
  • Operational Note: Not recommended for shear-sensitive materials or operation during emptying process

This versatile mixer is widely used in organic fertilizer equipment, chemical machinery, industrial setups, and sewage mixing lines. We offer customizable parameters to meet specific requirements - contact our technical team for expert guidance.

Technical Specifications
Flat Bottom Mixing Bucket
Product Number Capacity Diameter (mm) Vertical Height (mm) Total Height (mm) Caliber (mm) Wall Thickness (mm) Suitable Mixer Power
Flat -100L 100L 460 730 780 150 4 0.37KW-380V/220V
Cone Bottom Mixing Bucket
Product Number Capacity Diameter (mm) Vertical Height (mm) Total Height (mm) Caliber (mm) Wall Thickness (mm) Suitable Mixer Power
cone-100L 100L 460 730 780 150 4 0.37KW-380V/220V
Product Images
0.37~5KW Cylindrical Poly Water Chemical Mixing Tank Emulsifying Homogenizer 500L 0.37~5KW Cylindrical Poly Water Chemical Mixing Tank Emulsifying Homogenizer 500L 0.37~5KW Cylindrical Poly Water Chemical Mixing Tank Emulsifying Homogenizer 500L
