Specifications
Brand Name :
FANBAO
Certification :
CE
Place of Origin :
china
MOQ :
1
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
150sets per month
Delivery Time :
5-8 work days
Packaging Details :
standard export wooden case
Core Components :
Motor, Gear, Gearbox, Other, Engine
Range of Spindle Speed(r.p.m) :
1 - 1400 r.p.m
Mixer Type :
planetary Mixer
Max. Loading Volume (L) :
200L
Weight (KG) :
40kg
Application :
Liquid Processing, Chemicals Processing, Plastics Processing, Food Processing
After-sales Service Provided :
After-sales Service Provided Online support, Video technical support
Product name :
Plastic Acid Alkaline Resistant Chemical 0.75kw Agitator 200 L Mixing Tank
Description
Plastic Acid Alkaline Resistant Chemical Mixing Tank With Agitator 0.75kw 200L
Product Overview
The PE mixing tank comprises a rotationally molded container and liquid mixer system, featuring a perforated platform at the top for mixer installation. When combined with a metering pump, it forms a complete dosing and mixing solution for pharmaceutical and liquid processing applications.
Key Features
  • Constructed from imported LLDPE raw materials using one-shot rotomolding technology
  • Corrosion-resistant, shock-resistant, and impact-resistant design
  • Hygienic construction suitable for food, pharmaceutical, and chemical applications
  • Customizable shaft and agitator configuration
  • Raised section for easy installation of chemical dosing agitator
  • Available with optional lid, PVC outlet, threaded interface, valve, and level gauge
  • Natural finish or black color options with volume graduations
Technical Specifications
Attribute Value
Core Components Motor, Gear, Gearbox, Engine
Range of Spindle Speed 1 - 1400 r.p.m
Mixer Type Planetary Mixer
Max. Loading Volume 200L
Weight 40kg
Applications Liquid Processing, Chemicals Processing, Plastics Processing, Food Processing
After-sales Service Online support, Video technical support
Model Specifications
Featured Model: Flat -200L with 0.55KW-380V/220V mixer power
Product number Capacity Diameter Vertical height Total height Caliber Wall thickness Suitable mixer power
Flat -100L 100L 460 730 780 150 4 0.37KW-380V/220V
Flat -200L 200L 560 860 910 150 4 0.55KW-380V/220V
Flat -300L 300L 710 800 940 200 5 0.55KW-380V/220V
Flat -500L 500L 840 910 1060 240 6 0.75KW-380V/220V
Flat -750L 750L 1040 900 1110 380 6 0.75KW-380V/220V
Flat -1000L 1000L 1040 1190 1360 380 6 1.1KW-380V/220V
Flat -1000Lshort 1000L 13000 830 1030 380 6 1.1KW-380V/220V
Flat-1200L 1200L 1220 1030 1200 380 7 1.1KW-380V/220V
Flat-1500L 1500L 1220 1280 1450 380 7 1.1KW-380V/220V
Flat-2000L 2000L 13000 1520 1700 380 7 1.5KW-380V/220V
Flat -2000Lshort 2000L 1550 1060 1250 500 7 1.5KW-380V/220V
Flat -3000L 3000L 1550 1600 1790 500 8 1.5KW-380V/220V
Flat -5000L 5000L 220V 1750 2080 2300 500 9 2.2KW-380V/220V
Industrial Applications
This acid and alkaline resistant mixing tank is widely used in water treatment, environmental protection, electronics, chemical processing, food production, and pharmaceutical industries.

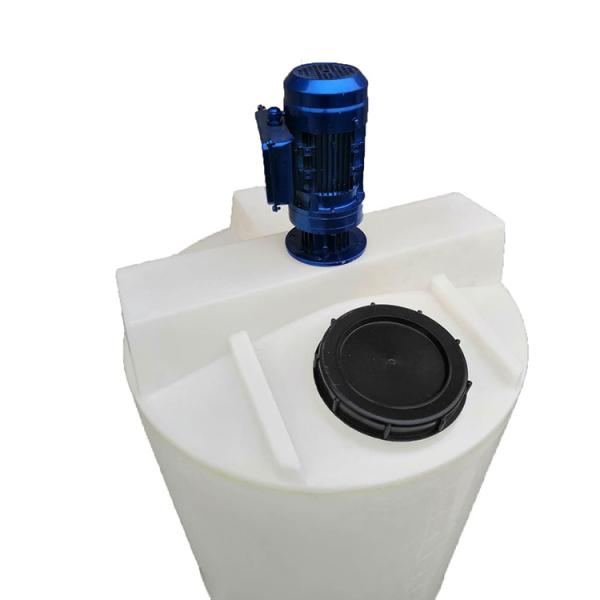

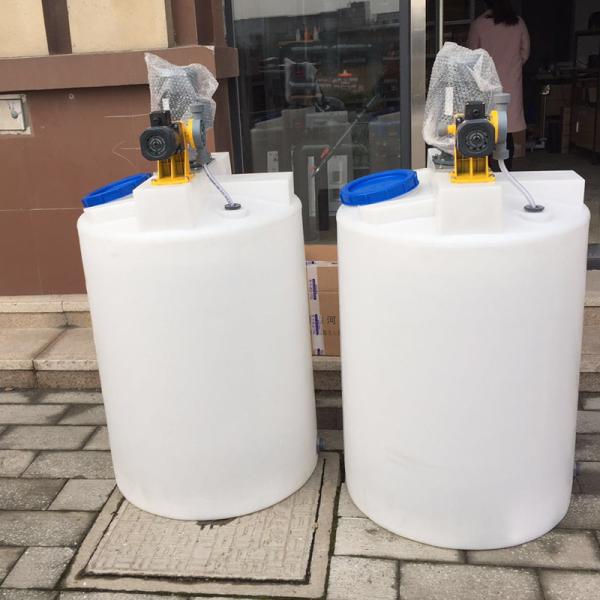

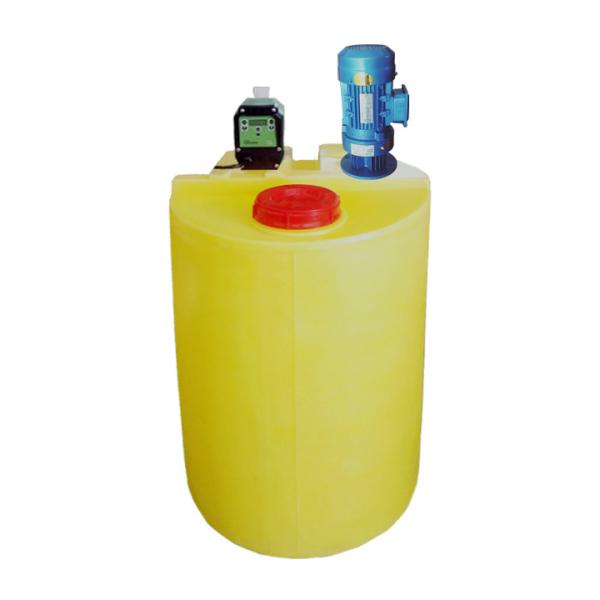

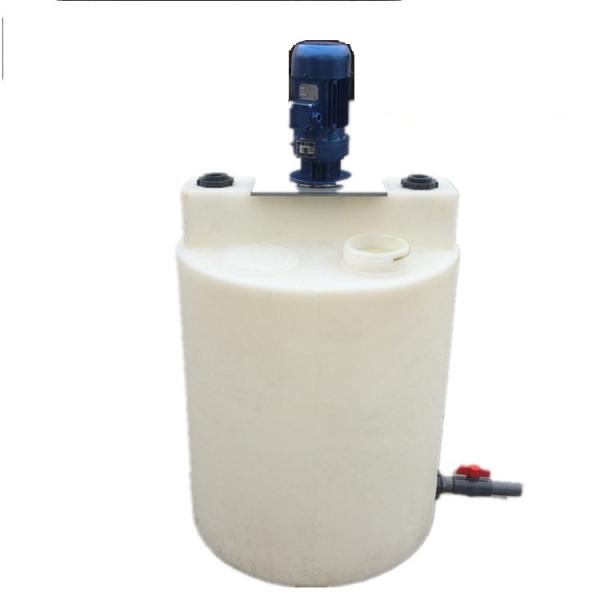

Product Images
Acid Alkaline Resistant Plastic Chemical Mixing Tank With Agitator 0.75kw 200L Acid Alkaline Resistant Plastic Chemical Mixing Tank With Agitator 0.75kw 200L Acid Alkaline Resistant Plastic Chemical Mixing Tank With Agitator 0.75kw 200L Acid Alkaline Resistant Plastic Chemical Mixing Tank With Agitator 0.75kw 200L Acid Alkaline Resistant Plastic Chemical Mixing Tank With Agitator 0.75kw 200L Acid Alkaline Resistant Plastic Chemical Mixing Tank With Agitator 0.75kw 200L
