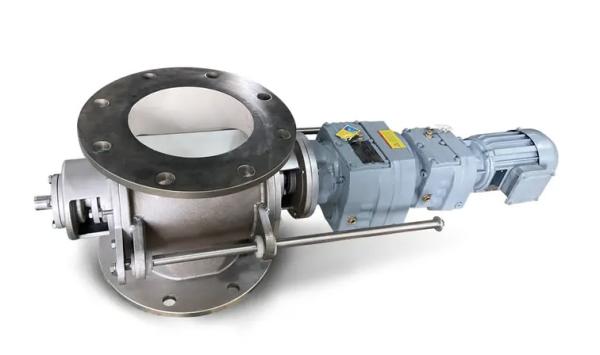

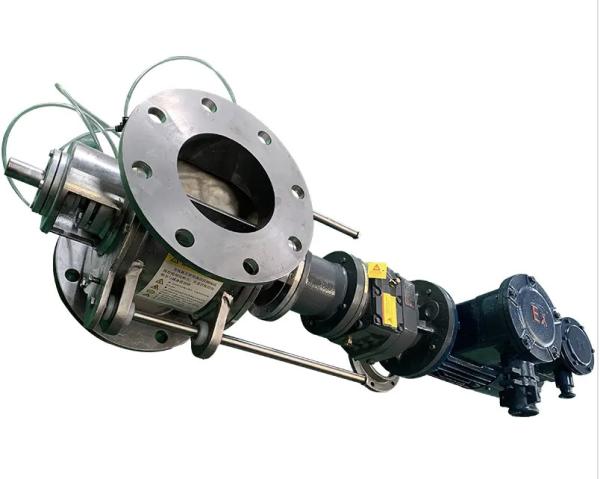

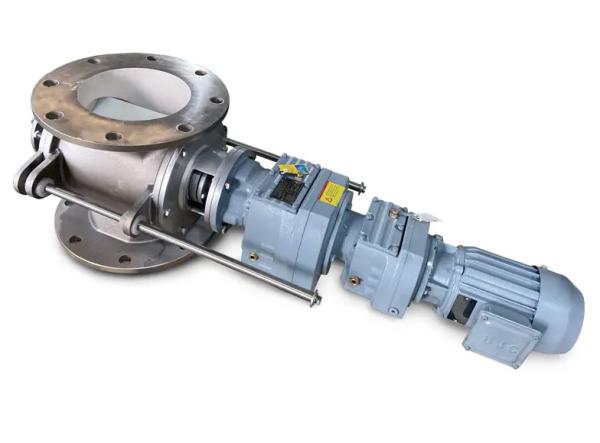

Chain Drive Hygienic Stainless Steel Rotary Airlock Valve 6 Inches For Dust Collector OEM
Chain Drive Hygienic Stainless Steel Rotary Airlock Valve 6 Inches For Dust Collector OEM
Chain Drive Hygienic Stainless Steel Rotary Airlock Valve 6 Inches For Dust Collector OEM
Chain Drive Hygienic Stainless Steel Rotary Airlock Valve 6 Inches For Dust Collector OEM
Chain Drive Hygienic Stainless Steel Rotary Airlock Valve 6 Inches For Dust Collector OEM
Chain Drive Hygienic Stainless Steel Rotary Airlock Valve 6 Inches For Dust Collector OEM
Chain Drive Hygienic Stainless Steel Rotary Airlock Valve 6 Inches For Dust Collector OEM
Chain Drive Hygienic Stainless Steel Rotary Airlock Valve 6 Inches For Dust Collector OEM
Chain Drive Hygienic Stainless Steel Rotary Airlock Valve 6 Inches For Dust Collector OEM
Chain Drive Hygienic Stainless Steel Rotary Airlock Valve 6 Inches For Dust Collector OEM
Specifications
Brand Name :
FANBAO
Place of Origin :
Shanghai
MOQ :
1
Price :
USD
Payment Terms :
T/T
Supply Ability :
30pcs/month
Delivery Time :
5-10 days
Packaging Details :
standard export wooden case
Power Source :
Electric Power
Work Temperature :
Original
Number Of Vanes :
8
Sample :
Yes
Structure :
Regulating
Work Pressure :
Original
Motor Power :
0.55-5 kw
Size :
6 inches
Motor Type :
Hardenend helical gear motor
Color :
Brown
Clearance :
0.08-0.12mm
Output :
1-200 tons/hr
Item :
heavy duty discharge
Motor Drive :
Chain Drive
Port Size :
Standard
Description
Hygienic Stainless Steel Rotary Airlock Valve For Dust Collector OEM
Product Specifications
Attribute Value
Power Source Electric Power
Work Temperature Original
Number Of Vanes 8
Sample Yes
Structure Regulating
Work Pressure Original
Motor Power 0.55-5 kw
Size 6 inches
Motor Type Hardened helical gear motor
Color Brown
Clearance 0.08-0.12mm
Output 1-200 tons/hr
Item Heavy duty discharge
Motor Drive Chain Drive
Port Size Standard
Product Overview

The easy-slide rotor support is an optional addition designed for all sizes of de-mountable convey and drop-through rotary valves used in hygienic and sanitary environments. This accessory provides a secure platform for the rotor and non-drive end-plate when removed from the valve bore, ensuring proper alignment for precise reassembly.

Chain Drive Hygienic Stainless Steel Rotary Airlock Valve 6 Inches For Dust Collector OEM
Key Features
  • Housing with material inlet at top and discharge port at bottom
  • End covers connected to rotating shaft via bearings
  • Limit ring attached to rotating shaft and blade end
  • Material baffle connected to limit ring exterior
  • Motor connected to reducer driving rotating shaft
  • Connecting flanges at feed port and discharge port
  • Air-tight structure between rotating shaft and end covers
  • Integrated oil-water separator in air circuit
  • Protruding frames on end covers with internal bearings
Chain Drive Hygienic Stainless Steel Rotary Airlock Valve 6 Inches For Dust Collector OEM
Design Advantages

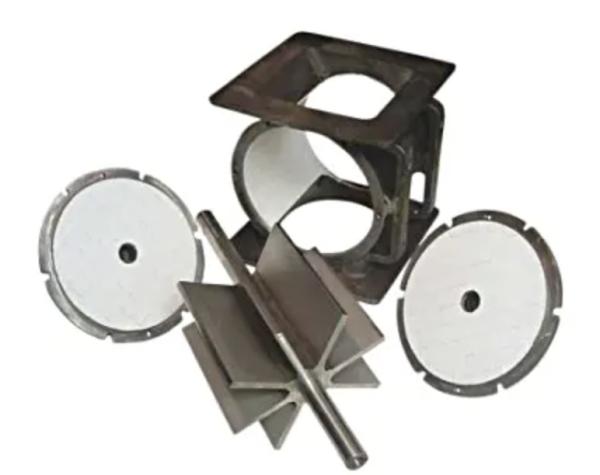

This pull rod quick-release cleaning type discharge valve features end covers connected to the shell via screws on both sides, with the impeller structure linked through bearings. During disassembly, one end cover can be completely removed, allowing for swift shell removal and easy cleaning of the impeller structure.

The innovative baffle plate structure prevents direct material contact with the shell's side walls, reducing debris entry into the connection gap between the rotating shaft and bearing. This design extends cleaning cycles, minimizes required maintenance, and significantly improves user convenience.

Chain Drive Hygienic Stainless Steel Rotary Airlock Valve 6 Inches For Dust Collector OEM
Working Principle

When in operation, material enters through the feed inlet connected to the upper feeding pipe. The material falls by gravity, filling gaps between the blades. As the rotating shaft turns, it drives the blades to rotate the material. When the opening between two adjacent blades faces downward, the material discharges by gravity through the outlet connected to the lower feeding pipe.

For cleaning, the end cover can be completely removed, allowing the housing to be pulled outward for easy disassembly and thorough cleaning.

Chain Drive Hygienic Stainless Steel Rotary Airlock Valve 6 Inches For Dust Collector OEM Chain Drive Hygienic Stainless Steel Rotary Airlock Valve 6 Inches For Dust Collector OEM
