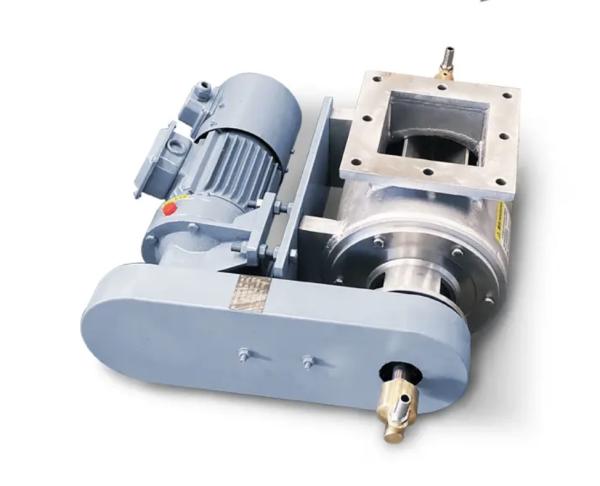

Square Outlet Stainless Steel Water Cooling Rotary Airlock Valve High Temperature
Square Outlet Stainless Steel Water Cooling Rotary Airlock Valve High Temperature
Square Outlet Stainless Steel Water Cooling Rotary Airlock Valve High Temperature
Square Outlet Stainless Steel Water Cooling Rotary Airlock Valve High Temperature
Square Outlet Stainless Steel Water Cooling Rotary Airlock Valve High Temperature
Square Outlet Stainless Steel Water Cooling Rotary Airlock Valve High Temperature
Specifications
MOQ :
1
Payment Terms :
T/T
Packaging Details :
standard export wooden case
Clearance :
0.25 inches
Business Type :
Manufacturer
Output Per Rotation :
0.005~0.11 m3 / rpm
Height :
220-900mm
Drive Type :
Chain
Work Temperature :
Original
Power :
1.1KW
Drive :
Chain
Transport Of Materials :
Flour
Inlet Type :
Round
Payment Term :
D/P, T/T, L/C
Bearing :
SKF & others
Media :
cement, coal dust, slag
Outlet Type :
Square
Mounting Type :
Flange
Brand Name :
FANBAO
Description
Stainless Steel Water Cooling Rotary Airlock Valve High Temperature
Product Specifications
Clearance 0.25 inches
Output Per Rotation 0.005~0.11 m3 / rpm
Height 220-900mm
Drive Type Chain
Power 1.1KW
Transport Of Materials Flour
Inlet Type Round
Bearing SKF & others
Media cement, coal dust, slag
Outlet Type Square
Mounting Type Flange
Product Description

This high-temperature rotary valve airlock features water cooling jackets for the casing, cover, and bearings, along with specialized high-temperature components including gland packing and bearings. Designed for cost-effective performance in standard applications with limited pressure differentials.

Ideal for dosing or discharging materials in pneumatic conveying systems or for installation beneath silos/hoppers handling abrasive or mildly cohesive products.

  • Pressure Range: 2 Bar system and differential pressure
  • Operating Temperature: -20°C to 300°C
  • Application Medium: Powder and Granular forms
  • Rotor Options: Adjustable blades, reduced capacity, scalloped, end disc
  • Surface Coatings: Nickel, chrome plating, and Tungsten coating
  • Additional Features: Drop-out box, air purge regulation station, vent opening

The equipment is specifically engineered for high-temperature environments with water-cooled components, insulation materials, and a speed reducer protector.

Square Outlet Stainless Steel Water Cooling Rotary Airlock Valve High Temperature
Technical Parameters
Type Volume/rotation Power (KW) Speed (R/min) Temperature (°C) Weight (Kg) Installation Dimensions
2type 2L/T 0.75 24 280 75 ΦA:240, ΦB:200, ΦC:150, H:850
4type 4L/T 0.75 24 280 105 ΦA:280, ΦB:240, ΦC:180, H:900
6type 6L/T 0.75 24 280 110 ΦA:300, ΦB:260, ΦC:200, H:930
8type 8L/T 0.75 24 280 125 ΦA:320, ΦB:280, ΦC:220, H:950
10type 10L/T 1.1 24 280 135 ΦA:340, ΦB:300, ΦC:240, H:1000
For detailed specifications and custom dimensions, please contact our technical team.
