Specifications
warranty :
1 Year
customized support :
OEM, ODM, OBM, Software reengineering
Place of Origin :
Guangdong
Brand Name :
3nh
power :
5w
Accuracy :
0.01
Voltage :
220V
Type :
Testing machine
Application :
auto testing
Protection Class :
ip55
Product name :
Gloss meter
Warranty :
12 Months
Power supply :
220V 50Hz
Model :
NHG268
Certificate :
CE ISO
Measuring range :
0-2000GU
Standard :
ISO 2813, GB/T 9754, ASTM D 523, ASTM D 2457
Material :
ABS Plastic
MOQ :
1PCS
Description
Product Description

3nh Gloss Meter Nhg268 3nh Glossmeter 2000gu with 20/60/85 degree

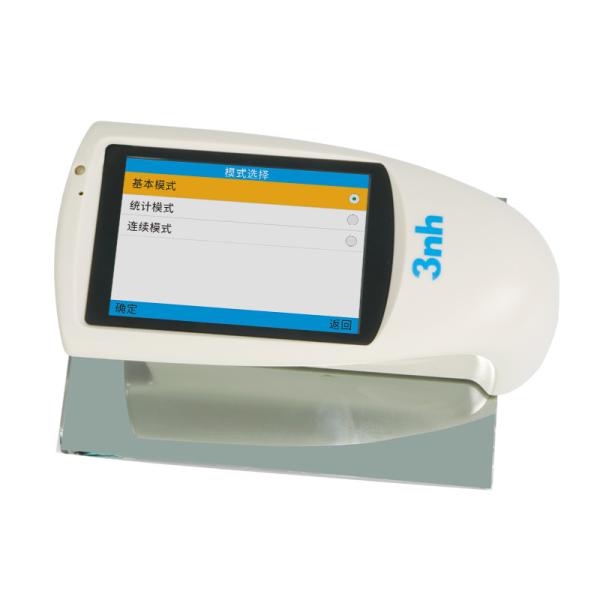

NHG268 tri angle touch screen gloss meter features with 20, 60 and 85° angle, manufactured according to ISO2813 and GB/T 9754. It is also compatible with the standards of ASTM D523, ASTM D2457. NHG268 touchscreen glossmeter conforms to JJG696 first class gloss meter working requirement, corresponding with CIE 1931(2°) under CIE C light source.

NHG268 touch screen gloss meter 2000gu can test material with high gloss (0-2000Gu), and universally apply to paint, ink, stoving varnish, coating, wood products; marble, granite, vitrified polished tile, pottery brick and porcelain; plastic, paper; hardware industries, etc. for gloss measurement and gloss data transmission.

3nh NHG268 Gloss Meter 1-Year Warranty 220V Glossmeter

Features:

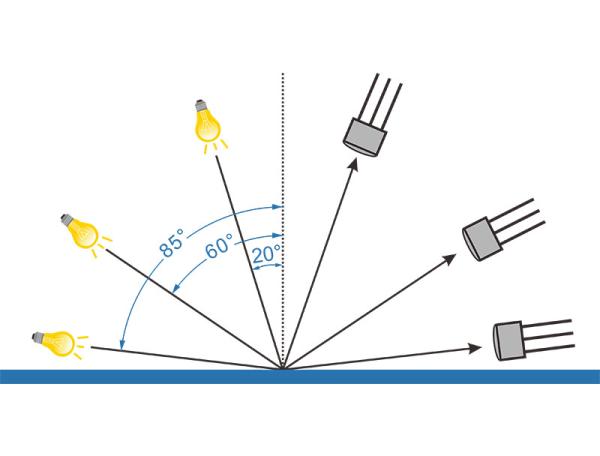

1. 20, 60 and 85° in one: from high to low gloss - have the specified angle on hand

2. One button for all angles measurement at the same location

3. Display 5 sets of measurement data, good for comparison

4. Measuring mode: basic measurement, statistical measurement, continuous measurement, QC measurement (only for GQC6 software).

5. Continuous mode to check uniformity over large areas

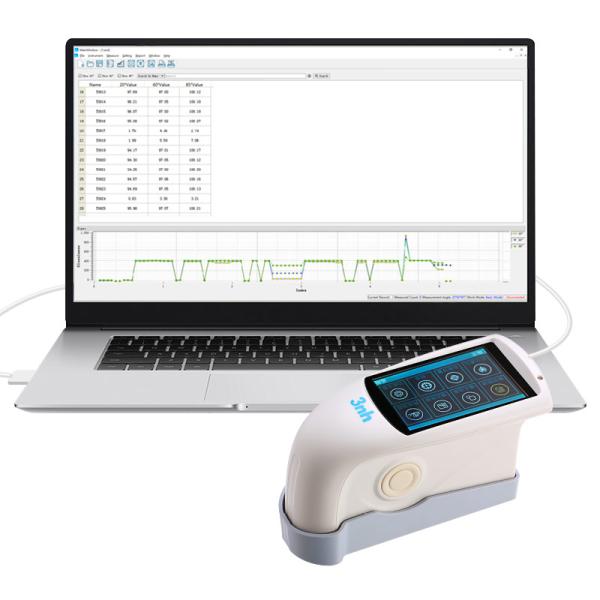

6. Connect to PC, more extend functions

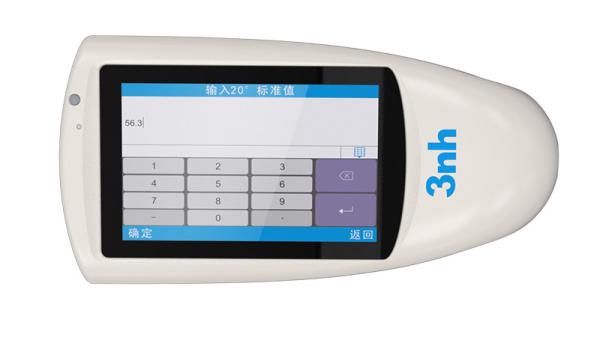

7. Input gloss value manually

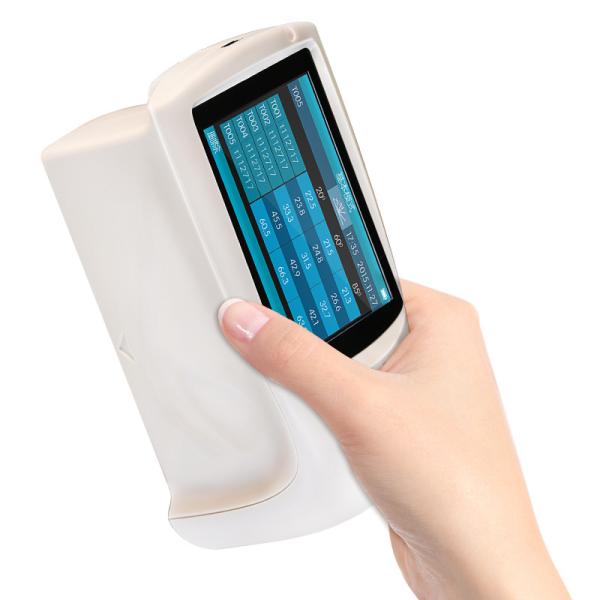

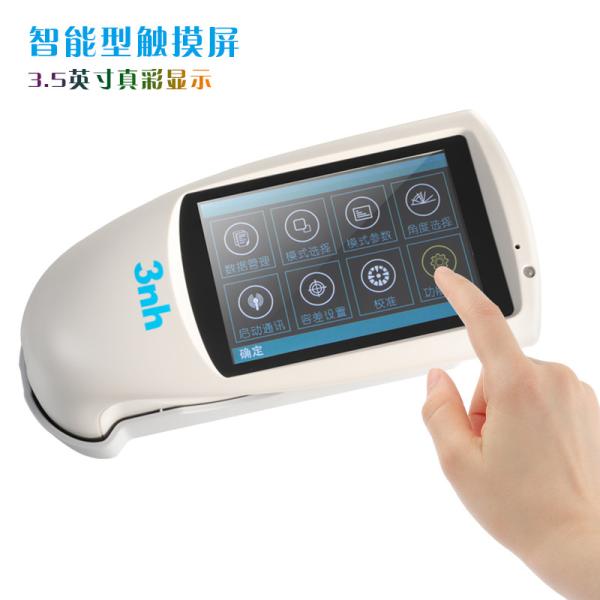

8. Large touch screen operation, easy to use

9. Beauty appearance, good man-machine communication interface

10. Powerful functions to meet many different requirements

11. Large storage to save over 5000 data

12. Built-in lithium ion rechargeable battery.

3nh NHG268 Gloss Meter 1-Year Warranty 220V Glossmeter

Specifications:

NHG268 Multi-angle Precise Gloss Meter

Model:

NHG268 tri angle gloss meter

Measuring Angle

20°/60°/85°
Comply with standard ISO 2813, GB/T 9754, ASTM D 523, ASTM D 2457

Measuring Area (mm)

20°: 10x10 60°: 9x15 85°: 5x36

Measuring Range

20°:0~2000GU 60°:0~1000GU 85°:0~160GU

Division Value

0.1GU

Measurement Range Repeatability Reproducibility

0-10GU 10-100GU 100-2000GU
± 0.1GU ± 0.2GU ± 0.2%GU
± 0.2GU ± 0.5GU ± 0.5%GU

Measurement Standard

Conform with JJG696 first class glossmeter working requirement

Chromaticity Corresponding

Corresponding with CIE 1931(2°) under CIE C light source

Errors

±1.2 , ± 1.2%

Measuring Time

1.0s

Dimension

L*W*H : 160mm*75mm*90mm

Weight

350g

Language

Chinese/English

Battery

3200mAh Li-ion Battery ,>10000 times(within 8 hours)

Display

TFT 3.5 inch, capacitive touch screen

Interface

USB/RS-232

Storage

Basic mode: 1000; Statistical Mode: 5000,Continuous mode : 5000

Software

GQC6 Quality Control Software with QC report printing functions and more extended functions.

Operation Temperature

0~40℃(32~104°F)

Storage Temperature

-20~50℃(-4~122°F)

Humidity

<85% relative humidity, no condensation

Standard Accessories

Power Adapter, USB cable, User Manual, CD (Including QC software), Calibration Plate

Optional Accessories

Miniature Printer

Note

The specifications are subject to change without notice.

3nh NHG268 Gloss Meter 1-Year Warranty 220V Glossmeter

Warranty:
3nh offer one year product warranty from the purchased date and lifetime maintenance (except consumables), in the absence of man-made damage and cases of force majeure.
3nh NHG268 Gloss Meter 1-Year Warranty 220V Glossmeter
Certificates:
3nh NHG268 Gloss Meter 1-Year Warranty 220V Glossmeter
Company Information

Guangdong Threenh Technology Co.,Ltd. and Shenzhen TILO Technology Co., Ltd. was found in 1998, and we are specializes in the R&D, production and sales of colorimeter, spectrophotometer, color density meter, gloss meter, color light box, color proof table, coating thickness gauge, iso test chart, etc., which is the leading producer in the color and glossy surface measurement field in China. We are also the national high technology enterprise.Till now we have received more than 20 patents and passed CE, ISO 9001, ROHS, FCC, TUV etc certifications.
