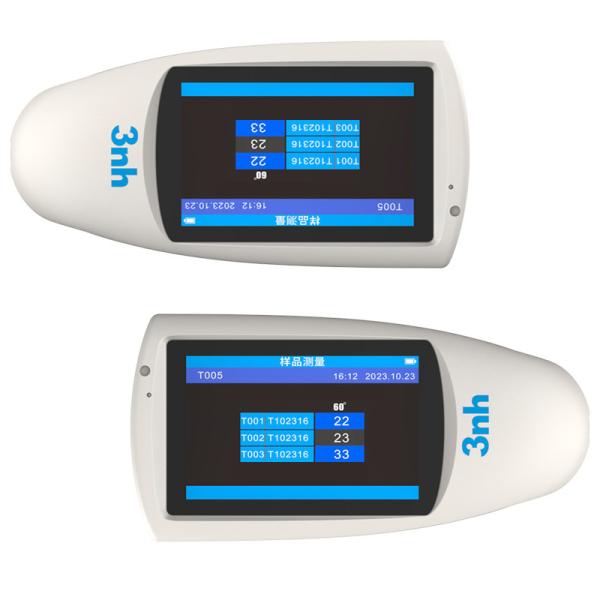

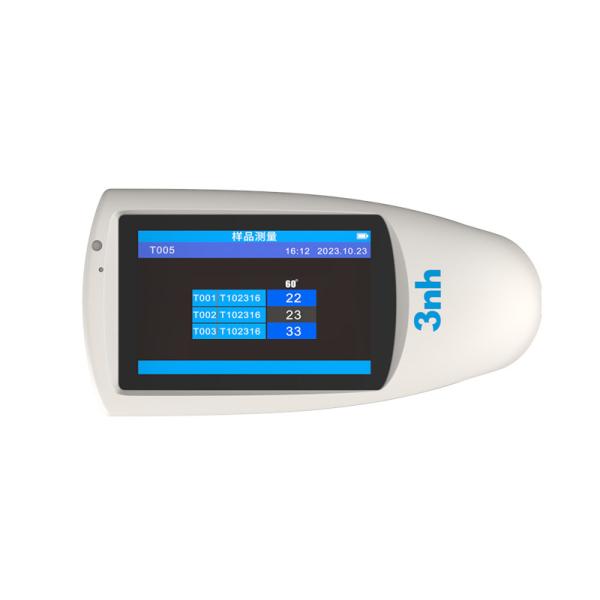

HG60S Economic Glossmeter | |
| |
Model: | HG60S cheap gloss meter |
Measuring Angle | 60°
Comply with standard ISO 2813, GB/T 9754, ASTM D 523, ASTM D 2457 |
Measuring Area (mm) | 9x15 |
Measuring Range | 0~200GU |
Division Value | 1GU |
Measurement Range
Repeatability
Reproducibility | 0-200GU ±1GU ± 1GU |
Measurement Standard | Conform with JJG696 first class glossmeter working requirement |
Chromaticity Corresponding | Corresponding with CIE 1931(2°) under CIE C light source |
Errors | ±1.5 , ± 1.5% |
Measuring Time | 0.5s |
Dimension | L*W*H : 160mm*75mm*90mm |
Weight | 350g |
Language | Chinese/English |
Battery | 3200mAh Li-ion Battery, >10000 times(within 8 hours) |
Display | TFT 3.5 inch |
Interface | USB/RS-232 |
Storage | Basic mode: 1000 |
Software | / |
Operation Temperature | 0~40℃（32~104°F） |
Storage Temperature | -20~50℃（-4~122°F） |
Humidity | <85% relative humidity, no condensation |
Standard Accessories | Power Adapter, USB cable, User Manual, Calibration Plate |
Optional Accessories | Miniature Printer |
Note | The specifications are subject to change without notice. |
Display Accuracy | 0.01 |
Measurement time | Approx. 1.5s |
Repeatability | Chromaticity value: MAV/SCI, ΔE*ab within 0.04 (When a white calibration plate is measured 30 times at 5 second intervals after
white calibration) |
Inter-instrument error | MAV/SCI, within ΔE*ab 0.35(Average for 12 BCRA Series II color tiles) |
Measurement method | Single measurement, average measurement (2~99 times) |
Locating method | Stabilizer locating |
Size | LxWxH=81X71X214mm |
Weight | About 460g |
Battery power | Lithium battery, 6000 times in 8 hours |
Illuminant life span | 5 years, more than 3 million times measurements |
Display | TFT true color 3.5inch, capacitive touch screen |
Data port | USB, Bluetooth® 5.0 |
Data storage | 500 standard samples, 1,0000 samples , APP mass storage |
Language | Simplified Chinese, English, Traditional Chinese |
Operating temperature range | 0~40℃, 0~85%RH (no condensation), altitude< 2000m |
Storage temperature range | -20~50℃, 0~85%RH (no condensation) |
Standard Accessories | Power adapter, data cable, manual, SQCX quality management software (official website download), black and white calibration box,
protective cover, wrist strap, single aperture: Ø8mm (optional Ø4mm) platform aperture, MOBCCS APP (official website download) |
Optional Accessories | USB micro printer, powder test box, Bluetooth micro printer,holder base |
Notes. | Technical parameters are for reference only, subject to the actual sales of products |
